DinverDCGui::RefractionViewer Class Reference

Brief description of class still missing. More...

#include <RefractionViewer.h>

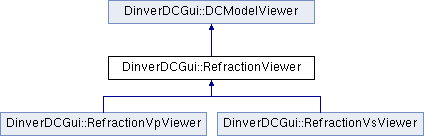

Inheritance diagram for DinverDCGui::RefractionViewer:

List of all members.

Public Member Functions
	RefractionViewer (QWidget *parent=0)
Protected Member Functions
virtual void	report2plot (DCReportBlock &dcBlock, Point2D **points, const DCModelInfo &info)
virtual void	setLimits (int i, const Rect &r)
virtual void	setSampleCount (DCModelInfo *info, DCReportBlock &dcBlock)
virtual void	setTitles (int i)
virtual AbstractLine *	targetReferenceLine () const
Protected Attributes
QVector< double >	_sources

---

Detailed Description

Brief description of class still missing.

Full description of class still missing

---

Constructor & Destructor Documentation

DinverDCGui::RefractionViewer::RefractionViewer

(

QWidget *

parent = 0

)

References DinverDCGui::DCModelViewer::addMenu(), DinverDCGui::DCModelViewer::showTarget(), QGpCoreTools::tr(), and TRACE.

    : DCModelViewer(parent)
{
  TRACE;
  // Tools menu
  QMenu * m;
  QAction * a;

  m=addMenu(tr( "&Tools" ));

  a=new QAction(tr( "Current target" ), this);
  a->setCheckable(true);
  a->setChecked(true);
  a->setStatusTip(tr( "Show/hide the current target onto the inverted refraction curves" ));
  connect(a, SIGNAL(toggled(bool)), this, SLOT(showTarget(bool)) );
  m->addAction(a);
}

---

Member Function Documentation

void DinverDCGui::RefractionViewer::report2plot	(	DCReportBlock &	dcBlock,
		Point2D **	points,
		const DCModelInfo &	info
	)		[protected, virtual]

Implements DinverDCGui::DCModelViewer.

References DinverDCGui::DCModelViewer::_nGraphs, _sources, DinverDCCore::DCModelInfo::offset(), QGpCoreWave::RefractionFactory::readReport(), QGpCoreWave::RefractionFactory::receiverCount(), QGpCoreWave::RefractionFactory::receivers(), QGpCoreTools::Point2D::setX(), QGpCoreTools::Point2D::setY(), QGpCoreWave::RefractionFactory::source(), QGpCoreWave::RefractionFactory::sources(), DinverDCCore::DCReportBlock::stream(), and TRACE.

{
  TRACE;
  RefractionFactory f;
  f.readReport(dcBlock.stream());
  if(_sources.isEmpty()) {
    _sources=f.sources();
  }
  const QVector<double>& xRec=f.receivers();
  int n=_nGraphs;
  if(n>_sources.count()) n=_sources.count();
  for(int iSrc=0; iSrc < n; iSrc++ ) {
    Point2D * srcPoints=points[iSrc]+info.offset(iSrc);
    const RealValue * values=f.source(iSrc);
    for(int iRec=0; iRec < f.receiverCount(); iRec++ ) {
      Point2D& p=srcPoints[iRec];
      p.setX(xRec[iRec] );
      p.setY(values[iRec].value());
    }
  }
}

void DinverDCGui::RefractionViewer::setLimits	(	int	i,
		const Rect &	r
	)		[protected, virtual]

Implements DinverDCGui::DCModelViewer.

References DinverDCGui::DCModelViewer::_graphs, SciFigs::Axis::setRange(), TRACE, QGpCoreTools::Rect::x1(), QGpCoreTools::Rect::x2(), SciFigs::AxisWindow::xAxis(), QGpCoreTools::Rect::y2(), and SciFigs::AxisWindow::yAxis().

{
  TRACE;
  _graphs[ i ] ->xAxis()->setRange(r.x1() * 0.95, r.x2() * 1.05);
  _graphs[ i ] ->yAxis()->setRange(0.0, r.y2() * 1.05);
}

void DinverDCGui::RefractionViewer::setSampleCount	(	DCModelInfo *	info,
		DCReportBlock &	dcBlock
	)		[protected, virtual]

Implements DinverDCGui::DCModelViewer.

References DinverDCGui::DCModelViewer::_nGraphs, DinverDCCore::DCModelInfo::setSampleCount(), DinverDCCore::DCReportBlock::stream(), and TRACE.

{
  TRACE;
  // Read number of sources and receivers
  int nSrc, nRec;
  dcBlock.stream() >> nSrc >> nRec;
  if(nSrc>_nGraphs) nSrc=_nGraphs;
  int i;
  for(i=0;i<nSrc;i++) {
    info->setSampleCount(i,nRec);
  }
  for(;i<_nGraphs;i++) info->setSampleCount(i,0);
}

void DinverDCGui::RefractionViewer::setTitles

(

int

i

)

[protected, virtual]

Implements DinverDCGui::DCModelViewer.

References DinverDCGui::DCModelViewer::_graphs, SciFigs::GraphicObject::setObjectName(), SciFigs::Axis::setTitle(), SciFigs::Axis::setTitleInversedScale(), SciFigs::Axis::setUnitFactor(), QGpCoreTools::tr(), TRACE, w, SciFigs::AxisWindow::xAxis(), and SciFigs::AxisWindow::yAxis().

{
  TRACE;
  AxisWindow * w=_graphs[i];
  w->yAxis()->setTitle(tr("Time (ms)"));
  w->yAxis()->setTitleInversedScale( "" );
  w->yAxis()->setUnitFactor(1000.0);
  w->xAxis()->setTitle(tr("Distance (m)"));
  w->xAxis()->setTitleInversedScale( "" );
  w->setObjectName(QString("refra_%1").arg(i));
}

AbstractLine * DinverDCGui::RefractionViewer::targetReferenceLine

(

)

const [protected, virtual]

Implements DinverDCGui::DCModelViewer.

References SciFigs::AbstractLine::setPen(), SciFigs::AbstractLine::setSymbol(), and TRACE.

{
  TRACE;
  RefractionLine * line=new RefractionLine;
  line->setPen(Pen( Qt::black, 0.6) );
  line->setSymbol(Symbol( Symbol::Circle, 1.2, Pen(Qt::black, 0.0),
                              Brush(Qt::black, Qt::SolidPattern) ));
  return line;
}

---

Member Data Documentation

QVector<double> DinverDCGui::RefractionViewer::_sources [protected]

Referenced by report2plot(), DinverDCGui::RefractionVpViewer::setTarget(), and DinverDCGui::RefractionVsViewer::setTarget().

---

The documentation for this class was generated from the following files:

• DinverDCGui/RefractionViewer.h
• DinverDCGui/RefractionViewer.cpp
