Brief description of class still missing. More...

#include <MiniSeedRecords.h>

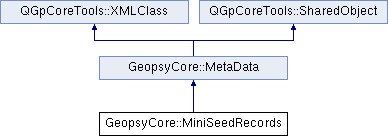

Inheritance diagram for GeopsyCore::MiniSeedRecords:

Public Member Functions
void	add (off_t pos, quint32 byteLength)
virtual MetaData *	clone () const
virtual const MetaData *	defaultValue () const
virtual bool	fromString (const QString &, QString string)
virtual int	id () const
	MiniSeedRecords ()
	MiniSeedRecords (const MiniSeedRecords &o)
bool	record (int sequenceIndex, int recordIndex, off_t &pos, quint32 &byteLength) const
int	recordCount (int sequenceIndex) const
int	sequenceCount () const
virtual void	setId (int id) const
virtual bool	storeAsXML () const
virtual const QString &	xml_tagName () const
Static Public Member Functions
static int	staticId ()
Static Public Attributes
static const QString	xmlMiniSeedRecordsTag = "MiniSeedRecords"
Protected Member Functions
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual bool	xml_setProperty (XML_SETPROPERTY_ARGS)
virtual void	xml_writeChildren (XML_WRITECHILDREN_ARGS) const

Detailed Description

Brief description of class still missing.

A compact storage for Mini Seed records.

The storage is built with add() in MiniSeedTrace::records().

The order of calls to add() must follow the chronology of the signal samples.

Constructor & Destructor Documentation

GeopsyCore::MiniSeedRecords::MiniSeedRecords ( ) [inline]

Referenced by clone().

{}

GeopsyCore::MiniSeedRecords::MiniSeedRecords ( const MiniSeedRecords & o ) [inline]

: MetaData(o), _records(o._records) {}

Member Function Documentation

void GeopsyCore::MiniSeedRecords::add	(	off_t	pos,
		quint32	byteLength
	)

References GeopsyCore::MiniSeedSequence::setByteLength(), and GeopsyCore::MiniSeedSequence::setFirstPos().

Referenced by fromString(), and GeopsyCore::MiniSeedTrace::records().

  {
    if(_records.isEmpty() ||
       !_records.last().add(pos, byteLength)) {
      _records.resize(_records.size()+1);
      MiniSeedSequence& r=_records.last();
      r.setFirstPos(pos);
      r.setByteLength(byteLength);
    }
  }

virtual MetaData* GeopsyCore::MiniSeedRecords::clone ( ) const [inline, virtual]

Implements GeopsyCore::MetaData.

References MiniSeedRecords().

{return new MiniSeedRecords(*this);}

virtual const MetaData* GeopsyCore::MiniSeedRecords::defaultValue ( ) const [inline, virtual]

Implements GeopsyCore::MetaData.

{return &_defaultValue;}

bool GeopsyCore::MiniSeedRecords::fromString	(	const QString &	,
		QString	string
	)		`[virtual]`

Kept for compatibility with past releases

Reimplemented from GeopsyCore::MetaData.

References add(), QGpCoreTools::StringSection::isValid(), QGpCoreTools::StringSection::nextField(), QGpCoreTools::StringSection::toInt(), and TRACE.

Referenced by xml_setProperty().

  {
    TRACE;
    _records.clear();
    StringSection valSection(string);
    StringSection field;
    const QChar * ptr=0;
    off_t pos;
    quint32 byteLength;
    while(true) {
      field=valSection.nextField(ptr, "," );
      if(!field.isValid()) return false;
      pos=field.toInt();
      field=valSection.nextField(ptr, "," );
      if(!field.isValid()) return false;
      byteLength=field.toInt();
      add(pos, byteLength);
    }
    return true;
  }

virtual int GeopsyCore::MiniSeedRecords::id ( ) const [inline, virtual]

Implements GeopsyCore::MetaData.

Referenced by setId().

{return _id;}

bool GeopsyCore::MiniSeedRecords::record	(	int	sequenceIndex,
		int	recordIndex,
		off_t &	pos,
		quint32 &	byteLength
	)		const

References GeopsyCore::MiniSeedSequence::byteLength(), GeopsyCore::MiniSeedSequence::count(), and GeopsyCore::MiniSeedSequence::pos().

Referenced by GeopsyCore::MiniSeedReader::lastPos(), and GeopsyCore::MiniSeedReader::nextRecord().

  {
    const MiniSeedSequence& r=_records.at(sequenceIndex);
    if(recordIndex<r.count()) {
      pos=r.pos(recordIndex);
      byteLength=r.byteLength();
      return true;
    } else {
      return false;
    }
  }

int GeopsyCore::MiniSeedRecords::recordCount ( int sequenceIndex ) const [inline]

Referenced by GeopsyCore::MiniSeedReader::atEnd().

{return _records.at(sequenceIndex).count();}

int GeopsyCore::MiniSeedRecords::sequenceCount ( ) const [inline]

Referenced by GeopsyCore::MiniSeedReader::atEnd(), and GeopsyCore::MiniSeedReader::nextRecord().

{return _records.count();}

virtual void GeopsyCore::MiniSeedRecords::setId ( int id ) const [inline, virtual]

Implements GeopsyCore::MetaData.

References id().

{_id=id;}

static int GeopsyCore::MiniSeedRecords::staticId ( ) [inline, static]

Referenced by GeopsyCore::Signal::miniSeedRecords(), and GeopsyCore::Signal::setMiniSeedRecords().

{return _id;}

virtual bool GeopsyCore::MiniSeedRecords::storeAsXML ( ) const [inline, virtual]

Reimplemented from GeopsyCore::MetaData.

{return true;}

XMLMember GeopsyCore::MiniSeedRecords::xml_member ( XML_MEMBER_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

An integer: id number of a property
A XMLClass * : a child of this object identified by tag
Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from QGpCoreTools::XMLClass.

References TRACE, and GeopsyCore::MiniSeedSequence::xmlMiniSeedSequenceTag.

  {
    TRACE;
    Q_UNUSED(attributes);
    Q_UNUSED(context);
    if(tag==MiniSeedSequence::xmlMiniSeedSequenceTag) {
      _records.append(MiniSeedSequence());
      return XMLMember(&_records.last());
    } else return XMLMember(this, false); // Kept for compatibility, setProperty() will be called
  }

bool GeopsyCore::MiniSeedRecords::xml_setProperty ( XML_SETPROPERTY_ARGS ) [protected, virtual]

Kept for compatibility with past releases

Reimplemented from QGpCoreTools::XMLClass.

References fromString(), and TRACE.

  {
    TRACE;
    Q_UNUSED(memberID);
    Q_UNUSED(tag);
    Q_UNUSED(attributes);
    Q_UNUSED(context);
    return fromString(0, content.toString());
  }

virtual const QString& GeopsyCore::MiniSeedRecords::xml_tagName ( ) const [inline, virtual]

Implements QGpCoreTools::XMLClass.

References xmlMiniSeedRecordsTag.

{return xmlMiniSeedRecordsTag;}

void GeopsyCore::MiniSeedRecords::xml_writeChildren ( XML_WRITECHILDREN_ARGS ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References TRACE, QGpCoreTools::XMLClass::writeProperty(), and GeopsyCore::MiniSeedSequence::xmlMiniSeedSequenceTag.

  {
    TRACE;

    for(QVector<MiniSeedSequence>::const_iterator it=_records.begin(); it!=_records.end(); it++ ) {
      XMLSaveAttributes attributes;
      it->xml_attributes(attributes, context);
      writeProperty(s, MiniSeedSequence::xmlMiniSeedSequenceTag, attributes);
    }
  }

Member Data Documentation

const QString GeopsyCore::MiniSeedRecords::xmlMiniSeedRecordsTag = "MiniSeedRecords" [static]

Referenced by xml_tagName().

The documentation for this class was generated from the following files:

GeopsyCore/MiniSeedRecords.h
GeopsyCore/MiniSeedRecords.cpp
