QGpGuiWave::DispersionLimitLayer Class Reference

Brief description of class still missing. More...

#include <DispersionLimitLayer.h>

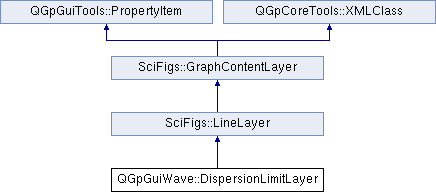

Inheritance diagram for QGpGuiWave::DispersionLimitLayer:

List of all members.

Public Slots
void	setArrayKmax (double k)
void	setArrayKmin (double k)
Public Member Functions
void	addArrayLimits ()
	DispersionLimitLayer (AxisWindow *parent)
void	setConstantWaveNumber (int curveIndex, double k)
void	setFrequencySampling (const SamplingParameters &fparam)
	~DispersionLimitLayer ()

---

Detailed Description

Brief description of class still missing.

Full description of class still missing

---

Constructor & Destructor Documentation

QGpGuiWave::DispersionLimitLayer::DispersionLimitLayer

(

AxisWindow *

parent

)

Description of constructor still missing

References SciFigs::AbstractLine::setPen(), SciFigs::LineLayer::setReferenceLine(), SciFigs::AbstractLine::setSymbol(), and TRACE.

    : LineLayer(parent)
{
  TRACE;
  PlotLine * l=new PlotLine;
  l->setPen(Pen( Qt::black, 0.3, Qt::SolidLine) );
  l->setSymbol(Symbol());
  setReferenceLine(l);
}

QGpGuiWave::DispersionLimitLayer::~DispersionLimitLayer

(

)

Description of destructor still missing

References TRACE.

{
  TRACE;
}

---

Member Function Documentation

void QGpGuiWave::DispersionLimitLayer::addArrayLimits

(

)

References SciFigs::LineLayer::addLine().

Referenced by ArrayGui::ArrayResponse::createObjects().

{
  addLine();
  addLine(Pen(Qt::black, 0.3, Qt::DotLine), Symbol());
  addLine(Pen(Qt::black, 0.3, Qt::DotLine), Symbol());
  addLine(Pen(Qt::black, 0.3, Qt::DashLine), Symbol());
}

void QGpGuiWave::DispersionLimitLayer::setArrayKmax

(

double

k

)

[slot]

References setConstantWaveNumber().

{
  setConstantWaveNumber(2, 0.5*k);
  setConstantWaveNumber(3, k);
}

void QGpGuiWave::DispersionLimitLayer::setArrayKmin

(

double

k

)

[slot]

References setConstantWaveNumber().

{
  setConstantWaveNumber(0, 0.5*k);
  setConstantWaveNumber(1, k);
}

void QGpGuiWave::DispersionLimitLayer::setConstantWaveNumber	(	int	curveIndex,
		double	k
	)

References QGpCoreTools::Curve< pointType >::count(), SciFigs::GraphContentLayer::deepUpdate(), and TRACE.

Referenced by setArrayKmax(), and setArrayKmin().

{
  TRACE;
  LayerLocker ll(this);
  Curve<Point>& c=curve(curveIndex);
  double invWavelength=k/(2*M_PI);
  for(int i=0; i<c.count(); i++) {
    c[i].setY(invWavelength/c[i].x());
  }
  deepUpdate();
}

void QGpGuiWave::DispersionLimitLayer::setFrequencySampling

(

const SamplingParameters &

fparam

)

References QGpCoreTools::Curve< pointType >::append(), QGpCoreTools::Curve< pointType >::clear(), QGpCoreTools::SamplingParameters::count(), SciFigs::LineLayer::count(), QGpCoreTools::Point2D::setX(), TRACE, and QGpCoreTools::SamplingParameters::value().

Referenced by ArrayGui::ArrayResponse::setFrequencySampling().

{
  TRACE;
  Point fcurve;
  for(int ic=count()-1; ic>=0; ic--) {
    Curve<Point>& c=curve(ic);
    c.clear();
    for(int i=0; i<fparam.count(); i++) {
      fcurve.setX(fparam.value(i));
      c.append(fcurve);
    }
  }
}

---

The documentation for this class was generated from the following files:

• QGpGuiWave/DispersionLimitLayer.h
• QGpGuiWave/DispersionLimitLayer.cpp
