SciFigs::AbstractNameLine Class Reference

Brief description of class still missing Abstract line with points and names. More...

#include <AbstractNameLine.h>

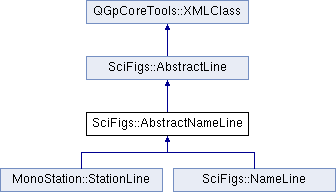

Inheritance diagram for SciFigs::AbstractNameLine:

List of all members.

Public Member Functions
	AbstractNameLine ()
virtual bool	fromString (int index, const StringSection &str, const QChar *&ptr, const CurvePointOptions *)
virtual QString	name (int index) const =0
void	operator= (const AbstractNameLine &o)
virtual void	setName (int index, QString n)=0
void	setTextColor (const QColor &c)
void	setTextDx (double dx)
void	setTextDy (double dy)
void	setTextOrientation (double orientation)
QColor	textColor () const
double	textDx () const
double	textDy () const
double	textOrientation () const
virtual QString	toString (int index, const CurvePointOptions *options) const
virtual const QString &	xml_tagName () const
Static Public Attributes
static const QString	xmlAbstractNameLineTag = "NameLine"
Protected Member Functions
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual bool	xml_setProperty (XML_SETPROPERTY_ARGS)
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const
Protected Attributes
QColor	_textColor
double	_textDx
double	_textDy
double	_textOrientation

---

Detailed Description

Brief description of class still missing Abstract line with points and names.

---

Constructor & Destructor Documentation

SciFigs::AbstractNameLine::AbstractNameLine

(

)

[inline]

{_textDx=0.0; _textDy=0.01; _textOrientation=0.0;}

---

Member Function Documentation

bool SciFigs::AbstractNameLine::fromString	(	int	index,
		const StringSection &	str,
		const QChar *&	ptr,
		const CurvePointOptions *	options
	)		[virtual]

Reimplemented from SciFigs::AbstractLine.

References QGpCoreTools::StringSection::isValid(), QGpCoreTools::StringSection::nextField(), setName(), SciFigs::AbstractLine::setX(), SciFigs::AbstractLine::setY(), SciFigs::AbstractLine::setZ(), QGpCoreTools::StringSection::toDouble(), QGpCoreTools::StringSection::toString(), and TRACE.

Referenced by xml_setProperty().

{
  TRACE;
  bool ok=true;
  StringSection f;
  f=str.nextField(ptr);
  if(f.isValid()) {
    setX(index, f.toDouble(&ok));
    if(!ok) return false;
  } else {
    return false;
  }
  f=str.nextField(ptr);
  if(f.isValid()) {
    setY(index, f.toDouble(&ok), options);
    if(!ok) return false;
  } else {
    return false;
  }
  const QChar * oldPtr=ptr;
  f=str.nextField(ptr);
  if(f.isValid()) {
    double z=f.toDouble(&ok);
    if(ok) { // Z is optional
      setZ(index, z, options);
      oldPtr=ptr;
    } else {
      setZ(index, 0.0, options);
      ptr=oldPtr;
    }
    f=str.nextField(ptr, "\r\n", false);
    if(f.isValid()) {
      setName(index, f.toString());
    } else {
      setName(index, QString::null);
      ptr=oldPtr;
    }
  } else { // Z and Name are optional
    setZ(index, 0.0, options);
    setName(index, QString::null);
    ptr=oldPtr;
  }
  return true;
}

virtual QString SciFigs::AbstractNameLine::name

(

int

index

)

const [pure virtual]

Implemented in SciFigs::NameLine, and MonoStation::StationLine.

Referenced by SciFigs::NameLineLayer::paintText(), and toString().

void SciFigs::AbstractNameLine::operator=

(

const AbstractNameLine &

o

)

References _textColor, _textDx, _textDy, and _textOrientation.

{
  _textColor=o._textColor;
  _textDx=o._textDx;
  _textDy=o._textDy;
  _textOrientation=o._textOrientation;
  AbstractLine::operator=(o);
}

virtual void SciFigs::AbstractNameLine::setName	(	int	index,
		QString	n
	)		[pure virtual]

Implemented in MonoStation::StationLine, and SciFigs::NameLine.

Referenced by fromString().

void SciFigs::AbstractNameLine::setTextColor

(

const QColor &

c

)

[inline]

Referenced by MonoStation::AbstractSummary::setBubbleValues(), and SciFigs::NameLineLayer::setLegend().

{_textColor=c;}

void SciFigs::AbstractNameLine::setTextDx

(

double

dx

)

[inline]

Referenced by SciFigs::NameLineItem::setData().

{_textDx=dx;}

void SciFigs::AbstractNameLine::setTextDy

(

double

dy

)

[inline]

Referenced by SciFigs::NameLineItem::setData().

{_textDy=dy;}

void SciFigs::AbstractNameLine::setTextOrientation

(

double

orientation

)

[inline]

Referenced by SciFigs::NameLineItem::setData().

{_textOrientation=orientation;}

QColor SciFigs::AbstractNameLine::textColor

(

)

const [inline]

Referenced by SciFigs::NameLineLayer::legend(), and SciFigs::NameLineLayer::paintData().

{return _textColor;}

double SciFigs::AbstractNameLine::textDx

(

)

const [inline]

Referenced by SciFigs::NameLineItem::data(), and SciFigs::NameLineLayer::paintData().

{return _textDx;}

double SciFigs::AbstractNameLine::textDy

(

)

const [inline]

Referenced by SciFigs::NameLineItem::data(), and SciFigs::NameLineLayer::paintData().

{return _textDy;}

double SciFigs::AbstractNameLine::textOrientation

(

)

const [inline]

Referenced by SciFigs::NameLineItem::data(), and SciFigs::NameLineLayer::paintData().

{return _textOrientation;}

QString SciFigs::AbstractNameLine::toString	(	int	index,
		const CurvePointOptions *	options
	)		const [virtual]

Reimplemented from SciFigs::AbstractLine.

Reimplemented in SciFigs::NameLine.

References name(), SciFigs::AbstractLine::point(), QGpCoreTools::NamedPoint::setName(), QGpCoreTools::NamedPoint::toString(), and TRACE.

{
  TRACE;
  NamedPoint p=point(index, options);
  p.setName(name(index));
  return p.toString(20);
}

XMLMember SciFigs::AbstractNameLine::xml_member

(

XML_MEMBER_ARGS

)

[protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

• An integer: id number of a property
• A XMLClass * : a child of this object identified by tag
• Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from SciFigs::AbstractLine.

References SciFigs::XMLSciFigs::data(), SciFigs::XMLSciFigs::makeUp(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<LineLayerContext *>(context)->parent();
  if(scifigsContext->data()) {
    if(tag=="points") return XMLMember(0);
  }
  if(scifigsContext->makeUp()) {
    if(tag=="dx") return XMLMember(1);
    else if(tag=="dy") return XMLMember(2);
    else if(tag=="orientation") return XMLMember(3);
    else if(tag=="color") return XMLMember(4);
  }
  return AbstractLine::xml_member(tag, attributes, context)+5;
}

bool SciFigs::AbstractNameLine::xml_setProperty

(

XML_SETPROPERTY_ARGS

)

[protected, virtual]

Re-implement this function to offer XML restore properties support to your class.

From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).

For a general case:

  Q_UNUSED(attributes);
  double val=content.toDouble();
  switch (memberID) {
  case 0:
    _x1=val;
    return true;
  case 1:
    _y1=val;
    return true;
  case 2:
    _x2=val;
    return true;
  case 3:
    _y2=val;
    return true;
  default:
    return false;
  }

For classes inheriting other classes (see also xml_member())

  switch (memberID) {
  case 0:
    _anInteger=content.toString();
    return true;
  case 1:
    _aString=content.toInt();
    return true;
  case 2:
    _aDouble=content.toDouble();
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-3, map, content);

For the arguments of this function use Macro XML_SETPROPERTY_ARGS.

Reimplemented from SciFigs::AbstractLine.

References _textColor, _textDx, _textDy, _textOrientation, SciFigs::AbstractLine::append(), SciFigs::AbstractLine::clear(), fromString(), SciFigs::LineLayerContext::options(), SciFigs::AbstractLine::removeLast(), and TRACE.

{
  TRACE;
  Q_UNUSED(tag);
  LineLayerContext * lineContext=static_cast<LineLayerContext *>(context);
  switch (memberID) {
  case 0: {
      const QChar * ptr=0;
      clear();
      int i=0;
      while(true) {
        append();
        if(!content.nextLine(ptr)) break;
        if(!fromString(i, content, ptr, lineContext->options())) break;
        i++;
      }
      removeLast();
    }
    return true;
  case 1:
    _textDx=content.toDouble();
    return true;
  case 2:
    _textDy=content.toDouble();
    return true;
  case 3:
    _textOrientation=content.toDouble();
    return true;
  case 4: {
      QColor col(content.toString());
      _textColor=col;
      return true;
    }
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-5, tag, attributes, content, context);
  }
}

virtual const QString& SciFigs::AbstractNameLine::xml_tagName

(

)

const [inline, virtual]

Reimplemented from SciFigs::AbstractLine.

Reimplemented in MonoStation::StationLine, and SciFigs::NameLine.

{return xmlAbstractNameLineTag;}

void SciFigs::AbstractNameLine::xml_writeProperties

(

XML_WRITEPROPERTIES_ARGS

)

const [protected, virtual]

Reimplemented from SciFigs::AbstractLine.

References _textColor, _textDx, _textDy, _textOrientation, SciFigs::XMLSciFigs::makeUp(), TRACE, and QGpCoreTools::XMLClass::writeProperty().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<LineLayerContext *>(context)->parent();
  if(scifigsContext->makeUp()) {
    writeProperty(s, "color",_textColor.name());
    writeProperty(s, "dx",_textDx);
    writeProperty(s, "dy",_textDy);
    writeProperty(s, "orientation",_textOrientation);
  }
  AbstractLine::xml_writeProperties(s, context);
}

---

Member Data Documentation

QColor SciFigs::AbstractNameLine::_textColor [protected]

Referenced by operator=(), xml_setProperty(), and xml_writeProperties().

double SciFigs::AbstractNameLine::_textDx [protected]

Referenced by operator=(), xml_setProperty(), and xml_writeProperties().

double SciFigs::AbstractNameLine::_textDy [protected]

Referenced by operator=(), xml_setProperty(), and xml_writeProperties().

double SciFigs::AbstractNameLine::_textOrientation [protected]

Referenced by operator=(), xml_setProperty(), and xml_writeProperties().

const QString SciFigs::AbstractNameLine::xmlAbstractNameLineTag = "NameLine" [static]

---

The documentation for this class was generated from the following files:

• SciFigs/AbstractNameLine.h
• SciFigs/AbstractNameLine.cpp
