SciFigs::CircleViewer Class Reference

A CircleViewer is a layer to plot colored ellipses. More...

#include <CircleViewer.h>

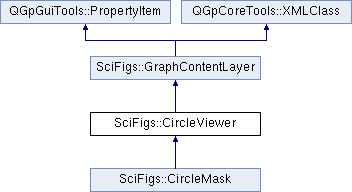

Inheritance diagram for SciFigs::CircleViewer:

List of all members.

Classes
class	Item
class	Limits
Public Slots
void	add (double x, double y, double a, double b, double phi, QColor col)
bool	add (const QString &line)
void	insert (int index, double x, double y, double a, double b, double phi, QColor col)
void	remove (int index)
void	set (int index, double x, double y, double a, double b, double phi, QColor col)
Public Member Functions
virtual Rect	boundingRect () const
	CircleViewer (AxisWindow *parent=0)
void	clear ()
int	count () const
double	lineWeight () const
virtual void	paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const
void	resize (int n)
void	setLineWeight (double lw)
virtual const QString &	xml_tagName () const
Static Public Attributes
static const QString	xmlCircleViewerTag = "CircleViewer"
Protected Member Functions
XMLMember	xml_member (XML_MEMBER_ARGS)
bool	xml_setProperty (XML_SETPROPERTY_ARGS)
void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const
Protected Attributes
QVector< Item >	_items
double	_lineWeight
Properties
double	lineWeight

---

Detailed Description

A CircleViewer is a layer to plot colored ellipses.

---

Constructor & Destructor Documentation

SciFigs::CircleViewer::CircleViewer

(

AxisWindow *

parent = 0

)

References _lineWeight, and TRACE.

                                                :
      GraphContentLayer(parent)
  {
    TRACE;
    _lineWeight=0.05;
  }

---

Member Function Documentation

void SciFigs::CircleViewer::add	(	double	x,
		double	y,
		double	a,
		double	b,
		double	phi,
		QColor	col
	)		[slot]

References SciFigs::CircleViewer::Item::_color, SciFigs::CircleViewer::Item::_ellipse, _items, QGpCoreTools::Ellipse::setCenter(), QGpCoreTools::Ellipse::setMajorRadius(), QGpCoreTools::Ellipse::setMinorRadius(), QGpCoreTools::Ellipse::setOrientation(), and TRACE.

Referenced by add(), SciFigs::CircleMask::CircleMask(), createCircles(), Simulator::on_addSource_clicked(), and xml_setProperty().

  {
    TRACE;
    Item item;
    Ellipse& ell=item._ellipse;
    ell.setCenter(Point2D(x, y));
    ell.setMajorRadius(a);
    ell.setMinorRadius(b);
    ell.setOrientation(phi);
    item._color=col;
    LayerLocker ll(this);
    _items.push_back(item);
  }

bool SciFigs::CircleViewer::add

(

const QString &

line

)

[slot]

Add a circle from the text contained in Line

3 x y rx black circle 4 x y rx ry black ellipse 5 x y rx ry rot black rotated ellipse 6 x y rx r g b colored circle 7 x y rx ry r g b colored ellipse 8 x y rx ry rot r g b colored rotated ellipse

References add(), count(), QGpCoreTools::LineParser::count(), QGpCoreTools::endl(), QGpCoreTools::LineParser::toDouble(), QGpCoreTools::LineParser::toInt(), QGpCoreTools::tr(), and TRACE.

  {
    TRACE;
    LineParser parser(line);
    bool ok=true;
    switch(parser.count()) {
    case 0: // Ignore blank lines positively
      return true;
    case 3: {
        double r=parser.toDouble(2, ok);
        add(parser.toDouble(0, ok), parser.toDouble(1, ok), r, r, 0.0, Qt::black);
      }
      return ok;
    case 4:
      add(parser.toDouble(0, ok), parser.toDouble(1, ok),
          parser.toDouble(2, ok), parser.toDouble(3, ok), 0.0, Qt::black);
      return ok;
    case 5:
      add(parser.toDouble(0, ok), parser.toDouble(1, ok),
          parser.toDouble(2, ok), parser.toDouble(3, ok), parser.toDouble(4, ok)/180.0*M_PI,Qt::black);
      return ok;
    case 6: {
        double r=parser.toDouble(2, ok);
        QColor c;
        c.setRgb(parser.toInt(3, ok),
                 parser.toInt(4, ok),
                 parser.toInt(5, ok));
        add(parser.toDouble(0, ok), parser.toDouble(1, ok), r, r, 0.0, c);
      }
      return ok;
    case 7: {
        QColor c;
        c.setRgb(parser.toInt(4, ok),
                 parser.toInt(5, ok),
                 parser.toInt(6, ok));
        add(parser.toDouble(0, ok), parser.toDouble(1, ok),
            parser.toDouble(2, ok), parser.toDouble(3, ok), 0.0, c);
      }
      return ok;
    case 8: {
        QColor c;
        c.setRgb(parser.toInt(5, ok),
                 parser.toInt(6, ok),
                 parser.toInt(7, ok));
        add(parser.toDouble(0, ok), parser.toDouble(1, ok),
            parser.toDouble(2, ok), parser.toDouble(3, ok), parser.toDouble(4, ok)/180.0*M_PI, c);
      }
      return ok;
    default:
      App::stream() << tr("Error parsing circle (%1 already added): %2 columns encountered instead of 3, 4, 6 or 7.\n"
                          "\"%3\"").arg(count()).arg(parser.count()).arg(line) << endl;
      return false;
    }
  }

Rect SciFigs::CircleViewer::boundingRect

(

)

const [virtual]

Implements SciFigs::GraphContentLayer.

Reimplemented in SciFigs::CircleMask.

References _items, QGpCoreTools::Rect::add(), QGpCoreTools::Ellipse::center(), QGpCoreTools::Rect::setLimits(), TRACE, QGpCoreTools::Point2D::x(), QGpCoreTools::Ellipse::xRadius(), QGpCoreTools::Point2D::y(), and QGpCoreTools::Ellipse::yRadius().

  {
    TRACE;
    Rect r;
    if(_items.count()>0) {
      const Ellipse& ell=_items[0]._ellipse;
      const Point2D& c=ell.center();
      double xRadius=ell.xRadius();
      double yRadius=ell.yRadius();
      r.setLimits(c.x()-xRadius, c.y()-yRadius, c.x()+xRadius, c.y()+yRadius);
      for(int i=1; i<_items.count(); i++) {
        const Ellipse& ell=_items[i]._ellipse;
        const Point2D& c=ell.center();
        r.add(c.x()-xRadius, c.y()-yRadius);
        r.add(c.x()+xRadius, c.y()+yRadius);
      }
    }
    return r;
  }

void SciFigs::CircleViewer::clear

(

)

References _items, and TRACE.

  {
    TRACE;
    LayerLocker ll(this);
    _items.clear();
  }

int SciFigs::CircleViewer::count

(

)

const [inline]

Referenced by add(), createCircles(), and xml_setProperty().

{return _items.count();}

void SciFigs::CircleViewer::insert	(	int	index,
		double	x,
		double	y,
		double	a,
		double	b,
		double	phi,
		QColor	col
	)		[slot]

References SciFigs::CircleViewer::Item::_color, SciFigs::CircleViewer::Item::_ellipse, _items, QGpCoreTools::Ellipse::setCenter(), QGpCoreTools::Ellipse::setMajorRadius(), QGpCoreTools::Ellipse::setMinorRadius(), QGpCoreTools::Ellipse::setOrientation(), and TRACE.

  {
    TRACE;
    Item item;
    Ellipse& ell=item._ellipse;
    ell.setCenter(Point2D(x, y));
    ell.setMajorRadius(a);
    ell.setMinorRadius(b);
    ell.setOrientation(phi);
    item._color=col;
    LayerLocker ll(this);
    _items.insert(index, item);
  }

double SciFigs::CircleViewer::lineWeight

(

)

const [inline]

Referenced by paintData().

{return _lineWeight;}

void SciFigs::CircleViewer::paintData	(	const LayerPainterRequest &	lp,
		QPainter &	p,
		double	dotpercm
	)		const [virtual]

Implements SciFigs::GraphContentLayer.

Reimplemented in SciFigs::CircleMask.

References SciFigs::CircleViewer::Item::_color, SciFigs::CircleViewer::Item::_ellipse, _items, _lineWeight, QGpCoreTools::abs(), SciFigs::GraphContentOptions::ax(), SciFigs::GraphContentOptions::ay(), QGpCoreTools::Ellipse::center(), QGpCoreTools::Angle::degrees(), QGpCoreTools::Angle::isNull(), lineWeight(), QGpCoreTools::Ellipse::majorRadius(), QGpCoreTools::Ellipse::minorRadius(), SciFigs::LayerPainterRequest::options(), QGpCoreTools::Ellipse::orientation(), SciFigs::CircleViewer::Limits::polarLimits(), SciFigs::LayerPainterRequest::terminated(), TRACE, QGpCoreTools::Point2D::x(), SciFigs::GraphContentOptions::xr2s(), QGpCoreTools::Point2D::y(), and SciFigs::GraphContentOptions::yr2s().

  {
    TRACE;
    const GraphContentOptions& gc=lp.options();
    Limits limits(gc);
    double startPhi, stopPhi;
    int lineWeight=(int)floor(_lineWeight*dotpercm+0.5);
    if(lineWeight<1) {
      lineWeight=1;
    }
    for(int i=0; i<_items.count(); i++) {
      if(lp.terminated()) return;
      const Item& item=_items[i];
      const Ellipse& ell=item._ellipse;
      if(limits.polarLimits(ell, startPhi, stopPhi)) {
        p.setPen(QPen(item._color, lineWeight));
        int rx=abs((int)(ell.majorRadius()* gc.ax()));
        int ry=abs((int)(ell.minorRadius()*gc.ay()));
        int orx=gc.xr2s(ell.center().x())-rx;
        int ory=gc.yr2s(ell.center().y())-ry;
        int minphi=(int)floor(Angle::radiansToDegrees(startPhi)*16.0);
        int dphi=(int)ceil(Angle::radiansToDegrees(stopPhi)*16.0)-minphi;
        //printf("Circle %i is plotted phi %lg %lg\n",i,startPhi,stopPhi);
        if(ell.orientation().isNull()) {
          p.drawArc(orx, ory, rx + rx, ry + ry, minphi, dphi);
        } else {
          p.save();
          p.translate(orx+rx, ory+ry);
          p.rotate(-ell.orientation().degrees());
          p.drawArc(-rx, -ry, rx + rx, ry + ry, minphi, dphi);
          p.restore();
        }
      }
      //else printf("Circle %i is not plotted\n",i);
    }
  }

void SciFigs::CircleViewer::remove

(

int

index

)

[slot]

References _items, and TRACE.

Referenced by Simulator::on_removeSource_clicked().

  {
    TRACE;
    LayerLocker ll(this);
    _items.remove(index);
  }

void SciFigs::CircleViewer::resize

(

int

n

)

References _items, and TRACE.

Referenced by ArrayGui::ArrayResponse::createObjects(), FKTimeWindows::FKTimeWindows(), GeopsyGui::RingEditor::updateGraph(), and SciFigs::CircleMask::xml_polich().

  {
    TRACE;
    LayerLocker ll(this);
    _items.resize(n);
  }

void SciFigs::CircleViewer::set	(	int	index,
		double	x,
		double	y,
		double	a,
		double	b,
		double	phi,
		QColor	col
	)		[slot]

References SciFigs::CircleViewer::Item::_color, SciFigs::CircleViewer::Item::_ellipse, _items, QGpCoreTools::Ellipse::setCenter(), QGpCoreTools::Ellipse::setMajorRadius(), QGpCoreTools::Ellipse::setMinorRadius(), QGpCoreTools::Ellipse::setOrientation(), and TRACE.

Referenced by Simulator::displaySource(), FKTimeWindows::on_kEdit_valueChanged(), FKTimeWindows::on_vEdit_valueChanged(), ArrayGui::ArrayResponse::setKmax(), ArrayGui::ArrayResponse::setKmin(), and GeopsyGui::RingEditor::updateGraph().

  {
    TRACE;
    Item& item=_items[index];
    Ellipse& ell=item._ellipse;
    LayerLocker ll(this);
    ell.setCenter(Point2D(x, y));
    ell.setMajorRadius(a);
    ell.setMinorRadius(b);
    ell.setOrientation(phi);
    item._color=col;
  }

void SciFigs::CircleViewer::setLineWeight

(

double

lw

)

References _lineWeight.

  {
    LayerLocker ll(this);
    _lineWeight=lw;
  }

XMLMember SciFigs::CircleViewer::xml_member

(

XML_MEMBER_ARGS

)

[protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

• An integer: id number of a property
• A XMLClass * : a child of this object identified by tag
• Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), and TRACE.

  {
    TRACE;
    XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
    if(scifigsContext->data()) {
      if(tag=="data") return XMLMember(0);
      else if(tag=="nCircles") return XMLMember(1); // For compatibility
    }
    return GraphContentLayer::xml_member(tag, attributes, context)+2;
  }

bool SciFigs::CircleViewer::xml_setProperty

(

XML_SETPROPERTY_ARGS

)

[protected, virtual]

Re-implement this function to offer XML restore properties support to your class.

From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).

For a general case:

  Q_UNUSED(attributes);
  double val=content.toDouble();
  switch (memberID) {
  case 0:
    _x1=val;
    return true;
  case 1:
    _y1=val;
    return true;
  case 2:
    _x2=val;
    return true;
  case 3:
    _y2=val;
    return true;
  default:
    return false;
  }

For classes inheriting other classes (see also xml_member())

  switch (memberID) {
  case 0:
    _anInteger=content.toString();
    return true;
  case 1:
    _aString=content.toInt();
    return true;
  case 2:
    _aDouble=content.toDouble();
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-3, map, content);

For the arguments of this function use Macro XML_SETPROPERTY_ARGS.

Reimplemented from SciFigs::GraphContentLayer.

References add(), count(), QGpCoreTools::endl(), QGpCoreTools::StringSection::isValid(), QGpCoreTools::StringSection::readLine(), QGpCoreTools::StringSection::toString(), QGpCoreTools::tr(), and TRACE.

  {
    TRACE;
    Q_UNUSED(tag);
    switch (memberID) {
    case 0: {
        const QChar * ptr=0;
        //int n=_items.count();
        //if(n==0) return true;
        StringSection l=content.readLine(ptr);
        while(l.isValid()) {
          if(!add(l.toString())) {
            App::stream() << tr("Error parsing circle (%1 already added), incomplete line").arg(count()) << endl;
            return false;
          }
          l=content.readLine(ptr);
        }
      }
      return true;
    case 1: { // For compatibility
        return true;
      }
    default:
      break;
    }
    return GraphContentLayer::xml_setProperty(memberID-2, tag, attributes, content, context);
  }

virtual const QString& SciFigs::CircleViewer::xml_tagName

(

)

const [inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

Reimplemented in SciFigs::CircleMask.

{return xmlCircleViewerTag;}

void SciFigs::CircleViewer::xml_writeProperties

(

XML_WRITEPROPERTIES_ARGS

)

const [protected, virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::CircleViewer::Item::_color, SciFigs::CircleViewer::Item::_ellipse, _items, QGpCoreTools::Ellipse::center(), SciFigs::XMLSciFigs::data(), QGpCoreTools::Angle::degrees(), QGpCoreTools::Ellipse::majorRadius(), QGpCoreTools::Ellipse::minorRadius(), QGpCoreTools::Ellipse::orientation(), TRACE, QGpCoreTools::Point2D::x(), and QGpCoreTools::Point2D::y().

  {
    // TODO: have a more xml format for recording
    TRACE;
    GraphContentLayer::xml_writeProperties(s, context);
    XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
    if(scifigsContext->data()) {
      QString tmp;
      tmp+=s.indent();
      tmp+="<data>\n";
      int n=_items.count();
      for(int i=0;i<n;i++) {
        const Item& item=_items[i];
        const Ellipse& ell=item._ellipse;
        const QColor& col=item._color;
        tmp+=s.indent();
        tmp+="  ";
        tmp+=QString::number(ell.center().x(),'g',10);
        tmp+=" ";
        tmp+=QString::number(ell.center().y(),'g',10);
        tmp+=" ";
        tmp+=QString::number(ell.majorRadius(),'g',10);
        tmp+=" ";
        tmp+=QString::number(ell.minorRadius(),'g',10);
        tmp+=" ";
        tmp+=QString::number(ell.orientation().degrees(),'g',10);
        tmp+=" ";
        tmp+=QString::number(col.red());
        tmp+=" ";
        tmp+=QString::number(col.green());
        tmp+=" ";
        tmp+=QString::number(col.blue());
        tmp+="\n";
      }
      tmp+=s.indent();
      tmp+="</data>\n";
      s << tmp;
    }
  }

---

Member Data Documentation

QVector<Item> SciFigs::CircleViewer::_items [protected]

Referenced by add(), SciFigs::CircleMask::boundingRect(), boundingRect(), clear(), insert(), SciFigs::CircleMask::paintData(), paintData(), remove(), resize(), set(), and xml_writeProperties().

double SciFigs::CircleViewer::_lineWeight [protected]

Referenced by CircleViewer(), paintData(), and setLineWeight().

const QString SciFigs::CircleViewer::xmlCircleViewerTag = "CircleViewer" [static]

---

Property Documentation

double SciFigs::CircleViewer::lineWeight [read, write]

---

The documentation for this class was generated from the following files:

• SciFigs/CircleViewer.h
• SciFigs/CircleViewer.cpp
