SciFigs::ColorPaletteWidget Class Reference

ColorPaletteWidget is used to draw colored palettes in a GraphicSheet. More...

#include <ColorPaletteWidget.h>

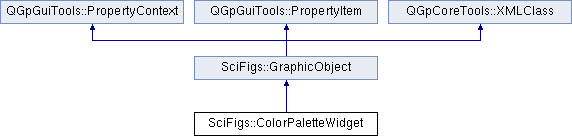

Inheritance diagram for SciFigs::ColorPaletteWidget:
SciFigs::GraphicObject QGpGuiTools::PropertyContext QGpGuiTools::PropertyItem QGpCoreTools::XMLClass

List of all members.

Public Slots

Q_SCRIPTABLE void colorInterpole (int imin, int imax)
virtual Q_SCRIPTABLE void deepUpdate ()
Q_SCRIPTABLE void defaultBW (int n)
Q_SCRIPTABLE void defaultColors (int n)
Q_SCRIPTABLE void defaultHSVColors (int sat, int value, int n=10, int transparency=255)
Q_SCRIPTABLE void load (QString fileName)
Q_SCRIPTABLE void save (QString fileName)
void setFontString (QString fs)
void setLineWeight (double val)
void setNumberPrecision (int p)
void setNumberType (QString t)
Q_SCRIPTABLE void setNumColor (int n)
void setPalette (const ColorPalette &pal)
void setScaleType (Scale::Type t)
void setTickSize (double val)
void setTitle (QString s)
Q_SCRIPTABLE void setVLinear (double min, double max)
Q_SCRIPTABLE void setVLog (double min, double max)
virtual Q_SCRIPTABLE void update ()

Signals

void changed (ColorPalette pal)

Public Member Functions

virtual void addProperties (PropertyProxy *pp)
const Axis & axis () const
 ColorPaletteWidget (QWidget *parent=0, Qt::WFlags f=0)
ColorPaletteWidget & operator= (const ColorPaletteWidget &o)
Axis::Orientation orientation () const
const ColorPalette & palette () const
virtual void properties (PropertyWidget *w) const
virtual void removeProperties (PropertyProxy *pp)
virtual void restoreScaleFonts (int *tmp)
virtual int * scaleFonts (double factor)
void setAxis (const Axis &a)
void setOrientation (Axis::Orientation o)
virtual void setProperty (uint wid, int pid, QVariant val)
virtual const QString & xml_tagName () const
 ~ColorPaletteWidget ()

Static Public Attributes

static const QString xmlColorPaletteWidgetTag = "ColorPaletteWidget"

Protected Member Functions

virtual bool eventFilter (QObject *obj, QEvent *e)
virtual void print (QPainter &p, double dotpercm, int x0Sheet, int y0Sheet, bool mask)
virtual void resizeEvent (QResizeEvent *)
XMLMember xml_member (XML_MEMBER_ARGS)
void xml_polishChild (XML_POLISHCHILD_ARGS)
void xml_writeChildren (XML_WRITECHILDREN_ARGS) const

Properties

QString font
double lineWeight
int numberPrecision
QString numberType
int numPrec
QString numType
double tickLenght
double tickLength
QString title

Detailed Description

ColorPaletteWidget is used to draw colored palettes in a GraphicSheet.

Usually color palettes are properties of certain types of GraphContentLayer like GridPlot. It is convenient to add a visual palette below or together with a colored grid or to any plot using colors for plotting values (the pseudo third dimension). It is possible to export the palette property to a ".pal" file and to import it to a freshly created ColorPaletteWidget.

Here is an example of color palette:

A typical color palette

Here is a basic code that adds a new palette to an existing sheet:

  ColorPaletteWidget * palette=
      static_cast<ColorPaletteWidget *>(sheet->addObject("ColorPaletteWidget"));
  // Initialize palette, by default the palette has 20 colors
  palette->setVLinear(0,1);         // Interpole linearly between 0 and 1
  palette->setNumberPrecision(2);           // Two digits are shown for labels
  palette->setTitle("Title");
  palette->setPrintWidth(15.0);     // Set the width in cm
  palette->setPrintHeight(2.0);     // Set the heigh in cm
  palette->setPrintAnchor(Point(5.0,10.0));
  sheet->showObject(palette);       // Show palette and finish docking to sheet
  sheet->autoResizeContent();       // adjust sheet's content

Constructor & Destructor Documentation

SciFigs::ColorPaletteWidget::ColorPaletteWidget ( QWidget *  parent = 0,
Qt::WFlags  f = 0
)

References QGpGuiTools::ColorPalette::defaultColors(), SciFigs::AxisWindow::graphContent(), SciFigs::Axis::North, SciFigs::GraphContent::setGridLines(), setOrientation(), SciFigs::Axis::setOrientationBlocked(), SciFigs::ColorPaletteLayer::setPalette(), SciFigs::GraphicObject::setPrintHeight(), SciFigs::GraphicObject::setPrintWidth(), SciFigs::Axis::setRange(), SciFigs::Axis::setTitle(), QGpGuiTools::ColorPalette::setVLinear(), QGpCoreTools::tr(), TRACE, w, SciFigs::AxisWindow::xAxis(), and SciFigs::AxisWindow::yAxis().

                                                                  :
    GraphicObject(parent, f)
{
  TRACE;

  AxisWindow * w=new AxisWindow(this);
  w->yAxis()->setEnabled(false);
  w->xAxis()->setTitle(tr( "Title" ));
  w->xAxis()->setObjectName( "paletteAxis" );
  w->graphContent()->setGridLines(false);
  // Grab all mouse events
  w->xAxis()->installEventFilter(this);
  w->yAxis()->installEventFilter(this);
  w->graphContent()->installEventFilter(this);
  w->installEventFilter(this);
  connect(w->xAxis(), SIGNAL(orientationChanged()), this, SLOT(setOrientation()));
  w->xAxis()->setOrientationBlocked(false);
  w->yAxis()->setOrientationBlocked(false);

  _paletteLayer=new ColorPaletteLayer(w);
  ColorPalette pal;
  pal.defaultColors(128);
  pal.setVLinear(0, 1);
  _paletteLayer->setPalette(pal);
  w->xAxis()->setRange(0,1);
  setOrientation(Axis::North);

  setPrintWidth(15);
  setPrintHeight(2);
}
SciFigs::ColorPaletteWidget::~ColorPaletteWidget ( )

References TRACE.

{
  TRACE;
}

Member Function Documentation

void SciFigs::ColorPaletteWidget::addProperties ( PropertyProxy *  pp) [virtual]

Setup property editor

Reimplemented from SciFigs::GraphicObject.

References QGpGuiTools::PropertyProxy::addCategory(), SciFigs::Axis::addProperties(), QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), axis(), QGpGuiTools::PropertyProxy::setCurrentCategory(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  GraphicObject::addProperties(pp);
  if( !pp->setCurrentCategory(_category) ) {
    pp->addCategory(_category, tr("Palette"), QIcon( ":/images/ColorPaletteWidget.png"));
  }
  if(pp->setCurrentTab(_tabPalette)) {
    pp->addReference(this);
  } else {
    PaletteProperties * w=new PaletteProperties;
    pp->addTab(_tabPalette, tr("Palette"), w, this);
  }
  axis().addProperties(pp);
}
const Axis & SciFigs::ColorPaletteWidget::axis ( ) const

References SciFigs::ColorPaletteLayer::axisType, SciFigs::GraphContentLayer::graph(), TRACE, QGpCoreTools::XAxis, SciFigs::AxisWindow::xAxis(), and SciFigs::AxisWindow::yAxis().

Referenced by addProperties(), removeProperties(), setAxis(), xml_member(), xml_polishChild(), and xml_writeChildren().

{
  TRACE;
  if(_paletteLayer->axisType()==XAxis) {
    return *_paletteLayer->graph()->xAxis();
  } else {
    return *_paletteLayer->graph()->yAxis();
  }
}
void SciFigs::ColorPaletteWidget::changed ( ColorPalette  pal) [signal]

Referenced by colorInterpole(), defaultBW(), defaultColors(), defaultHSVColors(), operator=(), setNumColor(), setPalette(), setProperty(), setVLinear(), setVLog(), and xml_polishChild().

void SciFigs::ColorPaletteWidget::colorInterpole ( int  imin,
int  imax
) [slot]

References changed(), QGpGuiTools::ColorPalette::colorHSVInterpole(), and SciFigs::ColorPaletteLayer::setPalette().

{
  ColorPalette pal;
  pal.colorHSVInterpole(imin, imax);
  _paletteLayer->setPalette(pal);
  emit changed(pal);
}
void SciFigs::ColorPaletteWidget::deepUpdate ( ) [virtual, slot]

Forward deep update to internal graph

Reimplemented from SciFigs::GraphicObject.

References SciFigs::AxisWindow::deepUpdate(), SciFigs::GraphContentLayer::graph(), TRACE, SciFigs::GraphicObject::transparentMask(), and SciFigs::GraphicObject::updateMask().

{
  TRACE;
  _paletteLayer->graph()->deepUpdate();
  if(transparentMask()) updateMask();
}
void SciFigs::ColorPaletteWidget::defaultBW ( int  n) [slot]

References changed(), QGpGuiTools::ColorPalette::defaultBW(), and SciFigs::ColorPaletteLayer::setPalette().

{
  ColorPalette pal;
  pal.defaultBW(n);
  _paletteLayer->setPalette(pal);
  emit changed(pal);
}
void SciFigs::ColorPaletteWidget::defaultColors ( int  n) [slot]

References changed(), QGpGuiTools::ColorPalette::defaultColors(), and SciFigs::ColorPaletteLayer::setPalette().

Referenced by ArrayGui::ArrayResponse::ArrayResponse().

{
  ColorPalette pal;
  pal.defaultColors(n);
  _paletteLayer->setPalette(pal);
  emit changed(pal);
}
void SciFigs::ColorPaletteWidget::defaultHSVColors ( int  sat,
int  value,
int  n = 10,
int  transparency = 255
) [slot]

References changed(), QGpGuiTools::ColorPalette::defaultHSVColors(), and SciFigs::ColorPaletteLayer::setPalette().

Referenced by MonoStation::AbstractSummary::createBubbleGraph(), MonoStation::AbstractSummary::createSpectrumGridGraph(), DinverDCGui::DCModelViewer::DCModelViewer(), and PSViewer::PSViewer().

{
  ColorPalette pal;
  pal.defaultHSVColors(sat, value, n, transparency);
  _paletteLayer->setPalette(pal);
  emit changed(pal);
}
bool SciFigs::ColorPaletteWidget::eventFilter ( QObject *  obj,
QEvent *  e
) [protected, virtual]

References SciFigs::GraphContentLayer::graph(), SciFigs::GraphicObject::mouseDoubleClickEvent(), SciFigs::GraphicObject::mouseMoveEvent(), SciFigs::GraphicObject::mousePressEvent(), SciFigs::GraphicObject::mouseReleaseEvent(), and TRACE.

{
  TRACE;
  QMouseEvent * me;
  switch(e->type()) {
  case QEvent::MouseButtonDblClick:
    me=convertMouseEvent(obj,e);
    GraphicObject::mouseDoubleClickEvent(me);
    delete me;
    return true;
  case QEvent::MouseButtonPress:
    me=convertMouseEvent(obj,e);
    GraphicObject::mousePressEvent(me);
    delete me;
    return true;
  case QEvent::MouseButtonRelease:
    me=convertMouseEvent(obj,e);
    GraphicObject::mouseReleaseEvent(me);
    delete me;
    return true;
  case QEvent::MouseMove:
    if(obj==_paletteLayer->graph()) {
      GraphicObject::mouseMoveEvent(static_cast<QMouseEvent *>(e));
      return true;
    } else {
      return false;
    }
  default:
    return false;
  }
}
void SciFigs::ColorPaletteWidget::load ( QString  fileName) [slot]

References SciFigs::XMLSciFigs::Data, QGpCoreTools::XMLErrorReport::exec(), SciFigs::XMLSciFigs::restoreFile(), QGpCoreTools::XMLErrorReport::setFileName(), setPalette(), QGpCoreTools::XMLErrorReport::setTitle(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  if(fileName.length()>0) {
    XMLErrorReport xmler(XMLErrorReport::Read);
    xmler.setTitle(tr("Load palette"));
    xmler.setFileName(fileName);
    XMLSciFigs s;
    ColorPalette pal;
    if(xmler.exec(s.restoreFile(fileName,&pal,XMLSciFigs::Data))) {
      setPalette(pal);
    }
  }
}
ColorPaletteWidget & SciFigs::ColorPaletteWidget::operator= ( const ColorPaletteWidget &  o)

References SciFigs::ColorPaletteLayer::axisType, changed(), SciFigs::GraphContentLayer::graph(), SciFigs::ColorPaletteLayer::palette(), palette(), SciFigs::ColorPaletteLayer::setAxisType(), SciFigs::ColorPaletteLayer::setPalette(), TRACE, w, SciFigs::AxisWindow::xAxis(), and SciFigs::AxisWindow::yAxis().

{
  TRACE;
  _paletteLayer->setPalette(o._paletteLayer->palette());
  _paletteLayer->setAxisType(o._paletteLayer->axisType());
  AxisWindow * w=_paletteLayer->graph();
  AxisWindow * ow=o._paletteLayer->graph();
  *w->xAxis()=*ow->xAxis();
  *w->yAxis()=*ow->yAxis();
  GraphicObject::operator=(o);
  emit changed(palette());
  return *this;
}
Axis::Orientation SciFigs::ColorPaletteWidget::orientation ( ) const [inline]

Referenced by setAxis().

{return axis().orientation();}
const ColorPalette & SciFigs::ColorPaletteWidget::palette ( ) const

References SciFigs::ColorPaletteLayer::palette(), and TRACE.

Referenced by MonoStation::AbstractSummary::createBubbleGraph(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), DinverDCGui::DCModelViewer::initGraphs(), operator=(), PSViewer::palette(), properties(), save(), setProperty(), HVRotateWinResults::setStations(), SpectrumRotateWinResults::setStations(), xml_polishChild(), and xml_writeChildren().

{
  TRACE;
  return _paletteLayer->palette();
}
void SciFigs::ColorPaletteWidget::print ( QPainter &  p,
double  dotpercm,
int  x0Sheet,
int  y0Sheet,
bool  mask
) [protected, virtual]

Print the object to a Qpainter using relative coordinates. Relative coordinates are usefull for printing various pages. This basic implementation call the virtual function paint() to draw the object's content.

Reimplemented from SciFigs::GraphicObject.

References SciFigs::GraphContentLayer::graph(), SciFigs::AxisWindow::print(), SciFigs::GraphicObject::printHeight(), SciFigs::GraphicObject::printResolution(), SciFigs::GraphicObject::printWidth(), SciFigs::GraphicObject::printXAnchor(), SciFigs::GraphicObject::printYAnchor(), SciFigs::GraphicObject::setPrintResolution(), SciFigs::GraphicObject::setPrintXAnchor(), SciFigs::GraphicObject::setPrintYAnchor(), SciFigs::Axis::setSizeInfo(), SciFigs::Axis::setSizeType(), SciFigs::Axis::TotalSize, w, SciFigs::AxisWindow::xAxis(), and SciFigs::AxisWindow::yAxis().

{
  AxisWindow * w=_paletteLayer->graph();
  w->setPrintXAnchor(printXAnchor());
  w->setPrintYAnchor(printYAnchor());
  w->xAxis()->setSizeType(Axis::TotalSize);
  w->xAxis()->setSizeInfo(printWidth());
  w->yAxis()->setSizeType(Axis::TotalSize);
  w->yAxis()->setSizeInfo(printHeight());
  w->setPrintResolution(printResolution());
  w->print(p, dotpercm, x0Sheet, y0Sheet, mask);
}
void SciFigs::ColorPaletteWidget::properties ( PropertyWidget *  w) const [virtual]

Reimplemented from SciFigs::GraphicObject.

References QGpGuiTools::PropertyWidget::id(), SciFigs::PaletteProperties::Palette, palette(), and QGpGuiTools::PropertyWidget::setValue().

{
  if(w->id()==_tabPalette) {
    w->setValue(PaletteProperties::Palette, QVariant::fromValue(palette()));
  } else {
    GraphicObject::properties(w);
  }
}
void SciFigs::ColorPaletteWidget::removeProperties ( PropertyProxy *  pp) [virtual]

Cleanup property editor

Reimplemented from SciFigs::GraphicObject.

References axis(), SciFigs::Axis::removeProperties(), QGpGuiTools::PropertyProxy::removeTab(), QGpGuiTools::PropertyProxy::setCurrentCategory(), and TRACE.

{
  TRACE;
  GraphicObject::removeProperties(pp);
  if(pp->setCurrentCategory(_category) ) {
    pp->removeTab(_tabPalette, this);
    axis().removeProperties(pp);
  }
}
void SciFigs::ColorPaletteWidget::resizeEvent ( QResizeEvent *  ) [protected, virtual]

Intercept resize events and forward them to its internal AxisWindow

References SciFigs::GraphContentLayer::graph(), and TRACE.

{
  TRACE;
  _paletteLayer->graph()->resize(size());
}
void SciFigs::ColorPaletteWidget::restoreScaleFonts ( int *  fontSizeStorage) [virtual]

Restore a saved scale for fonts

Reimplemented from SciFigs::GraphicObject.

References SciFigs::GraphContentLayer::graph(), SciFigs::AxisWindow::restoreScaleFonts(), and TRACE.

{
  TRACE;
  _paletteLayer->graph()->restoreScaleFonts(fontSizeStorage);
}
void SciFigs::ColorPaletteWidget::save ( QString  fileName) [slot]

References SciFigs::XMLSciFigs::Data, palette(), SciFigs::XMLSciFigs::saveFile(), and TRACE.

{
  TRACE;
  if(fileName.length()>0) {
    XMLSciFigs s;
    s.saveFile(fileName,&palette(),XMLSciFigs::Data);
  }
}
int * SciFigs::ColorPaletteWidget::scaleFonts ( double  scale) [virtual]

For some high resolution bitmap image, fonts must scaled

Re-implentation to scale fonts in sub-widgets (axis and content)

Reimplemented from SciFigs::GraphicObject.

References SciFigs::GraphContentLayer::graph(), SciFigs::AxisWindow::scaleFonts(), and TRACE.

{
  TRACE;
  return _paletteLayer->graph()->scaleFonts(scale);
}
void SciFigs::ColorPaletteWidget::setAxis ( const Axis &  a)

References axis(), orientation(), SciFigs::Axis::orientation, setOrientation(), and TRACE.

{
  TRACE;
  if(orientation()!=a.orientation()) {
    setOrientation(a.orientation());
  }
  axis()=a;
}
void SciFigs::ColorPaletteWidget::setFontString ( QString  fs) [inline, slot]
{axis().setFontString(fs);}
void SciFigs::ColorPaletteWidget::setLineWeight ( double  val) [inline, slot]
{axis().setLineWeight(val);}
void SciFigs::ColorPaletteWidget::setNumberPrecision ( int  p) [inline, slot]

Referenced by MonoStation::AbstractSummary::createBubbleGraph(), MonoStation::AbstractSummary::createSpectrumGridGraph(), DinverDCGui::DCModelViewer::DCModelViewer(), PSViewer::PSViewer(), HVRotateWinResults::setStations(), and SpectrumRotateWinResults::setStations().

{axis().setCurrentNumberPrecision(p);}
void SciFigs::ColorPaletteWidget::setNumberType ( QString  t) [inline, slot]
{axis().setNumberType(Number::type(t.toAscii().data()[0]));}
void SciFigs::ColorPaletteWidget::setNumColor ( int  n) [slot]

References QGpGuiTools::ColorPalette::allocate(), changed(), and SciFigs::ColorPaletteLayer::setPalette().

{
  ColorPalette pal;
  pal.allocate(n);
  _paletteLayer->setPalette(pal);
  emit changed(pal);
}
void SciFigs::ColorPaletteWidget::setOrientation ( Axis::Orientation  o) [inline]

Referenced by ColorPaletteWidget(), MonoStation::AbstractSummary::createBubbleGraph(), TFAResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), and setAxis().

{axis().setOrientation(o);}
void SciFigs::ColorPaletteWidget::setPalette ( const ColorPalette &  pal) [slot]

References SciFigs::ColorPaletteLayer::axisType, SciFigs::ColorPaletteLayer::boundingRect(), changed(), SciFigs::AxisWindow::deepUpdate(), SciFigs::GraphContentLayer::graph(), SciFigs::ColorPaletteLayer::setPalette(), SciFigs::Axis::setRange(), TRACE, w, QGpCoreTools::Rect::x1(), QGpCoreTools::Rect::x2(), QGpCoreTools::XAxis, SciFigs::AxisWindow::xAxis(), QGpCoreTools::Rect::y1(), QGpCoreTools::Rect::y2(), and SciFigs::AxisWindow::yAxis().

Referenced by load(), setProperty(), SpectrumRotateWinResults::setStations(), HVRotateWinResults::setStations(), and xml_polishChild().

{
  TRACE;
  static bool locked=false;
  if(!locked) {
    locked=true;
    _paletteLayer->setPalette(pal);
    // Adjust range of axis
    AxisWindow * w=_paletteLayer->graph();
    Rect r=_paletteLayer->boundingRect();
    if(_paletteLayer->axisType()==XAxis) {
      w->xAxis()->setRange(r.x1(), r.x2());
    } else {
      w->yAxis()->setRange(r.y1(), r.y2());
    }
    w->deepUpdate();
    emit changed(pal);
    locked=false;
  }
}
void SciFigs::ColorPaletteWidget::setProperty ( uint  wid,
int  pid,
QVariant  val
) [virtual]

Reimplemented from SciFigs::GraphicObject.

References changed(), SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), SciFigs::PaletteProperties::Palette, palette(), and setPalette().

{
  if(wid==_tabPalette) {
    switch(pid) {
    case PaletteProperties::Palette:
      setPalette(val.value<ColorPalette>());
      emit changed(palette());
      _paletteLayer->graphContent()->deepUpdate();
      break;
    default:
      break;
    }
  } else {
    GraphicObject::setProperty(wid, pid, val);
  }
}
void SciFigs::ColorPaletteWidget::setScaleType ( Scale::Type  t) [inline, slot]

Referenced by DinverDCGui::DCModelViewer::setLimits().

{axis().setScaleType(t);}
void SciFigs::ColorPaletteWidget::setTickSize ( double  val) [inline, slot]
{axis().setTickSize(val);}
void SciFigs::ColorPaletteWidget::setTitle ( QString  s) [inline, slot]

Referenced by TFAResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), DinverDCGui::DCModelViewer::DCModelViewer(), PSViewer::PSViewer(), MonoStation::AbstractSummary::setBubbleValues(), HVRotateWinResults::setStations(), and SpectrumRotateWinResults::setStations().

{axis().setCurrentTitle(s);}
void SciFigs::ColorPaletteWidget::setVLinear ( double  min,
double  max
) [slot]

References changed(), SciFigs::ColorPaletteLayer::palette(), SciFigs::ColorPaletteLayer::setPalette(), and QGpGuiTools::ColorPalette::setVLinear().

Referenced by ArrayGui::ArrayResponse::createObjects(), DinverDCGui::DCModelViewer::DCModelViewer(), PSViewer::PSViewer(), SpectrumRotateWinResults::setLimits(), HVRotateWinResults::setLimits(), DinverDCGui::DCModelViewer::setLimits(), and PSViewer::setLimits().

{
  ColorPalette pal=_paletteLayer->palette();
  pal.setVLinear(min, max);
  _paletteLayer->setPalette(pal);
  emit changed(pal);
}
void SciFigs::ColorPaletteWidget::setVLog ( double  min,
double  max
) [slot]

References changed(), SciFigs::ColorPaletteLayer::palette(), SciFigs::ColorPaletteLayer::setPalette(), and QGpGuiTools::ColorPalette::setVLog().

Referenced by DinverDCGui::DCModelViewer::setLimits(), and PSViewer::setLimits().

{
  ColorPalette pal=_paletteLayer->palette();
  pal.setVLog(min, max);
  _paletteLayer->setPalette(pal);
  emit changed(pal);
}
void SciFigs::ColorPaletteWidget::update ( ) [virtual, slot]

Forward update to internal graph

Reimplemented from SciFigs::GraphicObject.

References SciFigs::GraphContentLayer::graph(), TRACE, SciFigs::GraphicObject::transparentMask(), SciFigs::AxisWindow::update(), and SciFigs::GraphicObject::updateMask().

{
  TRACE;
  _paletteLayer->graph()->update();
  if(transparentMask()) updateMask();
}
XMLMember SciFigs::ColorPaletteWidget::xml_member ( XML_MEMBER_ARGS  ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

  • An integer: id number of a property
  • A XMLClass * : a child of this object identified by tag
  • Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from SciFigs::GraphicObject.

References axis(), SciFigs::XMLSciFigs::data(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    if(tag=="ColorPalette") return XMLMember(new ColorPalette, true);
  }
  if(tag=="Axis") {
    return XMLMember(&axis());
  }
  return GraphicObject::xml_member(tag, attributes, context);
}
void SciFigs::ColorPaletteWidget::xml_polishChild ( XML_POLISHCHILD_ARGS  ) [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References axis(), changed(), SciFigs::Axis::East, SciFigs::GraphContentLayer::graph(), SciFigs::Axis::North, SciFigs::Axis::orientation, palette(), SciFigs::GraphicObject::printHeight(), SciFigs::GraphicObject::printWidth(), setPalette(), SciFigs::GraphicObject::setPrintHeight(), SciFigs::GraphicObject::setPrintWidth(), SciFigs::GraphicObject::sizeChanged(), SciFigs::Axis::South, SciFigs::Axis::West, and SciFigs::AxisWindow::xml_polish().

{
  if(child->xml_tagName()=="ColorPalette") {
    ColorPalette * pal=static_cast<ColorPalette *>(child);
    setPalette(*pal);
    emit changed(palette());
  } else if(child->xml_tagName()=="Axis") {
    double tmp;
    switch(axis().orientation()) {
    case Axis::West:
    case Axis::East:
      tmp=printWidth();
      setPrintWidth(printHeight());
      setPrintHeight(tmp);
      emit sizeChanged();
    case Axis::South:
    case Axis::North:
      break;
    }
    // Only one axis is restored but the hidden Axiswindow must be polish
    // (e.g. visible range)
    _paletteLayer->graph()->xml_polish(context);
  }
}
virtual const QString& SciFigs::ColorPaletteWidget::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::GraphicObject.

{return xmlColorPaletteWidgetTag;}
void SciFigs::ColorPaletteWidget::xml_writeChildren ( XML_WRITECHILDREN_ARGS  ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References axis(), SciFigs::XMLSciFigs::data(), palette(), TRACE, and QGpCoreTools::XMLClass::xml_save().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    palette().xml_save(s, context);
  }
  axis().xml_save(s, context); // Axis must be save after. If not the automatic axis
                               // will override the axis settings upon load.
}

Member Data Documentation

const QString SciFigs::ColorPaletteWidget::xmlColorPaletteWidgetTag = "ColorPaletteWidget" [static]

Property Documentation

QString SciFigs::ColorPaletteWidget::font [read, write]
double SciFigs::ColorPaletteWidget::lineWeight [read, write]
int SciFigs::ColorPaletteWidget::numberPrecision [read, write]
QString SciFigs::ColorPaletteWidget::numberType [read, write]
int SciFigs::ColorPaletteWidget::numPrec [read, write]
QString SciFigs::ColorPaletteWidget::numType [read, write]
double SciFigs::ColorPaletteWidget::tickLenght [read, write]
double SciFigs::ColorPaletteWidget::tickLength [read, write]
QString SciFigs::ColorPaletteWidget::title [read, write]
The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines

Modified 2013-10-22

Valid CSS! Valid XHTML 1.0!
