SciFigs::GraphicSheetMenu Class Reference

#include <GraphicSheetMenu.h>

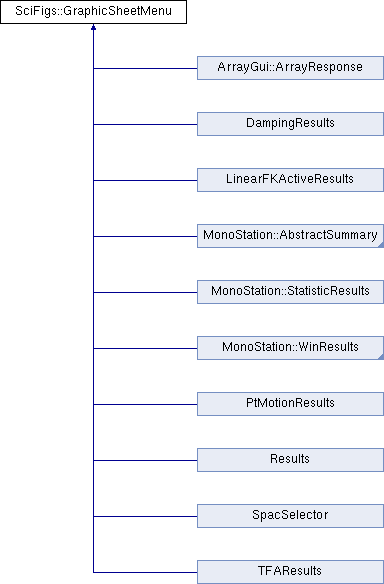

Inheritance diagram for SciFigs::GraphicSheetMenu:
ArrayGui::ArrayResponse DampingResults LinearFKActiveResults MonoStation::AbstractSummary MonoStation::StatisticResults MonoStation::WinResults PtMotionResults Results SpacSelector TFAResults

List of all members.

Public Member Functions

AxisWindow * addGraph ()
QMenu * addMenu (QString title)
TextEdit * addText (double x, double y, double dx, double dy)
 GraphicSheetMenu (QWidget *parent=0, Qt::WFlags f=0)
void removeObject (GraphicObject *o)
GraphicSheet * sheet ()

Static Public Member Functions

static void setFrequencyTitles (AxisWindow *w, QString title, QString invTitle, Number::Type type)
static void setGraphGeometry (AxisWindow *w, double x, double dx, double y, double dy, Axis::SizeType type=Axis::TotalSize)

Public Attributes

QMenu * menuEdit
QMenu * menuFile
QMenu * menuFormat
QMenu * menuInsert

Protected Member Functions

void addActions ()

Protected Attributes

QVBoxLayout * _childLayout
GraphicSheet _sheet

Constructor & Destructor Documentation

SciFigs::GraphicSheetMenu::GraphicSheetMenu ( QWidget *  parent = 0,
Qt::WFlags  f = 0
)

References _childLayout, _sheet, addActions(), and TRACE.

                                                              :
    QWidget(parent, f), _sheet(this)
{
  TRACE;
  _sheet.setObjectName("sheet");
  _childLayout=new QVBoxLayout(this);
  _childLayout->setMargin(0);
  _childLayout->setSpacing(0);
#if !defined(Q_WS_MAC) && !defined(UBUNTU_UNITY)
  _menuBar=new QMenuBar(this);
  _childLayout->addWidget(_menuBar);
#endif
  addActions();
  _childLayout->addWidget(&_sheet);
  setGeometry(5, 80, 700, 500);
}

Member Function Documentation

void SciFigs::GraphicSheetMenu::addActions ( ) [protected]

Reimplemented in MonoStation::AbstractSummary, MonoStation::WinResults, SpectrumWinResults, HVRotateWinResults, and SpectrumRotateWinResults.

References _sheet, SciFigs::GraphicSheet::addEditActions(), SciFigs::GraphicSheet::addFileActions(), SciFigs::GraphicSheet::addFormatActions(), SciFigs::GraphicSheet::addInsertActions(), SciFigs::GraphicSheet::addMenu(), menuEdit, menuFile, menuFormat, menuInsert, QGpCoreTools::tr(), and TRACE.

Referenced by GraphicSheetMenu().

{
  TRACE;
  QAction * a;

  // File menu
  menuFile=new QMenu(this);
  menuFile->setTitle(tr("&File"));
  _sheet.addFileActions(menuFile, 0);

  a=new QAction(tr("&Close"), this);
  connect(a, SIGNAL(triggered()), this, SLOT(close()) );
  menuFile->addAction(a);

  // Edit menu
  menuEdit=new QMenu(this);
  menuEdit->setTitle(tr("&Edit"));
  _sheet.addEditActions(menuEdit, 0);

  // Insert menu
  menuInsert=new QMenu(this);
  menuInsert->setTitle(tr("&Insert"));
  _sheet.addInsertActions(menuInsert, 0);

  // Format menu
  menuFormat=new QMenu(this);
  menuFormat->setTitle(tr("&Format"));
  _sheet.addFormatActions(menuFormat);

#if !defined(Q_WS_MAC) && !defined(UBUNTU_UNITY)
  _menuBar->addMenu(menuFile);
  _menuBar->addMenu(menuEdit);
  _menuBar->addMenu(menuInsert);
  _menuBar->addMenu(menuFormat);
#endif

  _sheet.addMenu(menuFile);
  _sheet.addMenu(menuEdit);
  _sheet.addMenu(menuInsert);
  _sheet.addMenu(menuFormat);
}
AxisWindow * SciFigs::GraphicSheetMenu::addGraph ( )

References _sheet, SciFigs::GraphicSheet::addObject(), SciFigs::GraphicObject::setObjectName(), SciFigs::GraphicSheet::showObject(), TRACE, and w.

Referenced by MonoStation::AbstractSummary::createAverageGraph(), MonoStation::AbstractSummary::createBubbleGraph(), MonoStation::AbstractSummary::createGridCrossSectionGraph(), PtMotionResults::createObjects(), LinearFKActiveResults::createObjects(), TFAResults::createObjects(), MonoStation::StatisticResults::createObjects(), DampingResults::createObjects(), SpacSelector::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), MonoStation::AbstractSummary::createStackedGraph(), MonoStation::WinResults::loadResults(), MonoStation::WinResults::setStations(), and LinearFKActiveResults::stackGrids().

{
  TRACE;
  AxisWindow * w=new AxisWindow;
  w->setObjectName("graph");
  _sheet.addObject(w);
  _sheet.showObject(w);
  return w;
}
QMenu * SciFigs::GraphicSheetMenu::addMenu ( QString  title)

References _sheet, SciFigs::GraphicSheet::addMenu(), and TRACE.

Referenced by MonoStation::WinResults::addActions(), MonoStation::AbstractSummary::addActions(), DampingResults::DampingResults(), and LinearFKActiveResults::LinearFKActiveResults().

{
  TRACE;
  QMenu * m=new QMenu(this);
  m->setTitle(title);
#if !defined(Q_WS_MAC) && !defined(UBUNTU_UNITY)
  _menuBar->addMenu(m);
#endif
  _sheet.addMenu(m);
  return m;
}
TextEdit * SciFigs::GraphicSheetMenu::addText ( double  x,
double  y,
double  dx,
double  dy
)

References _sheet, SciFigs::GraphicSheet::addObject(), SciFigs::GraphicObject::setPrintHeight(), SciFigs::GraphicObject::setPrintWidth(), SciFigs::GraphicObject::setPrintXAnchor(), SciFigs::GraphicObject::setPrintYAnchor(), SciFigs::TextEdit::setTextAsData(), SciFigs::GraphicSheet::showObject(), and TRACE.

Referenced by LinearFKActiveResults::createObjects(), TFAResults::createObjects(), SpacSelector::createObjects(), DampingResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::WinResults::loadResults(), MonoStation::WinResults::setStations(), LinearFKActiveResults::stackGrids(), and MonoStation::StatisticResults::studentTest().

{
  TRACE;
  TextEdit * te=new TextEdit;
  te->setPrintXAnchor(x);
  te->setPrintYAnchor(y);
  te->setPrintWidth(dx);
  te->setPrintHeight(dy);
  te->setTextAsData(true);
  _sheet.addObject(te);
  _sheet.showObject(te);
  return te;
}
void SciFigs::GraphicSheetMenu::removeObject ( GraphicObject *  o)

References _sheet, SciFigs::GraphicSheet::removeObject(), and TRACE.

{
  TRACE;
  _sheet.removeObject(o, true);
}
void SciFigs::GraphicSheetMenu::setFrequencyTitles ( AxisWindow *  w,
QString  title,
QString  invTitle,
Number::Type  type
) [static]

References SciFigs::Scale::Log, SciFigs::Axis::setAutoTicks(), SciFigs::Axis::setMajorTicks(), SciFigs::Axis::setMinorTicks(), SciFigs::Axis::setNumberType(), SciFigs::Axis::setScaleType(), SciFigs::Axis::setTitle(), SciFigs::Axis::setTitleInversedScale(), TRACE, SciFigs::AxisWindow::xAxis(), and SciFigs::AxisWindow::yAxis().

Referenced by MonoStation::AbstractSummary::createAverageGraph(), MonoStation::StatisticResults::createObjects(), SpacSelector::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), and MonoStation::AbstractSummary::createStackedGraph().

{
  TRACE;
  w->xAxis()->setTitle("Frequency (Hz)");
  w->xAxis()->setTitleInversedScale("Period (s)");
  w->xAxis()->setScaleType(Scale::Log);
  w->xAxis()->setAutoTicks(false);
  w->xAxis()->setMajorTicks(2);
  w->xAxis()->setMinorTicks(0.5);

  w->yAxis()->setTitle(title);
  w->yAxis()->setNumberType(type);
  w->yAxis()->setTitleInversedScale(invTitle);
}
void SciFigs::GraphicSheetMenu::setGraphGeometry ( AxisWindow *  w,
double  x,
double  dx,
double  y,
double  dy,
Axis::SizeType  type = Axis::TotalSize
) [static]

References SciFigs::GraphicObject::setPrintXAnchor(), SciFigs::GraphicObject::setPrintYAnchor(), SciFigs::Axis::setSizeInfo(), SciFigs::Axis::setSizeType(), TRACE, SciFigs::AxisWindow::updateExternalGeometry(), SciFigs::AxisWindow::updateGeometry(), SciFigs::AxisWindow::xAxis(), and SciFigs::AxisWindow::yAxis().

Referenced by MonoStation::AbstractSummary::createAverageGraph(), MonoStation::AbstractSummary::createBubbleGraph(), MonoStation::AbstractSummary::createGridCrossSectionGraph(), PtMotionResults::createObjects(), LinearFKActiveResults::createObjects(), TFAResults::createObjects(), MonoStation::StatisticResults::createObjects(), DampingResults::createObjects(), SpacSelector::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), MonoStation::AbstractSummary::createStackedGraph(), MonoStation::WinResults::loadResults(), MonoStation::WinResults::setStations(), and LinearFKActiveResults::stackGrids().

{
  TRACE;
  w->xAxis()->setSizeType(type);
  w->xAxis()->setSizeInfo(dx);
  w->setPrintXAnchor(x);
  w->yAxis()->setSizeType(type);
  w->yAxis()->setSizeInfo(dy);
  w->setPrintYAnchor(y);
  w->updateExternalGeometry();
  w->updateGeometry();
}
GraphicSheet* SciFigs::GraphicSheetMenu::sheet ( ) [inline]

Referenced by HVSummary::createGraphs(), SpectrumSummary::createGraphs(), PtMotionResults::createObjects(), LinearFKActiveResults::createObjects(), TFAResults::createObjects(), MonoStation::StatisticResults::createObjects(), DampingResults::createObjects(), MonoStation::WinResults::setStations(), MonoStation::AbstractSummary::setStations(), and MonoStation::StatisticResults::studentTest().

{return &_sheet;}

Member Data Documentation

QVBoxLayout* SciFigs::GraphicSheetMenu::_childLayout [protected]

Referenced by ArrayGui::ArrayResponse::ArrayResponse(), GraphicSheetMenu(), and SpacSelector::SpacSelector().

GraphicSheet SciFigs::GraphicSheetMenu::_sheet [protected]

Referenced by addActions(), addGraph(), addMenu(), addText(), MonoStation::AbstractSummary::createBubbleGraph(), TFAResults::createObjects(), ArrayGui::ArrayResponse::createObjects(), MonoStation::AbstractSummary::createSpectrumGridGraph(), GraphicSheetMenu(), MonoStation::WinResults::loadResults(), removeObject(), MonoStation::WinResults::selectAll(), HVRotateWinResults::setStations(), SpectrumRotateWinResults::setStations(), and SpacSelector::SpacSelector().

QMenu* SciFigs::GraphicSheetMenu::menuEdit

Referenced by addActions().

QMenu* SciFigs::GraphicSheetMenu::menuFile

Referenced by addActions().

QMenu* SciFigs::GraphicSheetMenu::menuFormat

Referenced by MonoStation::WinResults::addActions(), and addActions().

QMenu* SciFigs::GraphicSheetMenu::menuInsert

Referenced by addActions().

The documentation for this class was generated from the following files:
