SciFigs::ImageLayer Class Reference

A ImageLayer is a layer to plot a scaled bitmap. More...

#include <ImageLayer.h>

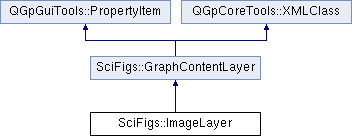

Inheritance diagram for SciFigs::ImageLayer:

List of all members.

Classes
class	ReferencePoint
	Reference point to fix scale of an ImageLayer. More...
Public Types
enum	TrackingModes { Scale = 0, Histogram }
Signals
void	editedColors (QRgb *colors, int numC)
void	pointPicked (QPoint p)
Public Member Functions
virtual void	addProperties (PropertyProxy *pp)
virtual Rect	boundingRect () const
void	colorHistogram (Rect r)
QString	fileName () const
void	grayFilter (int tol, int threshold)
virtual bool	hasProperties ()
void	highPassFilter (int hThres, int sThres, int vThres)
QRgb *	image (int &n)
	ImageLayer (AxisWindow *parent=0)
void	loadImage (QString fileName)
void	loadImage ()
void	lowPassFilter (int hThres, int sThres, int vThres)
virtual bool	mouseReleaseEvent (QMouseEvent *e, int id=-1)
const Point2D &	origin () const
Point2D &	origin ()
virtual void	properties (PropertyWidget *w) const
void	redPassFilter ()
const QList< ReferencePoint > &	references () const
virtual void	removeProperties (PropertyProxy *pp)
const Point2D &	scale () const
Point2D &	scale ()
void	setFileName (QString s)
void	setOrigin (const Point2D &o)
virtual void	setProperty (uint wid, int pid, QVariant val)
void	setReferences (const QList< ReferencePoint > &ref)
void	setScale (const Point2D &s)
void	setScaling ()
void	setXOrigin (double s)
void	setXScale (double s)
void	setYOrigin (double s)
void	setYScale (double s)
virtual void	toggleTrackingAction (bool checked, int id=-1)
virtual bool	trackRectangle (int id, double rx1, double ry1, double rx2, double ry2, Qt::KeyboardModifiers m)
virtual const QString &	xml_tagName () const
double	xOrigin () const
double	xScale () const
double	yOrigin () const
double	yScale () const
	~ImageLayer ()
Static Public Member Functions
static void	scaling (const QList< ReferencePoint > ref, Point2D &origin, Point2D &scale)
Static Public Attributes
static const QString	xmlImageLayerTag = "ImageLayer"
Protected Member Functions
virtual void	paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual void	xml_polish (XML_POLISH_ARGS)
virtual void	xml_writeChildren (XML_WRITECHILDREN_ARGS) const
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const
Properties
QString	imageFile
double	xOrigin
double	xScale
double	yOrigin
double	yScale

---

Detailed Description

A ImageLayer is a layer to plot a scaled bitmap.

---

Member Enumeration Documentation

enum SciFigs::ImageLayer::TrackingModes

Enumerator:

Scale
Histogram

{Scale=0, Histogram};

---

Constructor & Destructor Documentation

SciFigs::ImageLayer::ImageLayer

(

AxisWindow *

parent = 0

)

References QGpCoreTools::Point2D::setX(), QGpCoreTools::Point2D::setY(), and TRACE.

                                          :
    GraphContentLayer(parent)
{
  TRACE;
  _scale.setX(1.0); // 1 pixel/cm
  _scale.setY(-1.0); // 1 pixel/cm, reversed
}

SciFigs::ImageLayer::~ImageLayer

(

)

References TRACE.

{
  TRACE;
}

---

Member Function Documentation

void SciFigs::ImageLayer::addProperties

(

PropertyProxy *

pp

)

[virtual]

Setup property editor

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::ImageLayerProperties::addLayer(), QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::currentTabWidget(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), TRACE, and w.

{
  TRACE;
  if(pp->setCurrentTab(_tabImage)) {
    pp->addReference(this);
    ImageLayerProperties * w=static_cast<ImageLayerProperties *>(pp->currentTabWidget());
    w->addLayer(this);
  } else {
    ImageLayerProperties * w=new ImageLayerProperties;
    pp->addTab(_tabImage, tr("Image"), w, this);
    w->addLayer(this);
  }
}

Rect SciFigs::ImageLayer::boundingRect

(

)

const [virtual]

Implements SciFigs::GraphContentLayer.

References TRACE, QGpCoreTools::Point2D::x(), and QGpCoreTools::Point2D::y().

Referenced by colorHistogram(), and paintData().

{
  TRACE;
  double iWidth=_trueImage.width()*_scale.x();
  double iHeight=_trueImage.height()*_scale.y();
  return Rect(_origin.x(), _origin.y(), _origin.x()+iWidth, _origin.y()+iHeight);
}

void SciFigs::ImageLayer::colorHistogram

(

Rect

r

)

References boundingRect(), editedColors(), SciFigs::GraphContentLayer::graph(), image(), QGpCoreTools::Rect::intersect(), TRACE, w, QGpCoreTools::Point2D::x(), QGpCoreTools::Rect::x1(), QGpCoreTools::Rect::x2(), QGpCoreTools::Point2D::y(), QGpCoreTools::Rect::y1(), and QGpCoreTools::Rect::y2().

Referenced by trackRectangle().

{
  TRACE;
  if(_trueImage.isNull() || _trueImage.depth()!=32)
    return ;
  // Extract a copy of main image inside r
  Rect imageRect=r.intersect(boundingRect());
  double imageWidth=imageRect.x2() - imageRect.x1();
  double imageHeight=imageRect.y2() - imageRect.y1();
  QImage tmp=_trueImage.copy(( int) ((imageRect.x1()-_origin.x())*_scale.x()),
                                _trueImage.height()
                                - (int) ((imageRect.y2()-_origin.y())*_scale.y()),
                                (int) (imageWidth * _scale.x()),
                                (int) (imageHeight * _scale.y()) );
  int n=1 << 24;
  int * colors=new int[ n ];
  int i;
  for(i=0;i < n;i++ )
    colors[ i ]=0;
  QRgb * image=(QRgb * ) tmp.bits();
  n=tmp.numBytes() >> 2;
  int index;
  printf( "Number pixels: %i\n", n);
  printf( "Width: %i Height: %i\n", tmp.width(), tmp.height());
  for(i=0;i < n;i++, image++ ) {
    index=*image & 0x00FFFFFF;
    colors[ index ] ++;
  }
  // Count the number of non-null values
  n=1 << 24;
  int count=0;
  for(i=0;i < n;i++ ) {
    if(colors[ i ]!=0)
      count++;
  }
  printf( "Number different colors: %i\n", count);
  QRgb * diffColors=new QRgb[ count ];
  int * diffCount=new int[ count ];
  count=0;
  for(i=0;i < n;i++, image++ ) {
    if(colors[ i ]!=0) {
      diffColors[ count ]=i | 0xFF000000;
      diffCount[ count ]=colors[ i ];
      count++;
    }
  }
  delete [] colors;
  // Plot the histogram
  emit editedColors(diffColors, count);
  ColorHistogram * w =
    new ColorHistogram(diffColors, diffCount, count, graph() ->window());
  w->show();
}

void SciFigs::ImageLayer::editedColors	(	QRgb *	colors,
		int	numC
	)		[signal]

Referenced by colorHistogram().

QString SciFigs::ImageLayer::fileName

(

)

const [inline]

Referenced by properties().

{return _fileName;}

void SciFigs::ImageLayer::grayFilter	(	int	tol,
		int	threshold
	)

References QGpCoreTools::abs(), SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), image(), and TRACE.

{
  TRACE;
  if(_trueImage.isNull() || _trueImage.depth()!=32)
    return ;
  QRgb * image=(QRgb * ) _trueImage.bits();
  int n=_trueImage.numBytes() >> 2;
  for(int i=0;i < n;i++, image++ ) {
    QRgb& pix=*image;
    if(abs( qRed(pix) - qGreen(pix) ) < tol &&
         abs(qRed( pix) - qBlue(pix) ) < tol &&
         abs(qGreen( pix) - qBlue(pix) ) < tol &&
         qRed(pix) > threshold) {
      pix=0xFFFFFFFF;
    }
  }
  graphContent() ->deepUpdate();
}

virtual bool SciFigs::ImageLayer::hasProperties

(

)

[inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

{return true;}

void SciFigs::ImageLayer::highPassFilter	(	int	hThres,
		int	sThres,
		int	vThres
	)

References SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), image(), and TRACE.

{
  TRACE;
  if(_trueImage.isNull() || _trueImage.depth()!=32)
    return ;
  QRgb * image=(QRgb * ) _trueImage.bits();
  int n=_trueImage.numBytes() >> 2;
  int h, v, s;
  for(int i=0;i < n;i++, image++ ) {
    if( *image!=0xFFFFFFFF) {
      QColor pix( *image);
      pix.getHsv(&h, &s, &v);
      if(h <= hThres || s <= sThres || v <= vThres)
        * image=0xFFFFFFFF;
    }
  }
  graphContent() ->deepUpdate();
}

QRgb * SciFigs::ImageLayer::image

(

int &

n

)

References TRACE.

Referenced by colorHistogram(), grayFilter(), highPassFilter(), lowPassFilter(), and redPassFilter().

{
  TRACE;
  if(_trueImage.isNull() || _trueImage.depth()!=32)
    return 0;
  n=_trueImage.numBytes() >> 2;
  return (QRgb * ) _trueImage.bits();
}

void SciFigs::ImageLayer::loadImage

(

QString

fileName

)

References loadImage(), SciFigs::GraphicObject::pixelImageFilter, setFileName(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  if(fileName.isEmpty()) {
    fileName=Message::getOpenFileName(tr( "Open an existing image" ), GraphicObject::pixelImageFilter);
    QFileInfo finfo(fileName);
    fileName=finfo.absoluteFilePath();
  }
  if(fileName.length() && QFileInfo(fileName).exists()) {
    setFileName(fileName);
    loadImage();
  }
}

void SciFigs::ImageLayer::loadImage

(

)

References SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), and TRACE.

Referenced by loadImage(), and setProperty().

{
  TRACE;
  _trueImage.load(_fileName);
  graphContent()->deepUpdate();
}

void SciFigs::ImageLayer::lowPassFilter	(	int	hThres,
		int	sThres,
		int	vThres
	)

References SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), image(), and TRACE.

{
  TRACE;
  if(_trueImage.isNull() || _trueImage.depth()!=32)
    return ;
  QRgb * image=(QRgb * ) _trueImage.bits();
  int n=_trueImage.numBytes() >> 2;
  int h, v, s;
  for(int i=0;i < n;i++, image++ ) {
    if( *image!=0xFFFFFFFF) {
      QColor pix( *image);
      pix.getHsv(&h, &s, &v);
      if(h >= hThres || s >= sThres || v >= vThres)
        * image=0xFFFFFFFF;
    }
  }
  graphContent() ->deepUpdate();
}

bool SciFigs::ImageLayer::mouseReleaseEvent	(	QMouseEvent *	e,
		int	id = -1
	)		[virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::GraphContentLayer::graphContent(), pointPicked(), and TRACE.

{
  TRACE;
  switch(id) {
  case Scale:
    emit pointPicked(r2i(graphContent()->options().s2r(e->pos())));
    return true;
  default:
    return false;
  }
}

const Point2D& SciFigs::ImageLayer::origin

(

)

const [inline]

{return _origin;}

Point2D& SciFigs::ImageLayer::origin

(

)

[inline]

{return _origin;}

void SciFigs::ImageLayer::paintData	(	const LayerPainterRequest &	lp,
		QPainter &	p,
		double	dotpercm
	)		const [protected, virtual]

Implements SciFigs::GraphContentLayer.

References SciFigs::GraphContentOptions::ax(), SciFigs::GraphContentOptions::ay(), boundingRect(), QGpCoreTools::Rect::intersect(), SciFigs::Scale::isEffectivelyReversed(), SciFigs::LayerPainterRequest::options(), SciFigs::GraphContentOptions::scaleX(), SciFigs::GraphContentOptions::scaleY(), SciFigs::LayerPainterRequest::terminated(), TRACE, QGpCoreTools::Point2D::x(), SciFigs::GraphContentOptions::xr2s(), SciFigs::GraphContentOptions::xVisMax(), SciFigs::GraphContentOptions::xVisMin(), QGpCoreTools::Point2D::y(), SciFigs::GraphContentOptions::yr2s(), SciFigs::GraphContentOptions::yVisMax(), and SciFigs::GraphContentOptions::yVisMin().

{
  TRACE;
  if(_trueImage.isNull())
    return ;
  const GraphContentOptions& gc=lp.options();
  Rect visRect(gc.xVisMin(), gc.yVisMin(), gc.xVisMax(), gc.yVisMax());
  visRect=visRect.intersect(boundingRect());
  if(visRect.width()>0 && visRect.height()>0) {
    if(lp.terminated()) return;
    QRect imRect(r2i(visRect.topLeft()), r2i(visRect.bottomRight()));
    QImage tmp=_trueImage.copy(imRect.normalized());
    if(lp.terminated()) return;
    QMatrix matrix;
    matrix.scale(gc.ax()*_scale.x(), gc.ay()*_scale.y());
    if(lp.terminated()) return;
    if(!tmp.isNull()) {
      int x, y;
      if(gc.scaleX().isEffectivelyReversed())
        x=gc.xr2s(visRect.x2());
      else
        x=gc.xr2s(visRect.x1());
      if(gc.scaleY().isEffectivelyReversed())
        y=gc.yr2s(visRect.y1());
      else
        y=gc.yr2s(visRect.y2());
      p.drawImage(x, y, tmp.transformed(matrix, Qt::SmoothTransformation) );
    }
  }
}

void SciFigs::ImageLayer::pointPicked

(

QPoint

p

)

[signal]

Referenced by mouseReleaseEvent().

void SciFigs::ImageLayer::properties

(

PropertyWidget *

w

)

const [virtual]

Reimplemented from SciFigs::GraphContentLayer.

References fileName(), SciFigs::ImageLayerProperties::ImageFile, QGpGuiTools::PropertyWidget::setValue(), TRACE, QGpCoreTools::Point2D::x(), SciFigs::ImageLayerProperties::XOrigin, SciFigs::ImageLayerProperties::XScale, QGpCoreTools::Point2D::y(), SciFigs::ImageLayerProperties::YOrigin, and SciFigs::ImageLayerProperties::YScale.

{
  TRACE;
  w->setValue(ImageLayerProperties::XOrigin, _origin.x());
  w->setValue(ImageLayerProperties::YOrigin, _origin.y());
  w->setValue(ImageLayerProperties::XScale, _scale.x());
  w->setValue(ImageLayerProperties::YScale, _scale.y());
  w->setValue(ImageLayerProperties::ImageFile, fileName());
}

void SciFigs::ImageLayer::redPassFilter

(

)

References SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), image(), and TRACE.

{
  TRACE;
  if(_trueImage.isNull() || _trueImage.depth()!=32)
    return ;
  QRgb * image=(QRgb * ) _trueImage.bits();
  int n=_trueImage.numBytes() >> 2;
  for(int i=0;i < n;i++, image++ ) {
    QRgb& pix=*image;
    if(qRed( pix) < qGreen(pix) ||
         qRed(pix) < qBlue(pix) )
      pix=0xFFFFFFFF;
  }
  graphContent() ->deepUpdate();
}

const QList<ReferencePoint>& SciFigs::ImageLayer::references

(

)

const [inline]

{return _references;}

void SciFigs::ImageLayer::removeProperties

(

PropertyProxy *

pp

)

[virtual]

Clean property editor

Reimplemented from SciFigs::GraphContentLayer.

References QGpGuiTools::PropertyProxy::currentTabWidget(), SciFigs::ImageLayerProperties::removeLayer(), QGpGuiTools::PropertyProxy::removeTab(), QGpGuiTools::PropertyProxy::setCurrentTab(), TRACE, and w.

{
  TRACE;
  if(pp->setCurrentTab(_tabImage)) {
    ImageLayerProperties * w=static_cast<ImageLayerProperties *>(pp->currentTabWidget());
    w->removeLayer(this);
    pp->removeTab(_tabImage, this);
  }
}

const Point2D& SciFigs::ImageLayer::scale

(

)

const [inline]

{return _scale;}

Point2D& SciFigs::ImageLayer::scale

(

)

[inline]

{return _scale;}

void SciFigs::ImageLayer::scaling	(	const QList< ReferencePoint >	ref,
		Point2D &	origin,
		Point2D &	scale
	)		[static]

References SciFigs::ImageLayer::ReferencePoint::image(), QGpCoreTools::Curve< pointType >::leastSquare(), SciFigs::ImageLayer::ReferencePoint::real(), QGpCoreTools::Point2D::setX(), QGpCoreTools::Point2D::setY(), QGpCoreTools::Point2D::x(), and QGpCoreTools::Point2D::y().

Referenced by setScaling().

{
  int n=ref.count();
  if(n>1) {
    Curve<Point2D> c(n);
    double a, b;
    for(int i=0; i<n; i++) {
      const ReferencePoint& p=ref.at(i);
      c[i]=Point2D(p.image().x(), p.real().x());
    }
    c.leastSquare(a, b);
    origin.setX(b);
    scale.setX(a);
    for(int i=0; i<n; i++) {
      const ReferencePoint& p=ref.at(i);
      c[i]=Point2D(p.image().y(), p.real().y());
    }
    c.leastSquare(a, b);
    origin.setY(b);
    scale.setY(a);
  }
}

void SciFigs::ImageLayer::setFileName

(

QString

s

)

[inline]

Referenced by loadImage(), and setProperty().

{_fileName=s;}

void SciFigs::ImageLayer::setOrigin

(

const Point2D &

o

)

[inline]

{_origin=o;}

void SciFigs::ImageLayer::setProperty	(	uint	wid,
		int	pid,
		QVariant	val
	)		[virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), SciFigs::ImageLayerProperties::ImageFile, loadImage(), setFileName(), QGpCoreTools::Point2D::setX(), QGpCoreTools::Point2D::setY(), TRACE, SciFigs::ImageLayerProperties::XOrigin, SciFigs::ImageLayerProperties::XScale, SciFigs::ImageLayerProperties::YOrigin, and SciFigs::ImageLayerProperties::YScale.

{
  TRACE;
  switch(pid) {
  case ImageLayerProperties::XOrigin:
    _origin.setX(val.toDouble());
    break;
  case ImageLayerProperties::YOrigin:
    _origin.setY(val.toDouble());
    break;
  case ImageLayerProperties::XScale:
    _scale.setX(val.toDouble());
    break;
  case ImageLayerProperties::YScale:
    _scale.setY(val.toDouble());
    break;
  case ImageLayerProperties::ImageFile:
    setFileName(val.toString());
    loadImage();
    break;
  }
  graphContent()->deepUpdate();
}

void SciFigs::ImageLayer::setReferences

(

const QList< ReferencePoint > &

ref

)

[inline]

{_references=ref;}

void SciFigs::ImageLayer::setScale

(

const Point2D &

s

)

[inline]

{_scale=s;}

void SciFigs::ImageLayer::setScaling

(

)

References scaling(), and TRACE.

{
  TRACE;
  scaling(_references, _origin, _scale);
}

void SciFigs::ImageLayer::setXOrigin

(

double

s

)

[inline]

{_origin.setX(s);}

void SciFigs::ImageLayer::setXScale

(

double

s

)

[inline]

{_scale.setX(s);}

void SciFigs::ImageLayer::setYOrigin

(

double

s

)

[inline]

{_origin.setY(s);}

void SciFigs::ImageLayer::setYScale

(

double

s

)

[inline]

{_scale.setY(s);}

void SciFigs::ImageLayer::toggleTrackingAction	(	bool	checked,
		int	id = -1
	)		[virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::GraphContentLayer::beginMouseTracking(), SciFigs::GraphContentLayer::endMouseTracking(), SciFigs::GraphContentLayer::isMouseTracking(), SciFigs::LayerMouseTracking::setId(), SciFigs::LayerMouseTracking::setIdleCursor(), SciFigs::LayerMouseTracking::setRectangle(), SciFigs::LayerMouseTracking::showRectangle(), and TRACE.

Referenced by SciFigs::ImageLayerProperties::removeLayer().

{
  TRACE;
  if(id==-1) {
    QAction * a=qobject_cast<QAction *>(sender());
    if(!a) return;
    id=a->data().toInt();
  }
  if(checked) {
    if(!isMouseTracking(id)) {
      LayerMouseTracking mt(this);
      mt.setId(id);
      switch (id) {
      case Scale:
        mt.setIdleCursor(QPixmap(":/images/scalecursor.png"), 4, 4);
        break;
      case Histogram:
        mt.setIdleCursor(QPixmap(":/images/histogramcursor.png"), 4, 4);
        mt.setRectangle(true);
        mt.showRectangle();
        break;
      default:
        return; // Do not start mouse tracking
      }
      beginMouseTracking(mt);
    }
  } else {
    if(isMouseTracking(id)) {
      endMouseTracking(id);
    }
  }
}

bool SciFigs::ImageLayer::trackRectangle	(	int	id,
		double	rx1,
		double	ry1,
		double	rx2,
		double	ry2,
		Qt::KeyboardModifiers	m
	)		[virtual]

Reimplemented from SciFigs::GraphContentLayer.

References colorHistogram(), and TRACE.

{
  TRACE;
  if(id==Histogram) {
    Rect r(rx1, ry1, rx2, ry2);
    colorHistogram(r);
  }
  return true;
}

XMLMember SciFigs::ImageLayer::xml_member

(

XML_MEMBER_ARGS

)

[protected, virtual]

Q PROPERTIES are part of data, unlike other types of layer

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), QGpCoreTools::XMLClass::qobject_member(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    if(tag=="ReferencePoint") {
      _references.append(ReferencePoint());
      return XMLMember(&_references.last());
    } else {
      return qobject_member(this, tag, attributes, context);
    }
  }
  return XMLMember(XMLMember::Unknown);
}

virtual void SciFigs::ImageLayer::xml_polish

(

XML_POLISH_ARGS

)

[inline, protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

{Q_UNUSED(context); loadImage();}

virtual const QString& SciFigs::ImageLayer::xml_tagName

(

)

const [inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

{return xmlImageLayerTag;}

void SciFigs::ImageLayer::xml_writeChildren

(

XML_WRITECHILDREN_ARGS

)

const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References SciFigs::XMLSciFigs::data(), TRACE, and QGpCoreTools::XMLClass::xml_save().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    for(QList<ReferencePoint>::const_iterator it=_references.begin(); it!=_references.end(); it++) {
      it->xml_save(s, context);
    }
  }
}

void SciFigs::ImageLayer::xml_writeProperties

(

XML_WRITEPROPERTIES_ARGS

)

const [protected, virtual]

Q PROPERTIES are part of data, unlike other types of layer

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), QGpCoreTools::XMLClass::qobject_writeProperties(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    qobject_writeProperties(this, this, s, context);
  }
}

double SciFigs::ImageLayer::xOrigin

(

)

const [inline]

{return _origin.x();}

double SciFigs::ImageLayer::xScale

(

)

const [inline]

{return _scale.x();}

double SciFigs::ImageLayer::yOrigin

(

)

const [inline]

{return _origin.y();}

double SciFigs::ImageLayer::yScale

(

)

const [inline]

{return _scale.y();}

---

Member Data Documentation

const QString SciFigs::ImageLayer::xmlImageLayerTag = "ImageLayer" [static]

---

Property Documentation

QString SciFigs::ImageLayer::imageFile [read, write]

double SciFigs::ImageLayer::xOrigin [read, write]

double SciFigs::ImageLayer::xScale [read, write]

double SciFigs::ImageLayer::yOrigin [read, write]

double SciFigs::ImageLayer::yScale [read, write]

---

The documentation for this class was generated from the following files:

• SciFigs/ImageLayer.h
• SciFigs/ImageLayer.cpp
