The ImageWidget is a widget that contains an image and that can be printed. More...

#include <ImageWidget.h>

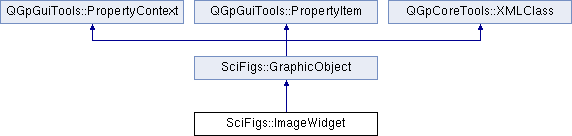

Inheritance diagram for SciFigs::ImageWidget:

Public Member Functions
virtual void	addProperties (PropertyProxy *pp)
QString	fileName () const
	ImageWidget (QWidget *parent=0)
void	loadImage ()
virtual void	properties (PropertyWidget *w) const
virtual void	removeProperties (PropertyProxy *pp)
void	setFileName (QString s)
virtual void	setProperty (uint wid, int pid, QVariant val)
virtual const QString &	xml_tagName () const
	~ImageWidget ()
Static Public Attributes
static const QString	xmlImageWidgetTag = "ImageWidget"
Properties
bool	fixedXYRatio
QString	imageFile
QString	imageFormat

Detailed Description

The ImageWidget is a widget that contains an image and that can be printed.

It is usually docked in GraphicSheet to construct complex figures including results from other software not producing results complying with SciFigs strandards (".page" or similar files).

Constructor & Destructor Documentation

SciFigs::ImageWidget::ImageWidget ( QWidget * parent = 0 )

References SciFigs::GraphicObject::setConstantWidthHeightRatio(), and TRACE.

                                         :
    GraphicObject(parent)
{
  TRACE;
  setConstantWidthHeightRatio(true);
}

SciFigs::ImageWidget::~ImageWidget ( )

References TRACE.

{
  TRACE;
}

Member Function Documentation

void SciFigs::ImageWidget::addProperties ( PropertyProxy * pp ) [virtual]

Setup property editor

Reimplemented from SciFigs::GraphicObject.

References QGpGuiTools::PropertyProxy::addCategory(), QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::setCurrentCategory(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  GraphicObject::addProperties(pp);
  if( !pp->setCurrentCategory(_category) ) {
    pp->addCategory(_category, tr("Image"), QIcon( ":/images/ImageWidget.png"));
  }
  if(pp->setCurrentTab(_tabLink)) {
    pp->addReference(this);
  } else {
    ImageWidgetProperties * w=new ImageWidgetProperties;
    pp->addTab(_tabLink, tr("Link"), w, this);
  }
}

QString SciFigs::ImageWidget::fileName ( ) const [inline]

Referenced by properties().

{return _fileName;}

void SciFigs::ImageWidget::loadImage ( )

References SciFigs::GraphicObject::_printHeight, SciFigs::GraphicObject::_printWidth, SciFigs::GraphicObject::setPrintResolution(), SciFigs::GraphicObject::sizeChanged(), QGpCoreTools::tr(), and TRACE.

Referenced by setProperty().

{
  TRACE;
  if(_fileName.length() > 0) {
    QFileInfo fi(_fileName);
    if(!fi.exists()) {
      QString fn=Application::instance()->translatePath(_fileName, tr("Open an existing image"),
                                                           tr( "Image file (%1)" ));
      if(fn.isEmpty()) return;
      fi.setFile(fn);
    }
    if(fi.exists()) {
      _fileName=fi.absoluteFilePath();
      _trueImage.load(_fileName);
      // With Qt4, even for a PNG the deduced resolution is always the ScreenResolution
      double xResol=(double) _trueImage.dotsPerMeterX() * 0.01;
      double yResol=(double) _trueImage.dotsPerMeterY() * 0.01;
      if(xResol==0.0) xResol=118.11; // 300 dpi converted in dot/cm
      if(yResol==0.0) yResol=118.11; // 300 dpi converted in dot/cm
      _printWidth=(double) _trueImage.width()/xResol;
      _printHeight=(double) _trueImage.height()/yResol;
      double maxResol=xResol;
      if(yResol > maxResol) maxResol=yResol;
      setPrintResolution(( int) floor(maxResol * 2.54 + 0.5) ); // in dpi
      emit sizeChanged();
      update();
    }
  }
}

void SciFigs::ImageWidget::properties ( PropertyWidget * w ) const [virtual]

Reimplemented from SciFigs::GraphicObject.

References fileName(), QGpGuiTools::PropertyWidget::id(), SciFigs::ImageWidgetProperties::ImageFile, QGpGuiTools::PropertyWidget::setValue(), and TRACE.

{
  TRACE;
  if(w->id()==_tabLink) {
    w->setValue(ImageWidgetProperties::ImageFile, fileName());
  } else {
    GraphicObject::properties(w);
  }
}

void SciFigs::ImageWidget::removeProperties ( PropertyProxy * pp ) [virtual]

Cleanup property editor

Reimplemented from SciFigs::GraphicObject.

References QGpGuiTools::PropertyProxy::removeTab(), QGpGuiTools::PropertyProxy::setCurrentCategory(), and TRACE.

{
  TRACE;
  GraphicObject::removeProperties(pp);
  if(pp->setCurrentCategory(_category) ) {
    pp->removeTab(_tabLink, this);
  }
}

void SciFigs::ImageWidget::setFileName ( QString s ) [inline]

Referenced by setProperty().

{_fileName=s;}

void SciFigs::ImageWidget::setProperty	(	uint	wid,
		int	pid,
		QVariant	val
	)		`[virtual]`

Set value val to property id, after a user action in property editor

Reimplemented from SciFigs::GraphicObject.

References SciFigs::ImageWidgetProperties::ImageFile, loadImage(), setFileName(), and TRACE.

{
  TRACE;
  if(wid==_tabLink) {
    switch(pid) {
    case ImageWidgetProperties::ImageFile:
      setFileName(val.toString());
      loadImage();
      break;
    }
  } else {
    GraphicObject::setProperty(wid, pid, val);
  }
}
