Dear sir,
As per your suggestions, I am sending you the screen capture of one of our databases loaded in Geopsy as well as another processing software such as SEISAN.
Sensors are Teledyne Geotech S13 & Trillium 120...etc.
Please suggest.

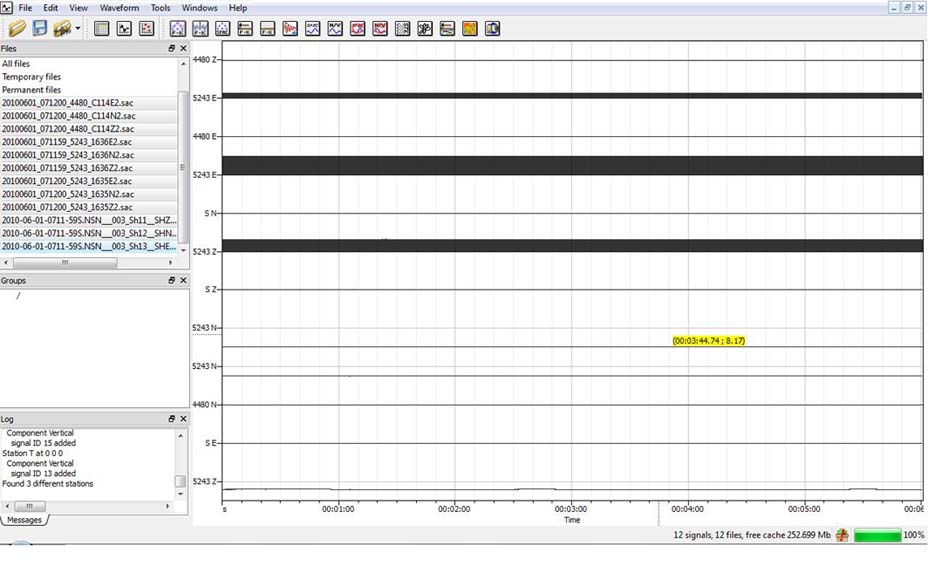

Screen capture of GEOPSY

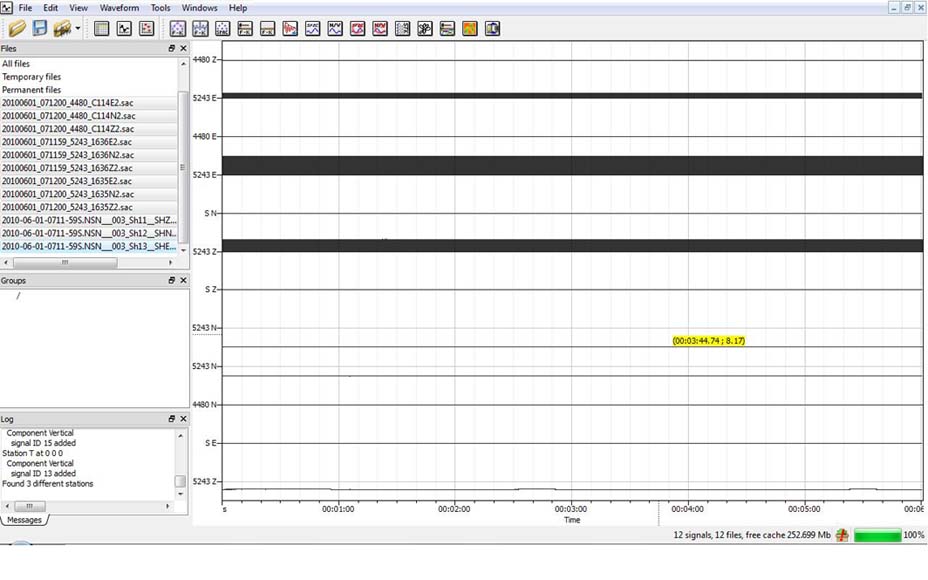

Screen capture of GEOPSY
- Attachments
-
- Screen Capure 11.jpg
- In Geopsy
- (82.78 KiB) Downloaded 154 times
-

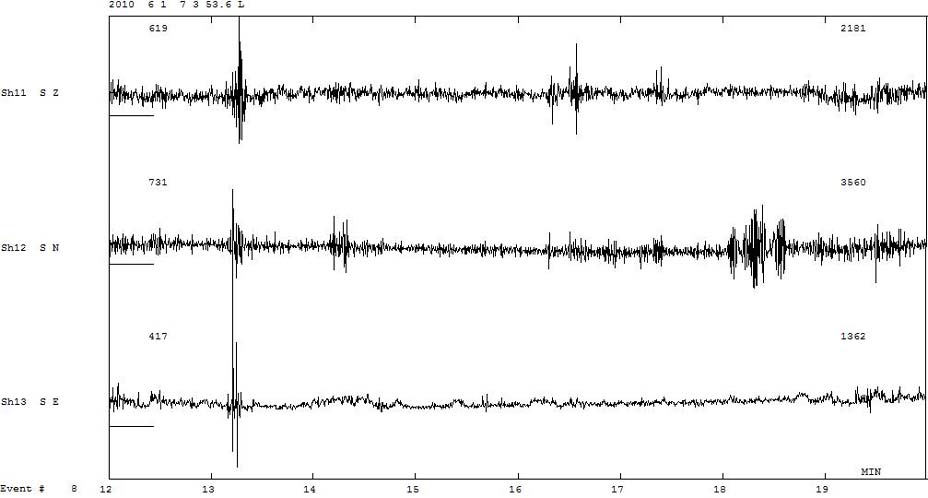

- Screen Capure 44.jpg
- In Seisan software
- (62.44 KiB) Downloaded 165 times
The black lines are produced by option "Variable Area" which is the default setting (common for refraction and reflection surveys). A black area is plotted between the positive amplitude and the zero base line. They appear like this because your signal have a significant base line offset.
If you upgrade to the latest release (>=20100616), the signal viewer is equipped with buttons at the bottom to adjust the visualization gain, time zoom, and automatic offset removal.
For your particular case, you can remove the 'Visible offset' (see 'Layer' properties or new buttons at the bottom) and increase the normalization factor ( see 'Layer' properties or new buttons at the bottom). You will get similar results to those plotted in SEISAN.
If you upgrade to the latest release (>=20100616), the signal viewer is equipped with buttons at the bottom to adjust the visualization gain, time zoom, and automatic offset removal.
For your particular case, you can remove the 'Visible offset' (see 'Layer' properties or new buttons at the bottom) and increase the normalization factor ( see 'Layer' properties or new buttons at the bottom). You will get similar results to those plotted in SEISAN.
