The Konno and Ohmachi (1998) [1] smoothing is defined by the following function: Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://wikimedia.org/api/rest_v1/":): {\displaystyle \left(\frac{\sin(b\log_{10}(\frac{f}{f_c})}{b\log_{10}(\frac{f}{f_c})}\right)^4} , where:

  • Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://wikimedia.org/api/rest_v1/":): {\displaystyle f} is the frequency
  • Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://wikimedia.org/api/rest_v1/":): {\displaystyle f_c} is the central frequency
  • Failed to parse (MathML with SVG or PNG fallback (recommended for modern browsers and accessibility tools): Invalid response ("Math extension cannot connect to Restbase.") from server "https://wikimedia.org/api/rest_v1/":): {\displaystyle b} is the bandwidth coefficient.

Konno and Ohmachi smoothing function is strongly recommended for frequency analysis because it ensures a constant number points at low and high frequency.

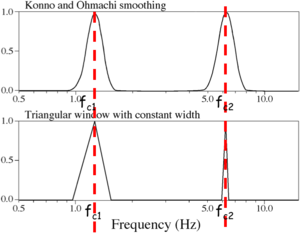

Comparison between Konno and Ohmachi and triangular window smoothing.

References

  1. ↑ Konno, K. and Omachi, T., 1998, Bull. Seism. Soc. Am., 88, 228-241.
