Brief description of class still missing. More...

#include <SignalLayer.h>

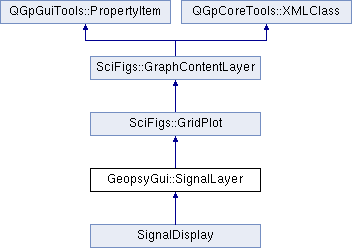

Inheritance diagram for GeopsyGui::SignalLayer:

Public Types
enum	Clip { NoClip, ClipOverlap, ClipValue, ClipPercentage }
enum	Normalize { NormalizeAll, NormalizeOne, NormalizeVisibleAll, NormalizeVisibleOne, NormalizeValue }
enum	Offset { NoOffset, GlobalOffset, VisibleOffset }
enum	TimeRange { AvailableRange, AroundPickRange, CustomRange }
enum	YAxis { ViewerIndex, Receiver, SignalName, Overlayed }
Signals
void	propertiesChanged ()
Public Member Functions
virtual void	addProperties (PropertyProxy *pp)
double	afterPickDelay () const
const QString &	aroundPickName () const
double	beforePickDelay () const
virtual Rect	boundingRect () const
void	clearSignalColors ()
Clip	clip () const
double	clipPerc () const
QString	clipString () const
double	clipValue () const
const TimeRangeParameters &	customTimeRange () const
bool	grid () const
virtual bool	hasProperties ()
void	highlightSignal (const GraphContentOptions &gc, QPainter &p, int w, int iSig, int isigmin, int isigmax) const
void	minMaxY (double &min, double &max) const
Normalize	normalize () const
QString	normalizeString () const
double	normalizeValue () const
Offset	offset () const
QString	offsetString () const
double	overlap () const
virtual void	properties (PropertyWidget *w) const
virtual void	removeProperties (PropertyProxy *pp)
void	setAfterPickDelay (double d)
void	setAroundPickName (const QString &pn)
void	setBeforePickDelay (double d)
void	setClip (Clip c)
void	setClip (QString c)
void	setClipPerc (double v)
void	setClipValue (double v)
void	setCustomTimeRange (const TimeRangeParameters &ctr)
void	setGrid (bool b)
void	setNormalize (Normalize n)
void	setNormalize (QString n)
void	setNormalizeValue (double v)
void	setOffset (Offset o)
void	setOffset (QString n)
void	setOverlap (double v)
virtual void	setProperty (uint wid, int pid, QVariant val)
void	setReceiverYAxis (bool rc)
void	setSignalColor (const Signal *sig, const QColor &c)
void	setTimeRange (TimeRange tr)
void	setTimeRange (QString tr)
void	setVariableArea (bool b)
void	setWiggleTrace (bool b)
void	setYAxis (YAxis a)
void	setYAxis (QString a)
int	signalAt (int yPos, double &baseDistance) const
const QColor &	signalColor (const Signal *sig) const
	SignalLayer (AxisWindow *parent=0)
void	signalsUpdate ()
void	sigYBoundaries (int index, double overlap, QRect &bound) const
const SubSignalPool *	subPool () const
void	subPoolUpdate (SubSignalPool *subPool=0)
TimeRange	timeRange () const
QString	timeRangeString () const
bool	variableArea () const
bool	wiggleTrace () const
virtual const QString &	xml_tagName () const
YAxis	yAxis () const
QString	yAxisString () const
	~SignalLayer ()
Static Public Attributes
static const QString	xmlSignalLayerTag = "SignalLayer"
Protected Member Functions
void	drawGaps (const GraphContentOptions &gc, QPainter &p, const Signal *sig, int iSig) const
void	drawingAmplitude (const Signal *sig, int itmin, int itmax, double &valClip, double &affMax) const
void	drawSignal (const GraphContentOptions &gc, QPainter &p, const Signal *sig, int iSig, int itmin, int itmax, double x0, double dx, bool allSamplesVisible, double affMax, int pixelWidth, bool variableArea, bool wiggleTrace) const
virtual bool	keyPressEvent (QKeyEvent *e)
double	maxAmplitude (const GraphContentOptions &gc) const
virtual void	paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const
void	setIsigMinMax (const GraphContentOptions &gc, int &isigmin, int &isigmax) const
void	updateGrid ()
bool	visibleSamples (const GraphContentOptions &gc, const Signal *sig, int &itmin, int &itmax, double &x0, double &dx) const
void	visibleSamples (const GraphContentOptions &gc, const Signal *sig, int &itmin, int &itmax) const
virtual bool	wheelEvent (QWheelEvent *e)
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual void	xml_polish (XML_POLISH_ARGS)
virtual void	xml_polishChild (XML_POLISHCHILD_ARGS)
virtual bool	xml_setProperty (XML_SETPROPERTY_ARGS)
virtual void	xml_writeChildren (XML_WRITECHILDREN_ARGS) const
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const
Protected Attributes
double	_afterPickDelay
QString	_aroundPickName
double	_beforePickDelay
Clip	_clip
double	_clipPerc
double	_clipValue
TimeRangeParameters	_customTimeRange
Grid2D< double > *	_gridPlot
Normalize	_normalize
double	_normalizeValue
Offset	_offset
double	_overlap
QMap< const Signal *, QColor >	_signalColors
QMap< const Signal *, double >	_signalOverlaps
QVector< double >	_signalY
SubSignalPool *	_subPool
bool	_subPoolOwner
TimeRange	_timeRange
bool	_variableArea
bool	_wiggleTrace
YAxis	_yAxis
Static Protected Attributes
static uint	_tab = PropertyProxy::uniqueId()
Properties
double	afterPickDelay
QString	aroundPickName
double	beforePickDelay
QString	clip
double	clipPerc
double	clipValue
bool	grid
QString	norm
QString	normalize
double	normalizeValue
double	normValue
QString	offset
double	overlap
bool	smoothGrid
QString	timeRange
bool	useReceiverCoord
bool	variableArea
bool	wiggleTrace
QString	yAxis
Friends
class	PickLayer
class	TimeWindowLayer

Detailed Description

Brief description of class still missing.

Full description of class still missing

Member Enumeration Documentation

enum GeopsyGui::SignalLayer::Clip

Enumerator:

NoClip
ClipOverlap
ClipValue
ClipPercentage

{NoClip, ClipOverlap, ClipValue, ClipPercentage};

enum GeopsyGui::SignalLayer::Normalize

Enumerator:

NormalizeAll
NormalizeOne
NormalizeVisibleAll
NormalizeVisibleOne
NormalizeValue

                 {NormalizeAll, NormalizeOne,
                   NormalizeVisibleAll, NormalizeVisibleOne,
                   NormalizeValue};

enum GeopsyGui::SignalLayer::Offset

Enumerator:

NoOffset
GlobalOffset
VisibleOffset

{NoOffset, GlobalOffset, VisibleOffset};

enum GeopsyGui::SignalLayer::TimeRange

Enumerator:

AvailableRange
AroundPickRange
CustomRange

{AvailableRange, AroundPickRange, CustomRange};

enum GeopsyGui::SignalLayer::YAxis

Enumerator:

ViewerIndex
Receiver
SignalName
Overlayed

{ViewerIndex, Receiver, SignalName, Overlayed};

Constructor & Destructor Documentation

GeopsyGui::SignalLayer::SignalLayer ( AxisWindow * parent = 0 )

References _afterPickDelay, _beforePickDelay, _clip, _clipPerc, _clipValue, _gridPlot, _normalize, _normalizeValue, _offset, _overlap, _subPool, _subPoolOwner, _timeRange, _variableArea, _wiggleTrace, _yAxis, AvailableRange, GeopsyCore::geopsyCore, NoClip, NoOffset, NormalizeAll, SciFigs::GridPlot::setLinearPalette(), TRACE, and ViewerIndex.

                                             :
    GridPlot(parent)
{
  TRACE;
  // Required for viewing the layer in figue (through geopsyfigs plugin)
  if(!geopsyCore) {
    CoreApplication::addGlobalObject(new GeopsyGuiEngine);
  }
  _subPool=0;
  _subPoolOwner=false;
  // Trace display options
  _wiggleTrace=true;
  _variableArea=true;
  _offset=NoOffset;
  _normalize=NormalizeAll;
  _normalizeValue=1.0;
  _clip=NoClip;
  _clipPerc=50.0;
  _clipValue=1.0;
  _overlap=1.0;
  // Grid plotting options
  _gridPlot=0;
  // Y axis type options
  _yAxis=ViewerIndex;
  // Time range options
  _timeRange=AvailableRange;
  _beforePickDelay=0.02;
  _afterPickDelay=0.02;
  // Palette options
  setLinearPalette( -_overlap * 0.5, _overlap * 0.5);
}

GeopsyGui::SignalLayer::~SignalLayer ( )

References _gridPlot, _subPool, _subPoolOwner, and TRACE.

{
  TRACE;
  delete _gridPlot;
  if(_subPoolOwner) {
    delete _subPool;
  }
}

Member Function Documentation

void GeopsyGui::SignalLayer::addProperties ( PropertyProxy * pp ) [virtual]

Setup property editor

Reimplemented from SciFigs::GridPlot.

References _subPool, _tab, QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::currentTabWidget(), GeopsyGui::SignalsProperties::setCurrentSubPool(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), TRACE, and w.

{
  TRACE;
  if(pp->setCurrentTab(_tab)) {
    SignalsProperties * w=static_cast<SignalsProperties *>(pp->currentTabWidget());
    w->setCurrentSubPool(_subPool);
    pp->addReference(this);
  } else {
    SignalsProperties * w=new SignalsProperties;
    w->setCurrentSubPool(_subPool);
    pp->addTab(_tab, tr("Signals"), w, this);
  }
  GridPlot::addProperties(pp);
}

double GeopsyGui::SignalLayer::afterPickDelay ( ) const [inline]

{return _afterPickDelay;}

const QString& GeopsyGui::SignalLayer::aroundPickName ( ) const [inline]

{return _aroundPickName;}

double GeopsyGui::SignalLayer::beforePickDelay ( ) const [inline]

{return _beforePickDelay;}

Rect GeopsyGui::SignalLayer::boundingRect ( ) const [virtual]

Implements SciFigs::GraphContentLayer.

References _subPool, GeopsyCore::SubSignalPool::isEmpty(), minMaxY(), QGpCoreTools::Rect::setLimits(), GeopsyCore::TimeRange::setStart(), GeopsyCore::SubSignalPool::timeRange(), QGpCoreTools::tr(), and TRACE.

Referenced by GeopsyGui::PickLayer::boundingRect(), and GeopsyGui::TimeWindowLayer::boundingRect().

{
  TRACE;
  Rect r;
  if( !_subPool->isEmpty()) {
    ::TimeRange tr=_subPool->timeRange( );
    if(tr.start()==1e99) tr.setStart(0.0);
    if(tr.end()==-1e99) tr.setEnd(1.0);
    double ymin=0, ymax=1;
    minMaxY(ymin, ymax);
    r.setLimits(tr.start(), ymin, tr.end(), ymax);
  }
  return r;
}

void GeopsyGui::SignalLayer::clearSignalColors ( )

References _signalColors, and TRACE.

Referenced by MagnifierSignal::setSignal().

{
  TRACE;
  LayerLocker ll(this);
  _signalColors.clear();
}

Clip GeopsyGui::SignalLayer::clip ( ) const [inline]

Referenced by clipString().

{return _clip;}

double GeopsyGui::SignalLayer::clipPerc ( ) const [inline]

{return _clipPerc;}

QString GeopsyGui::SignalLayer::clipString ( ) const

References clip(), ClipOverlap, ClipPercentage, ClipValue, and TRACE.

{
  TRACE;
  switch (clip()) {
  case ClipOverlap:
    return "ClipOverlap";
  case ClipPercentage:
    return "ClipPercentage";
  case ClipValue:
    return "ClipValue";
  default:
    return "NoClip";
  };
}

double GeopsyGui::SignalLayer::clipValue ( ) const [inline]

{return _clipValue;}

const TimeRangeParameters& GeopsyGui::SignalLayer::customTimeRange ( ) const [inline]

{return _customTimeRange;}

void GeopsyGui::SignalLayer::drawGaps	(	const GraphContentOptions &	gc,
		QPainter &	p,
		const Signal *	sig,
		int	iSig
	)		const `[protected]`

References _signalY, GeopsyCore::SparseTimeRange::intersection(), GeopsyCore::SparseTimeRange::invert(), GeopsyCore::Signal::timeRange(), QGpCoreTools::tr(), SciFigs::GraphContentOptions::xr2s(), SciFigs::GraphContentOptions::xVisMax(), SciFigs::GraphContentOptions::xVisMin(), and SciFigs::GraphContentOptions::yr2s().

Referenced by paintData().

{
  const SparseTimeRange& signalRange=sig->timeRange();
  ::TimeRange gcLimits(gc.xVisMin(), gc.xVisMax());
  SparseTimeRange gaps=signalRange.invert(false);
  gaps.intersection(gcLimits);
  const QVector< ::TimeRange >& g=gaps.ranges();
  int n=g.count();
  if(n==0) return;
  p.save();
  int wtop=gc.yr2s(_signalY[ iSig ] - 0.375);
  int wheight=gc.yr2s(_signalY[ iSig ] + 0.375) - wtop;
  int * wleft=new int [ n ];
  int * wwidth=new int [ n ];
  p.setPen(QPen( Qt::NoPen) );
  p.setBrush(QBrush( QColor(254, 156, 158, 128) ));
  for(int i=0; i<n; i++) {
    const ::TimeRange& tr=g.at(i);
    wleft[ i ]=gc.xr2s(tr.start());
    wwidth[ i ]=gc.xr2s(tr.end()) - wleft[ i ];
    p.drawRect(wleft[ i ], wtop, wwidth[ i ], wheight);
  }
  p.setPen(QPen( QColor(255, 75, 78), 1, Qt::SolidLine) );
  p.setBrush(QBrush( Qt::NoBrush) );
  for(int i=0; i<n; i++) {
    p.drawRect(wleft[ i ], wtop, wwidth[ i ], wheight);
  }
  delete [] wleft;
  delete [] wwidth;
  p.restore();
}

void GeopsyGui::SignalLayer::drawingAmplitude	(	const Signal *	sig,
		int	itmin,
		int	itmax,
		double &	valClip,
		double &	affMax
	)		const `[protected]`

affMax is the conversion factor from amplitude units to display units. For instance, when various signals are ploted in the same graph, the display unit for each signal vary from -0.5 to 0.5 at an overlap of 1. affMax is computed outside this function for all normalizations including all signals.

References _clip, _clipPerc, _clipValue, _normalize, _normalizeValue, _overlap, _signalOverlaps, _subPool, ClipOverlap, ClipPercentage, ClipValue, GeopsyCore::SubSignalPool::count(), GeopsyCore::Signal::maximumAmplitude(), NoClip, NormalizeAll, NormalizeOne, NormalizeValue, NormalizeVisibleAll, NormalizeVisibleOne, Overlayed, SAFE_UNINITIALIZED, TRACE, GeopsyCore::DoubleSignal::type(), and yAxis().

Referenced by drawSignal(), and updateGrid().

{
  TRACE;
  double vmax;
  SAFE_UNINITIALIZED(vmax,0);
  if(_subPool->count() > 1 && yAxis()!=Overlayed) {
    switch (sig->type()) {
    case Signal::Waveform:
      switch (_normalize) {
      case NormalizeAll:
        vmax=sig->maximumAmplitude();
        break;
      case NormalizeVisibleAll:
        vmax=sig->maximumAmplitude(itmin, itmax);
        break;
      case NormalizeOne:
        vmax=sig->maximumAmplitude();
        if(vmax==0. ) vmax=1.;
        affMax=0.5/vmax;
        break;
      case NormalizeVisibleOne:
        vmax=sig->maximumAmplitude(itmin, itmax);
        if(vmax==0. ) vmax=1.;
        affMax=0.5/vmax;
        break;
      case NormalizeValue:
        vmax=sig->maximumAmplitude();
        affMax=0.5/_normalizeValue;
        break;
      }
      break;
    case Signal::CAmpWaveform:
    case Signal::RealSpectrum:
    case Signal::Spectrum:
      switch (_normalize) {
      case NormalizeAll:
        vmax=sig->maximumAmplitude();
        break;
      case NormalizeVisibleAll:
        vmax=sig->maximumAmplitude(itmin, itmax);
        break;
      case NormalizeOne:
        vmax=sig->maximumAmplitude();
        if(vmax==0. ) vmax=1.;
        affMax=1.0/vmax;
        break;
      case NormalizeVisibleOne:
        vmax=sig->maximumAmplitude(itmin, itmax);
        if(vmax==0. ) vmax=1.;
        affMax=1.0/vmax;
        break;
      case NormalizeValue:
        vmax=sig->maximumAmplitude();
        affMax=1.0/_normalizeValue;
        break;
      }
      break;
    case Signal::CPhaseWaveform:
    case Signal::Phase:
      affMax=0.5/M_PI * _overlap;
      valClip=M_PI;
      return;
    case Signal::ArrivalTime:
    case Signal::UndefinedSignalType:
      affMax=0.5 * _overlap;
      valClip=1.0;
      return;
    }
    affMax *= _overlap;
    QMap<const Signal *, double>::const_iterator it=_signalOverlaps.find(sig);
    if(it!=_signalOverlaps.end()) {
      affMax *= it.value();
    }
    switch (_clip) {
    case NoClip: valClip=vmax; break;
    case ClipOverlap: valClip=0.9/affMax; break;
    case ClipValue: valClip=_clipValue; break;
    case ClipPercentage: valClip=vmax * _clipPerc * 0.01;
    }
  } else {
    affMax=1.0;
    switch (_normalize) {
    case NormalizeAll:
    case NormalizeOne:
    case NormalizeValue:
      switch (sig->type()) {
      case Signal::Waveform:
      case Signal::ArrivalTime:
      case Signal::UndefinedSignalType:
      case Signal::RealSpectrum:
      case Signal::CAmpWaveform:
      case Signal::Spectrum:
        vmax=sig->maximumAmplitude();
        break;
       case Signal::CPhaseWaveform:
      case Signal::Phase:
        vmax=M_PI;
        break;
      }
      break;
    case NormalizeVisibleAll:
    case NormalizeVisibleOne: {
        double vmin;
        SAFE_UNINITIALIZED(vmin,0);
        vmax=sig->maximumAmplitude(itmin, itmax);
        switch (sig->type()) {
        case Signal::Waveform:
        case Signal::ArrivalTime:
        case Signal::UndefinedSignalType:
          vmin=-vmax;
          break;
        case Signal::RealSpectrum:
        case Signal::CAmpWaveform:
        case Signal::Spectrum:
          vmin=0;
          break;
        case Signal::CPhaseWaveform:
        case Signal::Phase:
          vmin=-M_PI;
          vmax=M_PI;
          break;
        }
      }
      break;
    }
    switch (_clip) {
    case NoClip:
    case ClipOverlap: valClip=vmax; break;
    case ClipValue: valClip=_clipValue; break;
    case ClipPercentage: valClip=vmax * _clipPerc * 0.01;
    }
  }
}

void GeopsyGui::SignalLayer::drawSignal	(	const GraphContentOptions &	gc,
		QPainter &	p,
		const Signal *	sig,
		int	iSig,
		int	itmin,
		int	itmax,
		double	x0,
		double	dx,
		bool	allSamplesVisible,
		double	affMax,
		int	pixelWidth,
		bool	variableArea,
		bool	wiggleTrace
	)		const `[protected]`

References _normalize, _offset, _signalY, _subPool, GeopsyCore::DoubleSignal::amplitude(), GeopsyCore::Signal::averageAmplitude(), SciFigs::GraphContentOptions::ay(), CONST_LOCK_SAMPLES, GeopsyCore::SubSignalPool::count(), drawingAmplitude(), GlobalOffset, GeopsyCore::DoubleSignal::isSpectrum(), GeopsyCore::Signal::maximumAmplitude(), NoOffset, NormalizeAll, GeopsyCore::DoubleSignal::phase(), SciFigs::GraphContentOptions::r2s(), SAFE_UNINITIALIZED, TRACE, GeopsyCore::DoubleSignal::type(), UNLOCK_SAMPLES, VisibleOffset, SciFigs::GraphContentOptions::xr2s(), SciFigs::GraphContentOptions::xs2r(), and SciFigs::GraphContentOptions::yr2s().

Referenced by highlightSignal(), and paintData().

{
  TRACE;
  if(itmin >= itmax) return;
  // Introduction : preparing display options
  // ----------------------------------------
  double valClip;
  if(( _normalize & NormalizeAll) &&
      (sig->type()==Signal::Spectrum ||
        sig->type()==Signal::RealSpectrum) ) affMax *= 2;
  drawingAmplitude(sig, itmin, itmax, valClip, affMax);
  if(_subPool->count() > 1) {
    // Even if y axis is reversed keep positive signal up
    if(gc.ay() > 0) affMax=-affMax;
  }

  // Core Routine: drawing
  // ---------------------
  double y0;
  SAFE_UNINITIALIZED(y0,0);
  // Do not remove offset for spectra
  if(sig->isSpectrum()) {
    y0=_signalY[ iSig ];
  } else {
    switch(_offset) {
    case NoOffset: y0=_signalY[ iSig ]; break;
    case GlobalOffset: y0=_signalY[ iSig ] - sig->averageAmplitude() * affMax;; break;
    case VisibleOffset: y0=_signalY[ iSig ] - sig->averageAmplitude(itmin, itmax) * affMax;; break;
    }
  }
  // For phase ploting max spectrum is required, not for other modes.
  // This is taken out of the general lock to avoid recursive locks of signal samples
  // Normalizeally ok but mix of write and read locks are not fully recursives (bug fixed in Qt 4.4.0)
  double globalMaxSpec;
  SAFE_UNINITIALIZED(globalMaxSpec,0);
  switch (sig->type()) {
  case Signal::CPhaseWaveform:
  case Signal::Phase:
    globalMaxSpec=sig->maximumAmplitude();
    break;
  default:
    break;
  }
  CONST_LOCK_SAMPLES(double, samples, sig)
    // Plot a line at each sample from min to max observed in a pixel interval
    // Variable area just extend interval to 0 if min and max have the same sign
    if( !allSamplesVisible && (wiggleTrace || variableArea) ) {
      double val, minVal, maxVal;
      double x=x0, x_step;
      int i=itmin;
      int ix=gc.xr2s(x0);
      int iy1, iy2, iy1n, iy2n;
      switch (sig->type()) {
      case Signal::Waveform:
      case Signal::RealSpectrum:
        maxVal=samples[ i ];
        if(maxVal > valClip) maxVal=valClip;
        else if(maxVal < -valClip) maxVal=-valClip;
        iy1=gc.yr2s(y0 + maxVal * affMax);
        iy2=iy1;
        for( ;ix < pixelWidth && i < itmax;ix++ ) {
          x_step=gc.xs2r(ix);
          minVal=samples[ i ];
          maxVal=minVal;
          while(x < x_step && i < itmax) {
            val=samples[ i ];
            if(val < minVal) minVal=val;
            else if(val > maxVal) maxVal=val;
            i++;
            x += dx;
          }
          if(maxVal > valClip) maxVal=valClip;
          else if(maxVal < -valClip) maxVal=-valClip;
          if(minVal > valClip) minVal=valClip;
          else if(minVal < -valClip) minVal=-valClip;
          if(variableArea && minVal > 0.0) minVal=0;
          iy1n=gc.yr2s(y0 + maxVal * affMax);
          iy2n=gc.yr2s(y0 + minVal * affMax);
          if(iy2<iy1n || iy1>iy2n) {
            p.drawLine(ix-1, iy2, ix, iy1n);
          }
          iy1=iy1n;
          iy2=iy2n;
          if(iy2==iy1) {
            p.drawPoint(ix, iy1);
          } else {
            p.drawLine(ix, iy2, ix, iy1);
          }
        }
        break;
      case Signal::CAmpWaveform:
      case Signal::Spectrum:
        maxVal=sig->amplitude(samples, i);
        if(maxVal > valClip) maxVal=valClip;
        iy1=gc.yr2s(y0 + maxVal * affMax);
        iy2=iy1;
        for( ;ix < pixelWidth && i < itmax;ix++ ) {
          x_step=gc.xs2r(ix);
          minVal=sig->amplitude(samples, i);
          maxVal=minVal;
          while(x < x_step && i < itmax) {
            val=sig->amplitude(samples, i);
            if(val < minVal) minVal=val;
            else if(val > maxVal) maxVal=val;
            i++;
            x += dx;
          }
          if(maxVal > valClip) {
            maxVal=valClip;
            if(minVal > valClip) minVal=valClip;
          }
          if(variableArea && minVal > 0.0) minVal=0;
          iy1n=gc.yr2s(y0 + maxVal * affMax);
          iy2n=gc.yr2s(y0 + minVal * affMax);
          if(iy2<iy1n || iy1>iy2n) {
            p.drawLine(ix-1, iy2, ix, iy1n);
          }
          iy1=iy1n;
          iy2=iy2n;
          if(iy2==iy1) {
            p.drawPoint(ix, iy1);
          } else {
            p.drawLine(ix, iy2, ix, iy1);
          }
        }
        break;
      case Signal::CPhaseWaveform:
      case Signal::Phase: {
          maxVal=sig->phase(samples, i);
          if(maxVal > valClip) maxVal=valClip;
          else if(maxVal < -valClip) maxVal=-valClip;
          iy1=gc.yr2s(y0 + maxVal * affMax);
          iy2=iy1;
          for( ;ix < pixelWidth && i < itmax;ix++ ) {
            x_step=gc.xs2r(ix);
            minVal=sig->phase(samples, i);
            maxVal=minVal;
            double maxSpec=0, valSpec;
            while(x < x_step && i < itmax) {
              val=sig->phase(samples, i);
              valSpec=sig->amplitude(samples, i);
              if(valSpec > maxSpec) maxSpec=valSpec;
              if(val < minVal) minVal=val;
              else if(val > maxVal) maxVal=val;
              i++;
              x += dx;
            }
            if(maxVal > valClip) maxVal=valClip;
            else if(maxVal < -valClip) maxVal=-valClip;
            if(minVal > valClip) minVal=valClip;
            else if(minVal < -valClip) minVal=-valClip;
            if(variableArea && minVal > 0) minVal=0;
            int specColor=(int) (255 * (1 - maxSpec/globalMaxSpec) );
            p.setPen(QColor( specColor, specColor, specColor) );
            iy1n=gc.yr2s(y0 + maxVal * affMax);
            iy2n=gc.yr2s(y0 + minVal * affMax);
            if(iy2<iy1n || iy1>iy2n) {
              p.drawLine(ix-1, iy2, ix, iy1n);
            }
            iy1=iy1n;
            iy2=iy2n;
          }
        }
      case Signal::ArrivalTime:
      case Signal::UndefinedSignalType:
        break;
      }
    } else {
      if(wiggleTrace) {
        switch (sig->type()) {
        case Signal::Waveform:
        case Signal::RealSpectrum: {
            double val=samples[ itmin ];
            if(val > valClip) val=valClip;
            else if(val < -valClip) val=-valClip;
            double x=x0;
            QPoint p1=gc.r2s(x, y0 + val * affMax);
            x += dx;
            for(int i=itmin + 1; i <= itmax; i++, x += dx) {
              val=samples[ i ];
              if(val > valClip) val=valClip;
              else if(val < -valClip) val=-valClip;
              QPoint p2=gc.r2s(x, y0 + val * affMax);
              p.drawLine(p1, p2);
              p1=p2;
            }
          }
          break;
        case Signal::CAmpWaveform:
        case Signal::Spectrum: {
            double val=sig->amplitude(samples, itmin);
            if(val > valClip) val=valClip;
            double x=x0;
            QPoint p1=gc.r2s(x, y0 + val * affMax);
            x += dx;
            for(int i=itmin + 1; i <= itmax; i++, x += dx) {
              val=sig->amplitude(samples, i);
              if(val > valClip) val=valClip;
              QPoint p2=gc.r2s(x, y0 + val * affMax);
              p.drawLine(p1, p2);
              p1=p2;
            }
          }
          break;
        case Signal::CPhaseWaveform:
        case Signal::Phase: {
            double val=sig->phase(samples, itmin);
            if(val > valClip) val=valClip;
            else if(val < -valClip) val=-valClip;
            double x=x0;
            QPoint p1=gc.r2s(x, y0 + val * affMax);
            x += dx;
            for(int i=itmin + 1; i <= itmax; i++, x += dx) {
              val=sig->phase(samples, i);
              if(val > valClip) val=valClip;
              else if(val < -valClip) val=-valClip;
              QPoint p2=gc.r2s(x, y0 + val * affMax);
              int specColor=(int) (255 * (1 - sig->amplitude(samples, i)/globalMaxSpec) );
              p.setPen(QColor( specColor, specColor, specColor) );
              p.drawLine(p1, p2);
              p1=p2;
            }
          }
        case Signal::ArrivalTime:
        case Signal::UndefinedSignalType:
          break;
        }
      }
      if(variableArea) {
        const int NPTS=500;
        QPoint pSeq[ NPTS + 5 ];
        int n;
        double val;
        switch (sig->type()) {
        case Signal::Waveform:
        case Signal::RealSpectrum: {
            n=0;
            double x=x0;
            for(int i=itmin; i <= itmax; i++, x += dx) {
              val=samples[ i ];
              if(val > valClip) val=valClip;
              else if(val < -valClip) val=-valClip;
              if(val >= 0. ) {
                if( !n) {
                  if(i==itmin) {
                    pSeq[ n ]=gc.r2s(x, y0);
                    n++;
                  } else {
                    double inter=samples[ i ]/(samples[ i ] - samples[ i - 1 ] );
                    pSeq[ n ]=gc.r2s(x - inter * dx, y0);
                    n++;
                  }
                }
                pSeq[ n ]=gc.r2s(x, y0 + val * affMax);
                n++;
                if(n >= NPTS) {
                  pSeq[ n ]=gc.r2s(x, y0);
                  n++;
                  p.drawPolygon(pSeq, n);
                  pSeq[ 0 ]=pSeq[ n - 1 ];
                  pSeq[ 1 ]=pSeq[ n - 2 ];
                  n=2;
                }
              } else {
                if(n) {
                  double inter=samples[ i ]/(samples[ i - 1 ] - samples[ i ] );
                  pSeq[ n ]=gc.r2s(x + inter * dx, y0);
                  n++;
                  p.drawPolygon(pSeq, n);
                  n=0;
                }
              }
            }
            if(n) {
              pSeq[ n ]=gc.r2s(x - dx, y0);
              n++;
              p.drawPolygon(pSeq, n);
              n=0;
            }
          }
          break;
        case Signal::CAmpWaveform:
        case Signal::Spectrum: {
            double x=x0;
            pSeq[ 0 ]=gc.r2s(x, y0);
            n=1;
            for(int i=itmin; i <= itmax; i++, x += dx) {
              val=sig->amplitude(samples, i);
              if(val > valClip) val=valClip;
              pSeq[ n ]=gc.r2s(x, y0 + val * affMax);
              n++;
              if(n >= NPTS || pSeq[ n - 1 ].y()==pSeq[ 0 ].y()) {
                pSeq[ n ]=gc.r2s(x, y0);
                n++;
                p.drawPolygon(pSeq, n);
                pSeq[ 0 ]=pSeq[ n - 1 ];
                pSeq[ 1 ]=pSeq[ n - 2 ];
                n=2;
              }
            }
            if(n) {
              pSeq[ n ]=gc.r2s(x - dx, y0);
              n++;
              p.drawPolygon(pSeq, n);
              n=0;
            }
          }
          break;
        case Signal::CPhaseWaveform:
        case Signal::Phase: {
            n=0;
            double x=x0;
            for(int i=itmin; i <= itmax; i++, x += dx) {
              int specColor=(int) (255 * (1 - sig->amplitude(samples, i)/globalMaxSpec) );
              p.setPen(QColor( specColor, specColor, specColor) );
              val=sig->phase(samples, i);
              if(val > valClip) val=valClip;
              else if(val < -valClip) val=-valClip;
              if(val >= 0. ) {
                if( !n) {
                  if(i==itmin) {
                    pSeq[ n ]=gc.r2s(x, y0);
                    n++;
                  } else {
                    val=sig->phase(samples, i); // unclipped only
                    double inter=val/(val - sig->phase(samples, i - 1) );
                    pSeq[ n ]=gc.r2s(x - inter * dx, y0);
                    n++;
                  }
                }
                pSeq[ n ]=gc.r2s(x, y0 + val * affMax);
                n++;
                if(n >= NPTS) {
                  pSeq[ n ]=gc.r2s(x, y0);
                  n++;
                  p.drawPolygon(pSeq, n);
                  pSeq[ 0 ]=pSeq[ n - 1 ];
                  pSeq[ 1 ]=pSeq[ n - 2 ];
                  n=2;
                }
              } else {
                if(n) {
                  val=sig->phase(samples, i); // unclipped only
                  double inter=val/(sig->phase(samples, i - 1) - val);
                  pSeq[ n ]=gc.r2s(x + inter * dx, y0);
                  n++;
                  p.drawPolygon(pSeq, n);
                  n=0;
                }
              }
            }
            if(n) {
              pSeq[ n ]=gc.r2s(x - dx, y0);
              n++;
              p.drawPolygon(pSeq, n);
              n=0;
            }
          }
        case Signal::ArrivalTime:
        case Signal::UndefinedSignalType:
          break;
        }
      }
    }
  UNLOCK_SAMPLES(sig);
}

bool GeopsyGui::SignalLayer::grid ( ) const [inline]

{return _gridPlot;}

virtual bool GeopsyGui::SignalLayer::hasProperties ( ) [inline, virtual]

Reimplemented from SciFigs::GridPlot.

{return true;}

void GeopsyGui::SignalLayer::highlightSignal	(	const GraphContentOptions &	gc,
		QPainter &	p,
		int	w,
		int	iSig,
		int	isigmin,
		int	isigmax
	)		const

References _subPool, GeopsyCore::SubSignalPool::at(), drawSignal(), maxAmplitude(), TRACE, GeopsyCore::DoubleSignal::type(), and visibleSamples().

Referenced by GeopsyGui::PickLayer::paintData().

{
  TRACE;
  if(iSig < isigmin) return ;
  if(iSig >= isigmax) return ;
  Signal * sig=_subPool->at(iSig);
  p.setPen(QPen(Qt::red, 1));
  int itmin, itmax;
  double x0, dx;
  // Useful only for NormalizeAll and NormalizeVisibleAll
  double affMax=0.5/maxAmplitude(gc);
  if(sig->type()==Signal::Spectrum ||
        sig->type()==Signal::RealSpectrum) affMax *= 2;
  bool allSamplesVisible=visibleSamples(gc, sig, itmin, itmax, x0, dx);
  drawSignal(gc, p, sig, iSig, itmin, itmax, x0, dx, allSamplesVisible, affMax, w, false, true);
}

bool GeopsyGui::SignalLayer::keyPressEvent ( QKeyEvent * e ) [protected, virtual]

Reimplemented from SciFigs::GraphContentLayer.

{
  if(e->modifiers() & Qt::ShiftModifier) {
    e->accept();
    switch (e->key()) {
    case Qt::Key_Up:
      spinOverlap(1, false, 0);
      break;
    case Qt::Key_Down:
      spinOverlap( -1, false, 0);
      break;
    }
    return false;
  }
  return true;
}

double GeopsyGui::SignalLayer::maxAmplitude ( const GraphContentOptions & gc ) const [protected]

Find the maximum amplitude across all traces of current subpool. Returns 0 if normalize() is not NormalizeAll or NormalizeVisibleAll

References _normalize, _subPool, GeopsyCore::SubSignalPool::at(), GeopsyCore::SubSignalPool::count(), GeopsyCore::geopsyCore, GeopsyCore::Signal::maximumAmplitude(), NormalizeAll, NormalizeOne, NormalizeValue, NormalizeVisibleAll, NormalizeVisibleOne, GeopsyCore::GeopsyCoreEngine::setProgressMaximum(), GeopsyCore::GeopsyCoreEngine::setProgressValue(), TRACE, and visibleSamples().

Referenced by highlightSignal(), paintData(), and updateGrid().

{
  TRACE;
  double vmax=0.0;
  int n=_subPool->count();
  geopsyCore->setProgressMaximum (n-1);
  switch(_normalize) {
  case NormalizeAll:
    for(int i=0;i < n;i++ ) {
      const Signal * sig=_subPool->at(i);
      double val=sig->maximumAmplitude();
      if(val > vmax) vmax=val;
      geopsyCore->setProgressValue (i);
    }
    break;
  case NormalizeVisibleAll:
    int iMin, iMax;
    for(int i=0;i < n;i++ ) {
      const Signal * sig=_subPool->at(i);
      visibleSamples(gc, sig, iMin, iMax);
      double val=sig->maximumAmplitude(iMin, iMax);
      if(val > vmax) vmax=val;
      geopsyCore->setProgressValue (i);
    }
    break;
  case NormalizeOne:
  case NormalizeValue:
  case NormalizeVisibleOne:
    break;
  }
  return vmax;
}

void GeopsyGui::SignalLayer::minMaxY	(	double &	min,
		double &	max
	)		const

Gives the min and max for Y to show all signals

References _signalY, _subPool, _yAxis, GeopsyCore::SubSignalPool::at(), GeopsyCore::SubSignalPool::count(), GeopsyCore::SubSignalPool::first(), GeopsyCore::Signal::maximumAmplitude(), Overlayed, Receiver, SignalName, TRACE, GeopsyCore::DoubleSignal::type(), and ViewerIndex.

Referenced by boundingRect(), ManualPick::init(), GraphicWindow::setLimits(), SignalViewer::setSignals(), and GraphicWindow::signalsUpdate().

{
  TRACE;
  int n=_subPool->count();
  if(n<=0) return ;
  if(n==1) {
    Signal * sig=_subPool->first();
    max=sig->maximumAmplitude();
    switch (sig->type()) {
    case Signal::Waveform:
      min=-max; break;
    case Signal::RealSpectrum:
    case Signal::CAmpWaveform:
    case Signal::Spectrum:
      min=0; break;
    case Signal::CPhaseWaveform:
    case Signal::Phase:
      min=-M_PI;
      max=M_PI;
    case Signal::ArrivalTime:
    case Signal::UndefinedSignalType:
      break;
    }
    return ;
  }
  // find min and max of base line of signals
  switch(_yAxis) {
  case Receiver: {
      min=1e99;max=-1e99;
      for(int i=0;i < n;i++ ) {
        if(_signalY[ i ] < min) {
          min=_signalY[ i ];
        }
        if(_signalY[ i ] > max) {
          max=_signalY[ i ];
        }
      }
      double delta=0.5*(max - min)/n;
      min-= delta;
      max+= delta;
    }
    break;
  case SignalName:
    min=n; max=0;
    for(int i=0;i < n;i++ ) {
      if(_signalY[ i ] < min) {
        min=_signalY[ i ];
      }
      if(_signalY[ i ] > max) {
        max=_signalY[ i ];
      }
    }
    min -= 0.5;
    max += 0.5;
    break;
  case ViewerIndex:
    min=0.5;
    max=n + 0.5;
    break;
  case Overlayed: {
      min=1e99;max=-1e99;
      double mini, maxi;
      for(int i=0;i < n;i++ ) {
        Signal * sig=_subPool->at(i);
        maxi=sig->maximumAmplitude();
        switch (sig->type()) {
        case Signal::ArrivalTime:
        case Signal::UndefinedSignalType:
        case Signal::Waveform:
          mini=-maxi;
          break;
        case Signal::RealSpectrum:
        case Signal::CAmpWaveform:
        case Signal::Spectrum:
          mini=0;
          break;
        case Signal::CPhaseWaveform:
        case Signal::Phase:
          mini=-M_PI;
          maxi=M_PI;
          break;
        }
        if(mini<min) min=mini;
        if(maxi>max) max=maxi;
      }
    }
    break;
  }
}

Normalize GeopsyGui::SignalLayer::normalize ( ) const [inline]

Referenced by normalizeString().

{return _normalize;}

QString GeopsyGui::SignalLayer::normalizeString ( ) const

References normalize(), NormalizeOne, NormalizeValue, NormalizeVisibleAll, NormalizeVisibleOne, and TRACE.

{
  TRACE;
  switch (normalize()) {
  case NormalizeOne:
    return "NormalizeOne";
  case NormalizeVisibleAll:
    return "NormalizeVisisibleAll";
  case NormalizeVisibleOne:
    return "NormalizeVisisibleOne";
  case NormalizeValue:
    return "NormalizeValue";
  default:
    return "NormalizeAll";
  };
}

double GeopsyGui::SignalLayer::normalizeValue ( ) const [inline]

{return _normalizeValue;}

Offset GeopsyGui::SignalLayer::offset ( ) const [inline]

Referenced by offsetString().

{return _offset;}

QString GeopsyGui::SignalLayer::offsetString ( ) const

References GlobalOffset, offset(), TRACE, and VisibleOffset.

{
  TRACE;
  switch (offset()) {
  case GlobalOffset:
    return "GlobalOffset";
  case VisibleOffset:
    return "VisibleOffset";
  default:
    return "NoOffset";
  };
}

double GeopsyGui::SignalLayer::overlap ( ) const [inline]

Referenced by sigYBoundaries().

{return _overlap;}

void GeopsyGui::SignalLayer::paintData	(	const LayerPainterRequest &	lp,
		QPainter &	p,
		double	dotpercm
	)		const `[protected, virtual]`

Implements SciFigs::GraphContentLayer.

References _gridPlot, _subPool, _variableArea, _wiggleTrace, QGpCoreTools::CacheProcess::add(), GeopsyCore::SubSignalPool::at(), drawGaps(), SciFigs::GridPlot::drawGrid2DBlock(), SciFigs::GridPlot::drawGrid2DYSmooth(), drawSignal(), SciFigs::LayerPainterRequest::graphContent(), maxAmplitude(), QGpCoreTools::CacheProcess::next(), SciFigs::LayerPainterRequest::options(), SciFigs::GridPlot::palette(), SAFE_UNINITIALIZED, setIsigMinMax(), SciFigs::GraphContent::setProgressMaximum(), SciFigs::GraphContent::setProgressValue(), signalColor(), SciFigs::LayerPainterRequest::size(), SciFigs::GridPlot::smooth(), SciFigs::LayerPainterRequest::terminated(), TRACE, visibleSamples(), and w.

{
        TRACE;
        if( !_subPool) return ;
        const GraphContentOptions& gc=lp.options();
        int w=lp.size().width();
        // Useful only for NormalizeAll and NormalizeVisibleAll
        double affMax=0.5/maxAmplitude(gc);
  int isigmin, isigmax;
  SAFE_UNINITIALIZED(isigmin, 0);
  SAFE_UNINITIALIZED(isigmax, 0);
  setIsigMinMax(gc, isigmin, isigmax);
  if(_gridPlot) {
    if(smooth())
      drawGrid2DYSmooth( *_gridPlot, palette(), lp, p);
    else
      drawGrid2DBlock( *_gridPlot, palette(), lp, p);
    return ;
  }
  lp.graphContent()->setProgressMaximum (isigmax - isigmin - 1);
  int itmin, itmax;
  double x0, dx;
  CacheProcess cp;
  for(int iSig=isigmin; iSig < isigmax; ++iSig) {
    const Signal * sig=_subPool->at(iSig);
    visibleSamples(gc, sig, itmin, itmax, x0, dx);
    cp.add(_subPool->at(iSig));
  }
  // Really draw signals
  for(int iSig=isigmin; iSig < isigmax; ++iSig) {
    if(lp.terminated()) {
      return;
    }
    const Signal * sig=_subPool->at(iSig);
    lp.graphContent()->setProgressValue(iSig - isigmin);
    bool allSamplesVisible=visibleSamples(gc, sig, itmin, itmax, x0, dx);
    const QColor& c=signalColor(sig);
    p.setPen(c);
    p.setBrush(c);
    drawSignal(gc, p, sig, iSig, itmin, itmax, x0, dx, allSamplesVisible, affMax, w, _variableArea, _wiggleTrace);
    // Paint gaps if any
    drawGaps(gc, p, sig, iSig);
    cp.next();
  }
}

void GeopsyGui::SignalLayer::properties ( PropertyWidget * w ) const [virtual]

Reimplemented from SciFigs::GridPlot.

{
  TRACE;
  if(w->id()==_tab) {
    w->setValue(SignalsProperties::Colors, (bool)_gridPlot);
    if(_subPool && !_subPool->isEmpty())
      w->setValue(SignalsProperties::IsSpectrum, _subPool->first()->isSpectrum());
    w->setValue(SignalsProperties::Wiggle, _wiggleTrace);
    w->setValue(SignalsProperties::VariableArea, _variableArea);
    w->setValue(SignalsProperties::Normalize, SignalsProperties::normalize2item(_normalize));
    w->setValue(SignalsProperties::NormalizeValue, _normalizeValue);
    w->setValue(SignalsProperties::ClipMode, SignalsProperties::clip2item(_clip));
    if(_clip==ClipPercentage)
      w->setValue(SignalsProperties::ClipValue, _clipPerc);
    else
      w->setValue(SignalsProperties::ClipValue, _clipValue);
    w->setValue(SignalsProperties::Overlap, _overlap);
    w->setValue(SignalsProperties::Offset, SignalsProperties::offset2item(_offset));
    w->setValue(SignalsProperties::YAxis, SignalsProperties::yAxis2item(_yAxis));
    w->setValue(SignalsProperties::TimeRange, SignalsProperties::timeRange2item(_timeRange));
    w->setValue(SignalsProperties::AroundPickName, _aroundPickName);
    w->setValue(SignalsProperties::BeforePickDelay, _beforePickDelay);
    w->setValue(SignalsProperties::AfterPickDelay, _afterPickDelay);
    w->setValue(SignalsProperties::CustomRange, QVariant::fromValue(_customTimeRange));
  } else {
    GridPlot::properties(w);
  }
}

void GeopsyGui::SignalLayer::propertiesChanged ( ) [signal]

Referenced by setProperty().

void GeopsyGui::SignalLayer::removeProperties ( PropertyProxy * pp ) [virtual]

Clean property editor

Reimplemented from SciFigs::GridPlot.

References _tab, and QGpGuiTools::PropertyProxy::removeTab().

{
  pp->removeTab(_tab, this);
  GridPlot::removeProperties(pp);
}

void GeopsyGui::SignalLayer::setAfterPickDelay ( double d ) [inline]

{_afterPickDelay=d;}

void GeopsyGui::SignalLayer::setAroundPickName ( const QString & pn ) [inline]

{_aroundPickName=pn;}

void GeopsyGui::SignalLayer::setBeforePickDelay ( double d ) [inline]

{_beforePickDelay=d;}

void GeopsyGui::SignalLayer::setClip ( Clip c ) [inline]

Referenced by ManualPick::ManualPick(), setClip(), and SignalViewer::SignalViewer().

{_clip=c;}

void GeopsyGui::SignalLayer::setClip ( QString c )

References ClipOverlap, ClipPercentage, ClipValue, NoClip, setClip(), and TRACE.

{
  TRACE;
  if(c.count()<5) return;
  switch(c[4].unicode()) {
  case 'i':
    setClip(NoClip);
    break;
  case 'O':
    setClip(ClipOverlap);
    break;
  case 'V':
    setClip(ClipValue);
    break;
  case 'P':
    setClip(ClipPercentage);
    break;
  default:
    break;
  }
}

void GeopsyGui::SignalLayer::setClipPerc ( double v ) [inline]

{_clipPerc=v;}

void GeopsyGui::SignalLayer::setClipValue ( double v ) [inline]

{_clipValue=v;}

void GeopsyGui::SignalLayer::setCustomTimeRange ( const TimeRangeParameters & ctr ) [inline]

{_customTimeRange=ctr;}

void GeopsyGui::SignalLayer::setGrid ( bool b )

References _gridPlot, and TRACE.

{
  TRACE;
  if(b) {
    if(!_gridPlot) _gridPlot=new Grid2D<double>(10, 10);
  } else {
    delete _gridPlot;
    _gridPlot=0;
  }
}

void GeopsyGui::SignalLayer::setIsigMinMax	(	const GraphContentOptions &	gc,
		int &	isigmin,
		int &	isigmax
	)		const `[inline, protected]`

Estimate the visible signals

References _subPool, _yAxis, GeopsyCore::SubSignalPool::count(), Overlayed, Receiver, SignalName, TRACE, ViewerIndex, SciFigs::GraphContentOptions::yVisMax(), and SciFigs::GraphContentOptions::yVisMin().

Referenced by GeopsyGui::PickLayer::paintData(), and paintData().

{
  TRACE;
  int n=_subPool->count();
  switch(_yAxis) {
  case ViewerIndex:
    if(n > 1) {
      if(gc.yVisMin() > 1)
        isigmin=(int) floor(gc.yVisMin()) - 1;
      else isigmin=0;
      isigmax=(int) ceil(gc.yVisMax()) - 1;
      if(isigmax > n) isigmax=n;
    } else {
      isigmin=0;
      isigmax=n;
    }
    break;
  case Receiver: // TODO something better
    isigmin=0;
    isigmax=n;
    break;
  case SignalName:         // TODO something better
    isigmin=0;
    isigmax=n;
    break;
  case Overlayed:
    isigmin=0;
    isigmax=n;
    break;
  }
}

void GeopsyGui::SignalLayer::setNormalize ( Normalize n ) [inline]

Referenced by MagnifierSignal::MagnifierSignal(), setNormalize(), and SignalViewer::SignalViewer().

{_normalize=n;}

void GeopsyGui::SignalLayer::setNormalize ( QString n )

References NormalizeAll, NormalizeOne, NormalizeValue, NormalizeVisibleAll, NormalizeVisibleOne, setNormalize(), and TRACE.

{
  TRACE;
  if(n.count()>=11) {
    switch (n[10].unicode()) {
    case 'n':
      if(n=="NormalizeOne" ) setNormalize(NormalizeOne);
      break;
    case 'l':
      if(n=="NormalizeAll" ) setNormalize(NormalizeAll);
      // Compatibility
      else if(n=="NormAutoAll" ) setNormalize(NormalizeAll);
      break;
    case 'i':
      if(n=="NormalizeVisibleAll" ) setNormalize(NormalizeVisibleAll);
      else if(n=="NormalizeVisibleOne" ) setNormalize(NormalizeVisibleOne);
      break;
    case 'a':
      if(n=="NormalizeValue" ) setNormalize(NormalizeValue);
      break;
    case 'e': // Compatibility
      if(n=="NormAutoOne" ) setNormalize(NormalizeOne);
      break;
    case 'o': // Compatibility
      if(n=="NormVisAutoAll" ) setNormalize(NormalizeVisibleOne);
      else if(n=="NormVisAutoOne" ) setNormalize(NormalizeVisibleAll);
      break;
    default:
      break;
    }
  // Compatibility
  } else if(n=="NormValue" ) setNormalize(NormalizeValue);
}

void GeopsyGui::SignalLayer::setNormalizeValue ( double v ) [inline]

{_normalizeValue=v;}

void GeopsyGui::SignalLayer::setOffset ( Offset o ) [inline]

Referenced by setOffset(), SignalViewer::SignalViewer(), and WaveformConsole::stalta().

{_offset=o;}

void GeopsyGui::SignalLayer::setOffset ( QString n )

References GlobalOffset, NoOffset, setOffset(), TRACE, and VisibleOffset.

{
  TRACE;
  if(o.count()<5) return;
  switch(o[0].unicode()) {
  case 'N':
    setOffset(NoOffset);
    break;
  case 'G':
    setOffset(GlobalOffset);
    break;
  case 'V':
    setOffset(VisibleOffset);
    break;
  default:
    break;
  }
}

void GeopsyGui::SignalLayer::setOverlap ( double v ) [inline]

Referenced by setProperty().

{_overlap=v; _signalOverlaps.clear();}

void GeopsyGui::SignalLayer::setProperty	(	uint	wid,
		int	pid,
		QVariant	val
	)		`[virtual]`

Reimplemented from SciFigs::GridPlot.

Reimplemented in SignalDisplay.

{
  TRACE;
  LayerLocker ll(this);
  if(wid==_tab) {
    switch(pid) {
    case SignalsProperties::Colors:
      if(val.toBool()) {
        if( !_gridPlot) updateGrid();
      } else {
        delete _gridPlot;
        _gridPlot=0;
      }
      break;
    case SignalsProperties::Wiggle:
      _wiggleTrace=val.toBool();
      break;
    case SignalsProperties::VariableArea:
      _variableArea=val.toBool();
      break;
    case SignalsProperties::Normalize:
      _normalize=SignalsProperties::item2normalize(val.toInt());
      break;
    case SignalsProperties::NormalizeValue:
      _normalizeValue=val.toDouble();
      break;
    case SignalsProperties::ClipMode:
      _clip=SignalsProperties::item2clip(val.toInt());
      break;
    case SignalsProperties::ClipValue:
      if(_clip==ClipPercentage) {
        _clipPerc=val.toDouble();
      } else {
        _clipValue=val.toDouble();
      }
      break;
    case SignalsProperties::Overlap:
      setOverlap(val.toDouble());
      break;
    case SignalsProperties::Offset:
      _offset=SignalsProperties::item2offset(val.toInt());
      break;
    case SignalsProperties::YAxis:
      _yAxis=SignalsProperties::item2yAxis(val.toInt());
      subPoolUpdate();
      break;
    case SignalsProperties::TimeRange:
      _timeRange=SignalsProperties::item2timeRange(val.toInt());
      break;
    case SignalsProperties::AroundPickName:
      _aroundPickName=val.toString();
      break;
    case SignalsProperties::BeforePickDelay:
      _beforePickDelay=val.toDouble();
      break;
    case SignalsProperties::AfterPickDelay:
      _afterPickDelay=val.toDouble();
      break;
    case SignalsProperties::CustomRange:
      _customTimeRange=val.value<TimeRangeParameters>();
      break;
    default:
      break;
    }
  } else {
    GridPlot::setProperty(wid, pid, val);
  }
  emit propertiesChanged();
  graphContent()->deepUpdate();
}

void GeopsyGui::SignalLayer::setReceiverYAxis ( bool rc ) [inline]

{_yAxis=rc ? Receiver : ViewerIndex;}

void GeopsyGui::SignalLayer::setSignalColor	(	const Signal *	sig,
		const QColor &	c
	)

Set color for signal sig. The color of a signal is defined in a map. If c is black, then the entry for sig is removed from the map.

References _signalColors, and TRACE.

Referenced by ToolNR::highlightShot(), MagnifierSignal::setSignal(), and xml_setProperty().

{
  TRACE;
  LayerLocker ll(this);
  QMap<const Signal *, QColor>::iterator it=_signalColors.find(sig);
  if(c==Qt::black) {
    if(it!=_signalColors.end()) {
      _signalColors.remove(sig);
    }
  } else {
    if(it!=_signalColors.end()) {
      _signalColors[sig]=c;
    } else {
      _signalColors.insert(sig,c);
    }
  }
}

void GeopsyGui::SignalLayer::setTimeRange ( TimeRange tr ) [inline]

References QGpCoreTools::tr().

Referenced by setTimeRange().

{_timeRange=tr;}

void GeopsyGui::SignalLayer::setTimeRange ( QString tr )

References AroundPickRange, AvailableRange, CustomRange, setTimeRange(), and TRACE.

{
  TRACE;
  if(tr.count()<2) return;
  switch(tr[1].unicode()) {
  case 'v':
    setTimeRange(AvailableRange);
    break;
  case 'r':
    setTimeRange(AroundPickRange);
    break;
  case 'u':
    setTimeRange(CustomRange);
    break;
  default:
    break;
  }
}

void GeopsyGui::SignalLayer::setVariableArea ( bool b ) [inline]

Referenced by ManualPick::ManualPick(), and SignalViewer::SignalViewer().

{_variableArea=b;}

void GeopsyGui::SignalLayer::setWiggleTrace ( bool b ) [inline]

{_wiggleTrace=b;}

void GeopsyGui::SignalLayer::setYAxis ( YAxis a ) [inline]

Referenced by setYAxis().

{_yAxis=a;}

void GeopsyGui::SignalLayer::setYAxis ( QString a )

References Overlayed, Receiver, setYAxis(), SignalName, TRACE, and ViewerIndex.

{
  TRACE;
  if(a.isEmpty()) return;
  switch(a[0].unicode()) {
  case 'O':
    setYAxis(Overlayed);
    break;
  case 'R':
    setYAxis(Receiver);
    break;
  case 'S':
    setYAxis(SignalName);
    break;
  case 'V':
    setYAxis(ViewerIndex);
    break;
  default:
    break;
  }
}

int GeopsyGui::SignalLayer::signalAt	(	int	yPos,
		double &	baseDistance
	)		const

Return the index of signal at position Y yPos. Return -1 is subPool is empty. baseDistance is set to the ditance between yPos and the base line of returned signal.

References _signalY, _subPool, GeopsyCore::SubSignalPool::count(), SciFigs::GraphContentLayer::graphContent(), SciFigs::GraphContent::options(), TRACE, and SciFigs::GraphContentOptions::ys2r().

Referenced by GeopsyGui::PickLayer::mouseMoveEvent(), and GeopsyGui::PickLayer::mousePressEvent().

{
  TRACE;
  int n=_subPool->count();
  if(n < 1) return -1;
  double yd=graphContent()->options().ys2r(yPos);
  // Find which signal has the closest base line to yd
  int iSig=0;
  double d=fabs(_signalY[ 0 ] - yd);
  baseDistance=d;
  for(int i=1;i < n;i++ ) {
    d=fabs(_signalY[ i ] - yd);
    if(d < baseDistance) {
      baseDistance=d;
      iSig=i;
    }
  }
  return iSig;
}

const QColor & GeopsyGui::SignalLayer::signalColor ( const Signal * sig ) const

Return color for signal sig. The color of a signal is defined in a map.

References _signalColors.

Referenced by paintData().

{
  QMap<const Signal *, QColor>::const_iterator it=_signalColors.find(sig);
  if(it!=_signalColors.end()) {
    return it.value();
  } else {
    static const QColor black=Qt::black;
    return black;
  }
}

void GeopsyGui::SignalLayer::signalsUpdate ( )

References _gridPlot, SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), TRACE, and updateGrid().

Referenced by GraphicWindow::signalsUpdate().

{
  TRACE;
  if(_gridPlot) {
    LayerLocker ll(this);
    updateGrid();
  }
  graphContent()->deepUpdate();
}

void GeopsyGui::SignalLayer::sigYBoundaries	(	int	index,
		double	overlap,
		QRect &	bound
	)		const

Set the Y limits of the rectangle to include signal with index

References _signalY, SciFigs::GraphContentLayer::graphContent(), overlap(), and TRACE.

Referenced by GeopsyGui::PickLayer::mousePressEvent().

{
  TRACE;
  double h=0.5 * overlap;
  bound.setTop(graphContent()->options().yr2s(_signalY[ index ] + h) );
  bound.setBottom(graphContent()->options().yr2s(_signalY[ index ] - h) );
}

const SubSignalPool* GeopsyGui::SignalLayer::subPool ( ) const [inline]

Referenced by GeopsyGui::PickLayer::paintData(), subPoolUpdate(), GeopsyGui::TimeWindowLayer::xml_layerPolish(), xml_polishChild(), GeopsyGui::TimeWindowLayer::xml_writeChildren(), and xml_writeChildren().

{return _subPool;}

void GeopsyGui::SignalLayer::subPoolUpdate ( SubSignalPool * subPool = 0 )

References _gridPlot, _signalY, _subPool, _subPoolOwner, _yAxis, GeopsyCore::SubSignalPool::at(), GeopsyCore::SubSignalPool::begin(), GeopsyCore::SubSignalPool::count(), GeopsyCore::SubSignalPool::end(), GeopsyCore::Signal::nameComponent(), Overlayed, QGpCoreTools::Curve< pointType >::project(), Receiver, GeopsyCore::SubSignalPool::receivers(), SignalName, subPool(), TRACE, updateGrid(), and ViewerIndex.

Referenced by ManualPick::init(), SignalDisplay::setProperty(), setProperty(), SignalViewer::setSignals(), GraphicWindow::subPoolUpdate(), and xml_polish().

{
  TRACE;
  LayerLocker ll(this);
  if(subPool) {
    _subPool=subPool;
    _subPoolOwner=false;
  }
  if( !_subPool) {
    return;
  }
  // Y axis type options
  _signalY.resize(_subPool->count());
  if(_subPool->count()==1) {
    _signalY[ 0 ]=0.0;
  } else {
    switch(_yAxis) {
    case Receiver:
      _signalY=_subPool->receivers().project();
      break;
    case ViewerIndex:
      for(int i=0;i < _subPool->count();i++ ) {
        _signalY[ i ]=i + 1;
      }
      break;
    case SignalName: {
        QMap<QString,int> names;
        for(SubSignalPool::iterator it=_subPool->begin(); it!=_subPool->end(); it++ ) {
          names.insert((*it)->nameComponent(), 0);
        }
        int i=0;
        for(QMap<QString,int>::iterator it=names.begin();it!=names.end();it++) {
          it.value()=i++;
        }
        int n= _subPool->count();
        for(int i=0;i < n;i++ ) {
          _signalY[ i ]=names[ _subPool->at(i)->nameComponent() ]+1;
        }
      }
      break;
    case Overlayed:
      for(int i=0;i < _subPool->count();i++ ) {
        _signalY[ i ]=0.0;
      }
      break;
    }
  }
  if(_gridPlot) updateGrid();
}

TimeRange GeopsyGui::SignalLayer::timeRange ( ) const [inline]

Referenced by timeRangeString().

{return _timeRange;}

QString GeopsyGui::SignalLayer::timeRangeString ( ) const

References AroundPickRange, AvailableRange, CustomRange, timeRange(), and TRACE.

{
  TRACE;
  switch (timeRange()) {
  case CustomRange:
    break;
  case AroundPickRange:
    return "AroundPickRange";
  case AvailableRange:
    return "AvailableRange";
  };
  return "CustomRange";
}

void GeopsyGui::SignalLayer::updateGrid ( ) [protected]

References _gridPlot, _normalize, _subPool, GeopsyCore::DoubleSignal::amplitude(), GeopsyCore::SubSignalPool::begin(), CONST_LOCK_SAMPLES, GeopsyCore::SubSignalPool::count(), GeopsyCore::DoubleSignal::deltaF(), GeopsyCore::DoubleSignal::deltaT(), drawingAmplitude(), GeopsyCore::SubSignalPool::end(), SciFigs::GraphContentLayer::graphContent(), GeopsyCore::SubSignalPool::isEmpty(), maxAmplitude(), MSG_ID, NormalizeAll, GeopsyCore::SignalTemplate< sampleType >::nSamples(), GeopsyCore::DoubleSignal::phase(), SAFE_UNINITIALIZED, QGpCoreTools::Grid2D< ValueType >::setDeltaX(), QGpCoreTools::Grid2D< ValueType >::setOrigin(), GeopsyCore::Signal::t0(), TRACE, GeopsyCore::DoubleSignal::type(), UNLOCK_SAMPLES, QGpCoreTools::Grid2D< ValueType >::valuePointer(), and visibleSamples().

Referenced by setProperty(), signalsUpdate(), and subPoolUpdate().

{
  TRACE;
  if(!_subPool || _subPool->isEmpty()) return;
  // delete previously created grid
  delete _gridPlot;
  // Get time limits and sampling step
  double t0, deltaT;
  int n=-1, nSamples2;
  DoubleSignal::SignalType sType;
  SAFE_UNINITIALIZED(sType,DoubleSignal::UndefinedSignalType);
  SAFE_UNINITIALIZED(deltaT,0);
  SAFE_UNINITIALIZED(t0,0);
  SAFE_UNINITIALIZED(nSamples2,0);
  // Useful only for NormalizeAll and NormalizeVisibleAll
  double affMax0=0.5/maxAmplitude(graphContent()->options());
  SubSignalPool::iterator it;
  // Check if uniform t0 and dt
  for(it=_subPool->begin(); it!=_subPool->end(); ++it) {
    Signal * sig=*it;
    double it0, ideltaT;
    int in=sig->nSamples();
    DoubleSignal::SignalType isType=sig->type();
    switch (sig->type()) {
    case Signal::Waveform:
      ideltaT=sig->deltaT();
      it0=sig->t0();
      break;
    case Signal::RealSpectrum:
      ideltaT=sig->deltaF();
      it0=0;
      break;
    case Signal::Spectrum: {
        double fNyquist=0.5/sig->deltaT();
        ideltaT=2 * fNyquist/(double) in;
        it0=0;
      }
    default:
      Message::warning(MSG_ID, "Building signal grid",
                           "Only Waveform and spectra can be used to build a colored grid",
                           Message::cancel());
      _gridPlot=0;
      return;
    }
    if(n==-1) {
      sType=isType;
      t0=it0;
      n=in;
      deltaT=ideltaT;
      nSamples2=in/2;
    } else if(it0!=t0 || in!=n || ideltaT!=deltaT) {
      Message::warning(MSG_ID, "Building signal grid",
                           "To build a colored grid all the signals must have the same deltaT and T0",
                           Message::cancel());
      _gridPlot=0;
      return ;
    }
  }
  // Re-allocate a new grid
  switch (sType) {
  case Signal::Waveform:
  case Signal::RealSpectrum:
    _gridPlot=new Grid2D<double>(n, _subPool->count());
    break;
  case Signal::Spectrum:
    _gridPlot=new Grid2D<double>(nSamples2 + 1, _subPool->count());
    break;
  default:
    break;
  }
  _gridPlot->setOrigin(Point2D( t0, 1) );
  _gridPlot->setDeltaX(deltaT);
  // fill in the grid with signals
  double * cells=_gridPlot->valuePointer(0, 0);
  double valClip, affMax;
  int imin, imax;
  for(it=_subPool->begin(); it!=_subPool->end(); ++it) {
    const Signal * sig=*it;
    CONST_LOCK_SAMPLES(double, samples, sig)
      visibleSamples(graphContent()->options(), sig, imin, imax);
      switch (sig->type()) {
      case Signal::Waveform:
      case Signal::RealSpectrum: {
          if(_normalize & NormalizeAll) affMax=affMax0;
          drawingAmplitude(sig, imin, imax, valClip, affMax);
          for(int i=0; i < n; i++, cells++ ) {
            double val=samples[ i ];
            if(val > valClip) val=valClip;
            *cells=val * affMax;
          }
        }
        break;
      case Signal::CAmpWaveform:
      case Signal::Spectrum: {
          if(_normalize & NormalizeAll) affMax=2 * affMax0;
          drawingAmplitude(sig, imin, imax, valClip, affMax);
          for(int i=0; i <= nSamples2; i++, cells++ ) {
            double val=sig->amplitude(samples, i);
            if(val > valClip) val=valClip;
            *cells=val * affMax;
          }
        }
        break;
      case Signal::CPhaseWaveform:
      case Signal::Phase: {
          if(_normalize & NormalizeAll) affMax=affMax0;
          drawingAmplitude(sig, imin, imax, valClip, affMax);
          for(int i=0; i <= nSamples2; i++, cells++ ) {
            double val=sig->phase(samples, i);
            if(val > valClip) val=valClip;
            *cells=val * affMax;
          }
        }
      case Signal::ArrivalTime:
      case Signal::UndefinedSignalType:
        break;
      }
    }
  UNLOCK_SAMPLES(sig)
}

bool GeopsyGui::SignalLayer::variableArea ( ) const [inline]

{return _variableArea;}

bool GeopsyGui::SignalLayer::visibleSamples	(	const GraphContentOptions &	gc,
		const Signal *	sig,
		int &	itmin,
		int &	itmax,
		double &	x0,
		double &	dx
	)		const `[protected]`

Set itmin and itmax (sample index) for visible range for signal sig Return true is all samples are visible (1 samples > 1 pixel) x0 is the time or the frequency of the first sample dx is the frequency step or the time step between samples

References _afterPickDelay, _aroundPickName, _beforePickDelay, _customTimeRange, _timeRange, GeopsyCore::TimeRangeParameters::absoluteRange(), AroundPickRange, AvailableRange, SciFigs::GraphContentOptions::ax(), CustomRange, GeopsyCore::DoubleSignal::deltaF(), GeopsyCore::DoubleSignal::deltaT(), GeopsyCore::DoubleSignal::duration(), GeopsyCore::SignalTemplate< sampleType >::nSamples(), GeopsyCore::Signal::t0(), GeopsyCore::Signal::timePick(), TRACE, GeopsyCore::DoubleSignal::type(), SciFigs::GraphContentOptions::xVisMax(), and SciFigs::GraphContentOptions::xVisMin().

Referenced by highlightSignal(), maxAmplitude(), paintData(), updateGrid(), and visibleSamples().

{
  TRACE;
  switch (sig->type()) {
  case Signal::Waveform: {
      dx=sig->deltaT();
      ::TimeRange tw;
      switch(_timeRange) {
      case AvailableRange:
        tw.setStart(gc.xVisMin());
        tw.setEnd(gc.xVisMax());
        break;
      case AroundPickRange: {
          double t=sig->timePick(_aroundPickName);
          tw.setStart(t - _beforePickDelay);
          tw.setEnd(t + _afterPickDelay);
        }
        break;
      case CustomRange:
        tw=_customTimeRange.absoluteRange(sig);
        break;
      }
      itmin=(int) floor(( tw.start() - sig->t0())/dx) - 1;
      itmax=(int) ceil(( tw.end() - sig->t0())/dx) + 1;
      if(itmin < 0) itmin=0;
      if(itmax > sig->nSamples() - 1) itmax=sig->nSamples() - 1;
      x0=sig->t0() + itmin * dx;
      if(fabs( gc.ax() * dx) < 1.0) return false; else return true;
    }
  case Signal::RealSpectrum:
    dx=sig->deltaF();
    itmin=(int) floor(gc.xVisMin()/dx) - 1;
    if(itmin < 0) itmin=0;
    itmax=(int) ceil(gc.xVisMax()/dx) + 1;
    if(itmax > sig->nSamples() - 1) itmax=sig->nSamples() - 1;
    x0=itmin * dx;
    if(fabs( gc.ax() * dx) < 1.0) return false; else return true;
  case Signal::CAmpWaveform:
  case Signal::CPhaseWaveform:
  case Signal::Spectrum:
  case Signal::Phase: {
      int nSamples2=sig->nSamples()/2;
      dx=1.0/sig->duration();
      itmin=(int) floor(gc.xVisMin()/dx) - 1;
      if(itmin < 1) itmin=1; /* don't plot 0 Hz as we are supposed to plot it
                                     in log scale */
      itmax=(int) ceil(gc.xVisMax()/dx) + 1;
      if(itmax > nSamples2) itmax=nSamples2;
      x0=itmin * dx;
      if(fabs( gc.ax() * dx) < 1.0) return false; else return true;
    }
  case Signal::UndefinedSignalType:
  case Signal::ArrivalTime:
    return false;
  }
  return false;
}

void GeopsyGui::SignalLayer::visibleSamples	(	const GraphContentOptions &	gc,
		const Signal *	sig,
		int &	itmin,
		int &	itmax
	)		const `[inline, protected]`

References TRACE, and visibleSamples().

{
  TRACE;
  double x0, dx;
  visibleSamples(gc, sig, itmin, itmax, x0, dx);
}

bool GeopsyGui::SignalLayer::wheelEvent ( QWheelEvent * e ) [protected, virtual]

Reimplemented from SciFigs::GraphContentLayer.

References TRACE.

{
  TRACE;
  if(e->modifiers() & Qt::ShiftModifier) {
    e->accept();
    spinOverlap(e->delta()/120, e->modifiers() & Qt::ControlModifier, e->y());
    return false; // do not process this event for other layers
  }
  return true; // Continue scanning other layers with this event
}

bool GeopsyGui::SignalLayer::wiggleTrace ( ) const [inline]

{return _wiggleTrace;}

XMLMember GeopsyGui::SignalLayer::xml_member ( XML_MEMBER_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

An integer: id number of a property
A XMLClass * : a child of this object identified by tag
Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from SciFigs::GridPlot.

References SciFigs::XMLSciFigs::data(), SciFigs::XMLSciFigs::makeUp(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    if(tag==XMLSubSignalPool::xmlSubSignalPoolTag) {
      return XMLMember(new XMLSubSignalPool, true);
    } else if(tag==XMLSignal::xmlSignalTag) { // For compatibility
      return XMLMember(new XMLSignal, true);
    }
  }
  if(scifigsContext->makeUp()) {
    if(tag==signalColorTag) {
      return XMLMember(0);
    } else if(tag==signalOverlapTag) {
      return XMLMember(1);
    } else if(tag==TimeRangeParameters::xmlTimeRangeParametersTag) {
      return XMLMember(2);
    }
  }
  return GridPlot::xml_member(tag, attributes, context)+3;
}

void GeopsyGui::SignalLayer::xml_polish ( XML_POLISH_ARGS ) [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References subPoolUpdate(), and TRACE.

{
  TRACE;
  Q_UNUSED(context);
  subPoolUpdate();
}

void GeopsyGui::SignalLayer::xml_polishChild ( XML_POLISHCHILD_ARGS ) [protected, virtual]

Reimplemented from SciFigs::GridPlot.

References _subPool, _subPoolOwner, GeopsyCore::SubSignalPool::addSignal(), GeopsyCore::XMLSignal::signal(), GeopsyCore::XMLSubSignalPool::subPool(), subPool(), and TRACE.

{
  TRACE;
  Q_UNUSED(context);
  if(child->xml_tagName()==XMLSubSignalPool::xmlSubSignalPoolTag) {
    XMLSubSignalPool * subPool=static_cast<XMLSubSignalPool *>(child);
    if(_subPoolOwner) delete _subPool;
    _subPool=subPool->subPool();
    _subPoolOwner=true;
  } else if(child->xml_tagName()==XMLSignal::xmlSignalTag) { // For compatibility
    XMLSignal * sig=static_cast<XMLSignal *>(child);
    if(!_subPool) {
      _subPool=new SubSignalPool;
      _subPoolOwner=true;
    }
    _subPool->addSignal(sig->signal());
  }
}

bool GeopsyGui::SignalLayer::xml_setProperty ( XML_SETPROPERTY_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore properties support to your class.

From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).

For a general case:

  Q_UNUSED(attributes);
  double val=content.toDouble();
  switch (memberID) {
  case 0:
    _x1=val;
    return true;
  case 1:
    _y1=val;
    return true;
  case 2:
    _x2=val;
    return true;
  case 3:
    _y2=val;
    return true;
  default:
    return false;
  }

For classes inheriting other classes (see also xml_member())

  switch (memberID) {
  case 0:
    _anInteger=content.toString();
    return true;
  case 1:
    _aString=content.toInt();
    return true;
  case 2:
    _aDouble=content.toDouble();
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-3, map, content);

For the arguments of this function use Macro XML_SETPROPERTY_ARGS.

Reimplemented from SciFigs::GraphContentLayer.

References _customTimeRange, _signalOverlaps, _subPool, GeopsyCore::SubSignalPool::at(), QGpCoreTools::endl(), setSignalColor(), QGpCoreTools::tr(), TRACE, and GeopsyCore::TimeRangeParameters::xml_setAttributes().

{
  TRACE;
  switch (memberID) {
  case 0: {
      XMLRestoreAttributeIterator it=attributes.find(indexTag);
      if(it!=attributes.end()) {
        int index=it.value().toInt();
        if(index >= 0 && _subPool && index < _subPool->count()) {
          setSignalColor(_subPool->at(index), QColor(content.toString()) );
        } else {
          App::stream() << tr("Index '%1' out of range for 'signalColor' property.").arg(index) << endl;
        }
      } else {
        App::stream() << tr("No 'index' for 'signalColor' property.") << endl;
      }
    }
    return true;
  case 1: {
      XMLRestoreAttributeIterator it=attributes.find(indexTag);
      if(it!=attributes.end()) {
        int index=it.value().toInt();
        if(index >= 0 && _subPool && index < _subPool->count()) {
          Signal * sig=_subPool->at(index);
          _signalOverlaps.insert(sig, content.toDouble());
        } else {
          App::stream() << tr("Index '%1' out of range for 'signalOverlap' property.").arg(index) << endl;
        }
      } else {
        App::stream() << tr("No 'index' for 'signalOverlap' property.") << endl;
      }
    }
    return true;
  case 2:
    return _customTimeRange.xml_setAttributes(attributes, context);
  default:
    return GridPlot::xml_setProperty(memberID-3, tag, attributes, content, context);
  }
}

virtual const QString& GeopsyGui::SignalLayer::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::GridPlot.

{return xmlSignalLayerTag;}

void GeopsyGui::SignalLayer::xml_writeChildren ( XML_WRITECHILDREN_ARGS ) const [protected, virtual]

Reimplemented from SciFigs::GridPlot.

References _subPool, SciFigs::XMLSciFigs::data(), subPool(), TRACE, and QGpCoreTools::XMLClass::xml_save().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    XMLSubSignalPool subPool(*_subPool);
    subPool.xml_save(s, context);
  }
  GridPlot::xml_writeChildren(s, context);
}

void GeopsyGui::SignalLayer::xml_writeProperties ( XML_WRITEPROPERTIES_ARGS ) const [protected, virtual]

Reimplemented from SciFigs::GraphContentLayer.

References _customTimeRange, _signalColors, _signalOverlaps, _subPool, QGpCoreTools::XMLSaveAttributes::add(), QGpCoreTools::XMLSaveAttributes::clear(), GeopsyCore::SubSignalPool::indexOf(), SciFigs::XMLSciFigs::makeUp(), TRACE, QGpCoreTools::XMLSaveAttributes::value(), QGpCoreTools::XMLClass::writeProperty(), and GeopsyCore::TimeRangeParameters::xml_attributes().

{
  TRACE;
  GridPlot::xml_writeProperties(s, context);
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->makeUp()) {
    XMLSaveAttributes att;
    QString& value=att.add(indexTag);
    for(QMap<const Signal *,QColor>::const_iterator it=_signalColors.begin(); it!=_signalColors.end(); it++ ) {
      value=QString::number(_subPool->indexOf(it.key()) );
      writeProperty(s, signalColorTag, att, it.value().name());
    }
    for(QMap<const Signal *,double>::const_iterator it=_signalOverlaps.begin(); it!=_signalOverlaps.end(); it++ ) {
      value=QString::number(_subPool->indexOf(it.key()) );
      writeProperty(s, signalOverlapTag, att, it.value());
    }
    att.clear();
    _customTimeRange.xml_attributes(att, context);
    writeProperty(s, TimeRangeParameters::xmlTimeRangeParametersTag, att);
  }
}

YAxis GeopsyGui::SignalLayer::yAxis ( ) const [inline]

Referenced by drawingAmplitude(), and yAxisString().

{return _yAxis;}

QString GeopsyGui::SignalLayer::yAxisString ( ) const

References Overlayed, Receiver, SignalName, TRACE, ViewerIndex, and yAxis().

{
  TRACE;
  switch (yAxis()) {
  case ViewerIndex:
    break;
  case Receiver:
    return "ReceiverCoordinate";
  case SignalName:
    return "SignalName";
  case Overlayed:
    return "Overlayed";
  };
  return "ViewerIndex";
}
