#include <TimeWindowLayer.h>

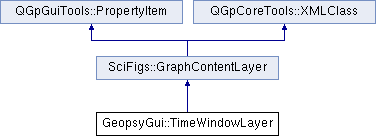

Inheritance diagram for GeopsyGui::TimeWindowLayer:

Classes
struct	XMLTimeWindowList
Public Member Functions
void	addTimeWindows (const SubSignalPool &subPool, TimeWindowList *l)
void	addTimeWindows (Signal sig, TimeWindowList l)
virtual Rect	boundingRect () const
void	clearTimeWindows ()
void	setShowColors (bool b)
void	setSize (double s)
bool	showColors () const
double	size () const
	TimeWindowLayer (AxisWindow *parent=0)
	TimeWindowLayer (SignalLayer *sig)
virtual const QString &	xml_tagName () const
virtual	~TimeWindowLayer ()
Static Public Attributes
static const QString	xmlTimeWindowLayerTag = "TimeWindowLayer"
Protected Member Functions
virtual void	xml_layerPolish (XML_POLISH_ARGS)
virtual XMLMember	xml_member (XML_MEMBER_ARGS)
virtual bool	xml_setProperty (XML_SETPROPERTY_ARGS)
virtual void	xml_writeChildren (XML_WRITECHILDREN_ARGS) const
virtual void	xml_writeProperties (XML_WRITEPROPERTIES_ARGS) const
Properties
bool	showColors
double	size

Constructor & Destructor Documentation

GeopsyGui::TimeWindowLayer::TimeWindowLayer ( AxisWindow * parent = 0 )

References TRACE.

    : GraphContentLayer(parent)
{
  TRACE;
  _sig=0;
  _size=0.375;
  _showColors=false;
  _windowOwner=false;
  _xmlWindows=0;
}

GeopsyGui::TimeWindowLayer::TimeWindowLayer ( SignalLayer * sig )

References SciFigs::GraphContentLayer::addReference(), and TRACE.

    : GraphContentLayer(sig->graph())
{
  TRACE;
  _sig=sig;
  _sig->addReference();
  _size=0.375;
  _showColors=false;
  _windowOwner=false;
  _xmlWindows=0;
}

GeopsyGui::TimeWindowLayer::~TimeWindowLayer ( ) [virtual]

References SciFigs::GraphContentLayer::removeReference(), and TRACE.

{
  TRACE;
  if(_windowOwner) {
    for(QMap<Signal *, TimeWindowList *>::iterator it=_windows.begin(); it!=_windows.end(); it++) {
      delete it.value();
    }
  }
  if(_sig) {
    _sig->removeReference();
  }
  delete _xmlWindows;
}

Member Function Documentation

void GeopsyGui::TimeWindowLayer::addTimeWindows	(	const SubSignalPool &	subPool,
		TimeWindowList *	l
	)

For convenience, links all signals of subPool to time window list l

References GeopsyCore::SubSignalPool::begin(), GeopsyCore::SubSignalPool::end(), and TRACE.

Referenced by ManualPick::init(), ToolSpectrum::initStations(), ToolStructure::initStations(), ToolHV::initStations(), and ToolArrayBase::setTimeWindowLayer().

{
  TRACE;
  LayerLocker ll(this);
  for(SubSignalPool::const_iterator it=subPool.begin(); it!=subPool.end(); it++) {
    _windows.insert(*it, l);
  }
}

void GeopsyGui::TimeWindowLayer::addTimeWindows	(	Signal *	sig,
		TimeWindowList *	l
	)

Links signal sig to time window list l

References TRACE.

{
  TRACE;
  LayerLocker ll(this);
  _windows.insert(sig, l);
}

Rect GeopsyGui::TimeWindowLayer::boundingRect ( ) const [virtual]

Implements SciFigs::GraphContentLayer.

References GeopsyGui::SignalLayer::boundingRect(), and TRACE.

{
  TRACE;
  if(_sig) {
    return _sig->boundingRect();
  } else {
    return Rect();
  }
}

void GeopsyGui::TimeWindowLayer::clearTimeWindows ( )

References TRACE.

{
  TRACE;
  LayerLocker ll(this);
  _windows.clear();
}

void GeopsyGui::TimeWindowLayer::setShowColors ( bool b )

Referenced by FKTimeWindows::setTimeWindowLayer(), and MonoStation::AbstractTool::start().

void GeopsyGui::TimeWindowLayer::setSize ( double s )

References TRACE.

{
  TRACE;
  LayerLocker ll(this);
  _size=s;
}

bool GeopsyGui::TimeWindowLayer::showColors ( ) const [inline]

{return _showColors;}

double GeopsyGui::TimeWindowLayer::size ( ) const [inline]

{return _size;}

void GeopsyGui::TimeWindowLayer::xml_layerPolish ( XML_POLISH_ARGS ) [protected, virtual]

Reconstruct link to SignalLayer and identifies signal pointers.

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::GraphContentLayer::addReference(), GeopsyCore::SubSignalPool::at(), SciFigs::XMLSciFigs::data(), SciFigs::GraphContent::findLayer(), SciFigs::GraphContentLayer::graphContent(), GeopsyGui::SignalLayer::subPool(), and GeopsyGui::SignalLayer::xmlSignalLayerTag.

{
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data() && _xmlWindows) {
    _sig=qobject_cast<SignalLayer *>(graphContent()->findLayer(SignalLayer::xmlSignalLayerTag,
                                                               _xmlWindows->_signalLayerName));
    if(_sig) {
      const SubSignalPool * subPool=_sig->subPool();
      for(QMap<int, TimeWindowList *>::iterator it=_xmlWindows->_windows.begin(); it!=_xmlWindows->_windows.end(); it++) {
        int index=it.key();
        if(index>=0 && index<subPool->count()) {
          _windows.insert(subPool->at(index), it.value());
        } else {
          delete it.value();
        }
      }
      _windowOwner=true;
      _sig->addReference();
    } else {
      for(QMap<int, TimeWindowList *>::iterator it=_xmlWindows->_windows.begin(); it!=_xmlWindows->_windows.end(); it++) {
        delete it.value();
      }
    }
    delete _xmlWindows;
    _xmlWindows=0;
  }
}

XMLMember GeopsyGui::TimeWindowLayer::xml_member ( XML_MEMBER_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore (children and properties) support to your class.

From tag and map (with contains the attibute value) return a unique identifier under the format of a XMLMember. XMLMember is initialized with 3 types of contructors:

An integer: id number of a property
A XMLClass * : a child of this object identified by tag
Default constructor: error, unknow child or property

Map of attributes can be inspected in this way (can be achived also in xml_setProperty()):

    static const QString tmp("childrenName");
    XMLRestoreAttributeIterator it=map.find(tmp);
    if(it!=map.end()) {
      // found attribute "childrenName"
    }

If the map of attributes is not used:

    Q_UNUSED(attributes);
    if(tag=="x1") return XMLMember(0);
    else if(tag=="y1") return XMLMember(1);
    else if(tag=="x2") return XMLMember(2);
    else if(tag=="y2") return XMLMember(3);
    else return XMLMember(XMLMember::Unknown);

Arithmetic operations + and - apply to XMLMember to avoid confusion of property id numbers between inherited objects. Offset 3 corresponds to the number of properties defined in this object.

    if(tag=="anInteger") return XMLMember(0);
    else if(tag=="aString") return XMLMember(1);
    else if(tag=="aDouble") return XMLMember(2);
    return AbstractLine::xml_member(tag, attributes, context)+3;

For the arguments of this function use Macro XML_MEMBER_ARGS.

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), QGpCoreTools::endl(), SciFigs::XMLSciFigs::makeUp(), QGpCoreTools::tr(), and TRACE.

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    if(tag=="TimeWindowList") {
      const QString attID="signalIndex";
      XMLRestoreAttributeIterator it=attributes.find(attID);
      if(it!=attributes.end()) {
        int signalIndex=it.value().toInt();
        if(!_xmlWindows) {
          _xmlWindows=new XMLTimeWindowList;
        }
        TimeWindowList * w=new TimeWindowList;
        _xmlWindows->_windows.insert(signalIndex, w);
        return XMLMember(w);
      } else {
        App::stream() << tr("Missing signal index attribute") << endl;
        return XMLMember(XMLMember::Unknown);
      }
    } else if(tag=="signalLayerName") {
      return  XMLMember(0);
    }
  }
  if(scifigsContext->makeUp()) {
    if(tag=="size") {
      return  XMLMember(1);
    } else if(tag=="showColors") {
      return  XMLMember(2);
    }
  }
  return GraphContentLayer::xml_member(tag, attributes, context)+3;
}

bool GeopsyGui::TimeWindowLayer::xml_setProperty ( XML_SETPROPERTY_ARGS ) [protected, virtual]

Re-implement this function to offer XML restore properties support to your class.

From memberID set the corresponding property with value content. The map of attributes is given as a supplementary information (not useful in all cases).

For a general case:

  Q_UNUSED(attributes);
  double val=content.toDouble();
  switch (memberID) {
  case 0:
    _x1=val;
    return true;
  case 1:
    _y1=val;
    return true;
  case 2:
    _x2=val;
    return true;
  case 3:
    _y2=val;
    return true;
  default:
    return false;
  }

For classes inheriting other classes (see also xml_member())

  switch (memberID) {
  case 0:
    _anInteger=content.toString();
    return true;
  case 1:
    _aString=content.toInt();
    return true;
  case 2:
    _aDouble=content.toDouble();
    return true;
  default:
    return AbstractLine::xml_setProperty(memberID-3, map, content);

For the arguments of this function use Macro XML_SETPROPERTY_ARGS.

Reimplemented from SciFigs::GraphContentLayer.

References TRACE.

{
  TRACE;
  switch (memberID) {
  case 0:
    if(!_xmlWindows) {
      _xmlWindows=new XMLTimeWindowList;
    }
    _xmlWindows->_signalLayerName=content.toString();
    return true;
  case 1:
    _size=content.toDouble();
    return true;
  case 2:
    _showColors=content.toBool();
    return true;
  default:
    return GraphContentLayer::xml_setProperty(memberID-3, tag, attributes, content, context);
  }
}

virtual const QString& GeopsyGui::TimeWindowLayer::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::GraphContentLayer.

{return xmlTimeWindowLayerTag;}

void GeopsyGui::TimeWindowLayer::xml_writeChildren ( XML_WRITECHILDREN_ARGS ) const [protected, virtual]

Reimplemented from QGpCoreTools::XMLClass.

References QGpCoreTools::XMLSaveAttributes::add(), GeopsyCore::SubSignalPool::at(), GeopsyCore::SubSignalPool::count(), SciFigs::XMLSciFigs::data(), GeopsyGui::SignalLayer::subPool(), TRACE, and QGpCoreTools::XMLSaveAttributes::value().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(_sig && scifigsContext->data()) {
    const SubSignalPool * subPool=_sig->subPool();
    if(subPool) {
      XMLSaveAttributes att;
      att.add("signalIndex");
      QString& index=att.value(0);
      int n=subPool->count();
      QMap<Signal *, TimeWindowList *>::const_iterator it;
      for(int i=0; i<n; i++) {
        it=_windows.find(subPool->at(i));
        if(it!=_windows.end()) {
          index=QString::number(i);
          it.value()->xml_save(s, context, att);
        }
      }
    }
  }
}

void GeopsyGui::TimeWindowLayer::xml_writeProperties ( XML_WRITEPROPERTIES_ARGS ) const [protected, virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::XMLSciFigs::data(), SciFigs::GraphContentLayer::objectName, TRACE, and QGpCoreTools::XMLClass::writeProperty().

{
  TRACE;
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(_sig && scifigsContext->data()) {
    writeProperty(s, "signalLayerName", _sig->objectName());
  }
  writeProperty(s, "size", _size);
  writeProperty(s, "showColors", _showColors);
}

Member Data Documentation

const QString GeopsyGui::TimeWindowLayer::xmlTimeWindowLayerTag = "TimeWindowLayer" [static]

Property Documentation

bool GeopsyGui::TimeWindowLayer::showColors [read, write]

double GeopsyGui::TimeWindowLayer::size [read, write]

The documentation for this class was generated from the following files:

GeopsyGui/TimeWindowLayer.h
GeopsyGui/TimeWindowLayer.cpp
