SciFigs::IrregularGrid2DPlot Class Reference

A IrregularGrid2DPlot is a layer to plot a 2D grid whose cells have variable widths and heigths. More...

#include <IrregularGrid2DPlot.h>

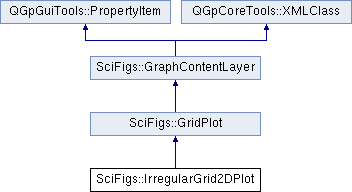

Inheritance diagram for SciFigs::IrregularGrid2DPlot:
SciFigs::GridPlot SciFigs::GraphContentLayer QGpGuiTools::PropertyItem QGpCoreTools::XMLClass

List of all members.

Signals

void clicked (int ix, int iy)

Public Member Functions

virtual Rect boundingRect () const
virtual QString coordinateTipInfo (const Point2D &p) const
const IrregularGrid2D & grid () const
 IrregularGrid2DPlot (AxisWindow *parent=0)
virtual bool mouseReleaseEvent (QMouseEvent *e, int)
void setGrid (const IrregularGrid2D &grid)
void setLinearPalette ()
void setLinearPalette (double minimum)
void setLinearPalette (double minimum, double maximum)
virtual bool trackRectangle (int, double rx1, double ry1, double rx2, double ry2, Qt::KeyboardModifiers eventState)
virtual const QString & xml_tagName () const
 ~IrregularGrid2DPlot ()

Static Public Attributes

static const QString xmlIrregularGrid2DPlotTag = "IrregularGrid2DPlot"

Protected Member Functions

virtual void paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const

Protected Attributes

IrregularGrid2D _grid

Detailed Description

A IrregularGrid2DPlot is a layer to plot a 2D grid whose cells have variable widths and heigths.

Constructor & Destructor Documentation

SciFigs::IrregularGrid2DPlot::IrregularGrid2DPlot ( AxisWindow *  parent = 0)

References TRACE.

                                                            :
    GridPlot(parent)
{
  TRACE;
  addActions();
}
SciFigs::IrregularGrid2DPlot::~IrregularGrid2DPlot ( )

References TRACE.

{
  TRACE;
}

Member Function Documentation

Rect SciFigs::IrregularGrid2DPlot::boundingRect ( ) const [virtual]

Implements SciFigs::GraphContentLayer.

References _grid, QGpCoreTools::IrregularGrid2D::bottom(), QGpCoreTools::IrregularGrid2D::left(), QGpCoreTools::IrregularGrid2D::nx(), QGpCoreTools::IrregularGrid2D::ny(), QGpCoreTools::IrregularGrid2D::right(), QGpCoreTools::Rect::setLimits(), QGpCoreTools::IrregularGrid2D::top(), and TRACE.

Referenced by TFAResults::compute(), HistogramWidget::setHistogram(), and MonoStation::AbstractSummary::setLimits().

{
  TRACE;
  Rect r;
  if(_grid.nx()>0 && _grid.ny()>0) {
    r.setLimits(_grid.left(0), _grid.bottom(0),
                 _grid.right(_grid.nx() - 1), _grid.top(_grid.ny() - 1) );
  }
  return r;
}
void SciFigs::IrregularGrid2DPlot::clicked ( int  ix,
int  iy
) [signal]

Referenced by mouseReleaseEvent().

QString SciFigs::IrregularGrid2DPlot::coordinateTipInfo ( const Point2D &  p) const [virtual]

Reimplemented from SciFigs::GraphContentLayer.

References _grid, SciFigs::GraphContentLayer::graph(), QGpCoreTools::IrregularGrid2D::indexOfX(), QGpCoreTools::IrregularGrid2D::indexOfY(), SciFigs::Axis::numberPrecision, SciFigs::Axis::numberType, QGpCoreTools::IrregularGrid2D::nx(), QGpCoreTools::IrregularGrid2D::ny(), str, TRACE, QGpCoreTools::IrregularGrid2D::value(), QGpCoreTools::Point2D::x(), SciFigs::AxisWindow::xAxis(), QGpCoreTools::Point2D::y(), and SciFigs::AxisWindow::yAxis().

{
  TRACE;
  if(_grid.nx()==0 || _grid.ny()==0) return QString::null;
  int ix=_grid.indexOfX(p.x());
  int iy=_grid.indexOfY(p.y());
  Axis * xAxis=graph()->xAxis();
  Axis * yAxis=graph()->yAxis();
  QString str("(%1 ; %2 ; %3)");
  str=str.arg(Number::toString(p.x(), xAxis->numberType(), xAxis->numberPrecision()+2) )
           .arg(Number::toString(p.y(), yAxis->numberType(), yAxis->numberPrecision()+2) );
  if(ix>-1 && ix<_grid.nx() && iy>-1 && iy<_grid.ny()) {
    return str.arg(_grid.value(ix, iy), 0, 'g');
  } else {
    return str.arg( "NaN");
  }
}
const IrregularGrid2D& SciFigs::IrregularGrid2DPlot::grid ( ) const [inline]

Referenced by HistogramWidget::fillGrid(), StatGridAnalyser::gridChanged(), StatGridAnalyser::on_freqScroll_valueChanged(), StatGridAnalyser::on_rejectAllBut_clicked(), StatGridAnalyser::on_rejectBut_clicked(), StatGridAnalyser::on_undoAllBut_clicked(), StatGridAnalyser::on_undoBut_clicked(), HVRotateStation::resultMaxAmplitude(), SpectrumRotateStation::resultMaxAmplitude(), HistogramWidget::select(), setGrid(), HistogramWidget::setHistogram(), and LinearFKActiveResults::stackGrids().

{return _grid;}
bool SciFigs::IrregularGrid2DPlot::mouseReleaseEvent ( QMouseEvent *  e,
int
) [virtual]

Reimplemented from SciFigs::GraphContentLayer.

References _grid, clicked(), SciFigs::GraphContentLayer::graphContent(), QGpCoreTools::IrregularGrid2D::indexOfX(), QGpCoreTools::IrregularGrid2D::indexOfY(), SciFigs::GraphContent::options(), SciFigs::GraphContentOptions::s2r2D(), TRACE, QGpCoreTools::Point2D::x(), and QGpCoreTools::Point2D::y().

{
  TRACE;
  if(e->buttons() & Qt::LeftButton) {
    Point2D p=graphContent()->options().s2r2D(e->pos());
    emit clicked(_grid.indexOfX(p.x()), _grid.indexOfY(p.y()) );
  }
  return true;
}
void SciFigs::IrregularGrid2DPlot::paintData ( const LayerPainterRequest &  lp,
QPainter &  p,
double  dotpercm
) const [protected, virtual]

Implements SciFigs::GraphContentLayer.

References _grid, SciFigs::GridPlot::drawGrid2DBlock(), SciFigs::GridPlot::drawGrid2DSmooth(), SciFigs::GridPlot::drawGridLines(), QGpCoreTools::IrregularGrid2D::nx(), QGpCoreTools::IrregularGrid2D::ny(), SciFigs::LayerPainterRequest::options(), SciFigs::GridPlot::palette(), SciFigs::IrregularGrid2DDraw::setCellLimits(), SciFigs::IrregularGrid2DDraw::setCellNodes(), SciFigs::IrregularGrid2DDraw::setVisibleArea(), SciFigs::GridPlot::showGrid(), SciFigs::GridPlot::smooth(), and TRACE.

{
  TRACE;
  if(_grid.nx()<2 || _grid.ny()<2) return;
  const GraphContentOptions& gc=lp.options();
  IrregularGrid2DDraw d;
  // Get the limit of visible area in terms of grid indexes
  d.setVisibleArea(_grid, gc);
  // Create two int vectors containing the x and y of nodes (centers of blocks)
  d.setCellNodes(_grid, gc);

  if(smooth()) {
    if(showGrid()) d.setCellLimits();
    drawGrid2DSmooth(_grid, palette(), lp, p, d);
  } else {
    d.setCellLimits();
    drawGrid2DBlock(_grid, palette(), lp, p, d);
  }
  if(showGrid()) {
    drawGridLines(p, d);
  }
}
void SciFigs::IrregularGrid2DPlot::setGrid ( const IrregularGrid2D &  grid)

Set current grid.

References _grid, grid(), and TRACE.

Referenced by TFAResults::compute(), createGrid(), HistogramWidget::fillGrid(), HistogramWidget::initGrid(), SpacSelector::inverse(), HistogramWidget::setHistogram(), MonoStation::AbstractSummary::setSpectrumGridValues(), LinearFKActiveResults::stackGrids(), HVRotateStation::start(), and SpectrumRotateStation::start().

{
  TRACE;
  LayerLocker ll(this);
  _grid=grid;
}
void SciFigs::IrregularGrid2DPlot::setLinearPalette ( )

Adjust palette to grid minimum and maximum

References _grid, QGpCoreTools::IrregularGrid2D::maximumValue(), QGpCoreTools::IrregularGrid2D::minimumValue(), and TRACE.

Referenced by TFAResults::compute(), createGrid(), MonoStation::AbstractSummary::setLimits(), setLinearPalette(), and LinearFKActiveResults::stackGrids().

{
  TRACE;
  setLinearPalette(_grid.minimumValue(), _grid.maximumValue());
}
void SciFigs::IrregularGrid2DPlot::setLinearPalette ( double  minimum)

Adjust palette to maximum only

References _grid, QGpCoreTools::IrregularGrid2D::maximumValue(), setLinearPalette(), and TRACE.

{
  TRACE;
  setLinearPalette(minimum, _grid.maximumValue());
}
void SciFigs::IrregularGrid2DPlot::setLinearPalette ( double  minVal,
double  maxVal
) [inline]

Set a linear scale on palette. Safe for painting threads. For other modification of the palette see setPalette().

Reimplemented from SciFigs::GridPlot.

References SciFigs::GridPlot::setLinearPalette().

{GridPlot::setLinearPalette(minimum, maximum);}
bool SciFigs::IrregularGrid2DPlot::trackRectangle ( int  ,
double  rx1,
double  ry1,
double  rx2,
double  ry2,
Qt::KeyboardModifiers  eventState
) [virtual]

Reimplemented from SciFigs::GraphContentLayer.

References SciFigs::GridPlot::_fillType, SciFigs::GridPlot::_fillValue, _grid, QGpCoreTools::IrregularGrid2D::coordinates(), SciFigs::GraphContent::deepUpdate(), SciFigs::GraphContentLayer::graphContent(), QGpCoreTools::Rect::includes(), QGpCoreTools::IrregularGrid2D::nx(), QGpCoreTools::IrregularGrid2D::ny(), TRACE, and QGpCoreTools::IrregularGrid2D::valuePointer().

{
  TRACE;
  Rect r(rx1, ry1, rx2, ry2);
  int nx=_grid.nx(), ny=_grid.ny();
  for(int iy=0;iy < ny;iy++ ) {
    for(int ix=0;ix < nx;ix++ ) {
      Point2D p=_grid.coordinates(ix, iy);
      if(r.includes(p, _fillType) )
        * _grid.valuePointer(ix, iy)=_fillValue;
    }
  }
  graphContent()->deepUpdate();
  return true;
}
virtual const QString& SciFigs::IrregularGrid2DPlot::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::GridPlot.

{return xmlIrregularGrid2DPlotTag;}

Member Data Documentation

IrregularGrid2D SciFigs::IrregularGrid2DPlot::_grid [protected]

Referenced by boundingRect(), coordinateTipInfo(), mouseReleaseEvent(), paintData(), setGrid(), setLinearPalette(), and trackRectangle().

const QString SciFigs::IrregularGrid2DPlot::xmlIrregularGrid2DPlotTag = "IrregularGrid2DPlot" [static]

Referenced by SciFigs::LiveGridLayer::xml_tagName().

The documentation for this class was generated from the following files:
