SciFigs::LiveGridLayer Class Reference

#include <LiveGridLayer.h>

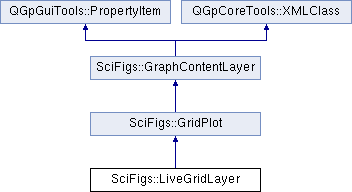

Inheritance diagram for SciFigs::LiveGridLayer:
SciFigs::GridPlot SciFigs::GraphContentLayer QGpGuiTools::PropertyItem QGpCoreTools::XMLClass

List of all members.

Signals

void paletteAdjusted (const ColorPalette &pal) const

Public Member Functions

virtual void addProperties (PropertyProxy *pp)
bool autoAdjustPalette () const
virtual Rect boundingRect () const
bool forceMaximumValue () const
bool forceMinimumValue () const
const AbstractFunction2 * function () const
virtual bool hasProperties ()
 LiveGridLayer (AxisWindow *parent)
double maximumValue () const
double minimumValue () const
virtual void properties (PropertyWidget *w) const
virtual void removeProperties (PropertyProxy *pp)
int sampling () const
SamplingParameters::Type scale () const
void setAutoAdjustPalette (bool a)
void setForceMaximumValue (bool f)
void setForceMinimumValue (bool f)
void setFunction (AbstractFunction2 *f)
void setMaximumValue (double m)
void setMinimumValue (double m)
virtual void setProperty (uint wid, int pid, QVariant val)
void setSampling (int s)
void setScale (SamplingParameters::Type s)
void setSmallestDetail (double d)
int smallestDetail () const
AbstractFunction2 * takeFunction ()
virtual const QString & xml_tagName () const
 ~LiveGridLayer ()

Protected Member Functions

virtual void paintData (const LayerPainterRequest &lp, QPainter &p, double dotpercm) const
virtual void xml_writeChildren (XML_WRITECHILDREN_ARGS) const

Protected Attributes

AbstractFunction2 * _function
int _sampling
double _smallestDetail

Constructor & Destructor Documentation

SciFigs::LiveGridLayer::LiveGridLayer ( AxisWindow *  parent)

References _function, _sampling, _smallestDetail, paletteAdjusted(), and TRACE.

    : GridPlot(parent)
{
  TRACE;
  _function=0;
  _sampling=1;
  _autoAdjustPalette=true;
  _forceMinimumValue=true;
  _forceMaximumValue=false;
  _scale=SamplingParameters::Linear;
  _minimumValue=0.0;
  _maximumValue=0.0;
  _smallestDetail=1e99;
  _tab=0;
  connect(this, SIGNAL(paletteAdjusted(const ColorPalette&)),
          this, SLOT(showAdjustedPalette(const ColorPalette&)), Qt::QueuedConnection);
}
SciFigs::LiveGridLayer::~LiveGridLayer ( )

References _function, and TRACE.

{
  TRACE;
  delete _function;
}

Member Function Documentation

void SciFigs::LiveGridLayer::addProperties ( PropertyProxy *  pp) [virtual]

Setup property editor

Reimplemented from SciFigs::GridPlot.

References QGpGuiTools::PropertyProxy::addReference(), QGpGuiTools::PropertyProxy::addTab(), QGpGuiTools::PropertyProxy::setCurrentTab(), QGpCoreTools::tr(), TRACE, and w.

{
  TRACE;
  GridPlot::addProperties(pp);
  if(pp->setCurrentTab(_tab)) {
    pp->addReference(this);
  } else {
    LiveGridLayerProperties * w=new LiveGridLayerProperties;
    pp->addTab(_tab, tr("Palette update"), w, this);
  }
}
bool SciFigs::LiveGridLayer::autoAdjustPalette ( ) const [inline]

Referenced by properties().

{return _autoAdjustPalette;}
Rect SciFigs::LiveGridLayer::boundingRect ( ) const [virtual]

Implements SciFigs::GraphContentLayer.

References TRACE.

{
  TRACE;
  return Rect();
}
bool SciFigs::LiveGridLayer::forceMaximumValue ( ) const [inline]

Referenced by properties().

{return _forceMaximumValue;}
bool SciFigs::LiveGridLayer::forceMinimumValue ( ) const [inline]

Referenced by properties().

{return _forceMinimumValue;}
const AbstractFunction2* SciFigs::LiveGridLayer::function ( ) const [inline]
{return _function;}
virtual bool SciFigs::LiveGridLayer::hasProperties ( ) [inline, virtual]

Reimplemented from SciFigs::GridPlot.

{return true;}
double SciFigs::LiveGridLayer::maximumValue ( ) const [inline]

Referenced by properties().

{return _maximumValue;}
double SciFigs::LiveGridLayer::minimumValue ( ) const [inline]

Referenced by properties().

{return _minimumValue;}
void SciFigs::LiveGridLayer::paintData ( const LayerPainterRequest &  lp,
QPainter &  p,
double  dotpercm
) const [protected, virtual]

Implements SciFigs::GraphContentLayer.

References _function, SciFigs::GridPlot::drawGrid2DBlock(), SciFigs::GridPlot::drawGrid2DSmooth(), SciFigs::LayerPainterRequest::options(), SciFigs::GridPlot::palette(), paletteAdjusted(), SciFigs::IrregularGrid2DDraw::setCellLimits(), SciFigs::IrregularGrid2DDraw::setCellNodes(), SciFigs::IrregularGrid2DDraw::setVisibleArea(), SciFigs::LayerPainterRequest::size(), SciFigs::GridPlot::smooth(), and TRACE.

{
  TRACE;
  if(!_function) return;
  IrregularGrid2D grid=calculateGrid(lp.size(), lp.options(), &lp);
  // Make a copy of current palette (mandatory for multi-thread, palette are implicitly shared
  // objects so deep copy probably is not occuring right now, only upon user request for modification)
  ColorPalette pal=palette();
  if(_autoAdjustPalette) {
    adjustPalette(grid, pal);
    emit paletteAdjusted(pal);
  }
  const GraphContentOptions& gc=lp.options();
  IrregularGrid2DDraw d;
  // Get the limit of visible area in terms of grid indexes
  d.setVisibleArea(grid, gc);
  // Create two int vectors containing the x and y of nodes (centers of blocks)
  d.setCellNodes(grid, gc);

  if(smooth()) {
    drawGrid2DSmooth(grid, pal, lp, p, d);
  } else {
    d.setCellLimits();
    drawGrid2DBlock(grid, pal, lp, p, d);
  }
  /*GraphContent * gc=graphContent();
  QImage im(w, h, QImage::Format_ARGB32);
  uint * imPtr=(uint * ) im.bits() + w + 1;
  double y;
  int h1=h-1;
  int w1=w-1;
  int iy;
  for(iy=1;iy<h1; iy+=3) {
    y=gc->ys2r(iy);
    fillRow(gc, imPtr, y, w, w1);
    imPtr+=2*w;
  }
  // Add last pixel rows
  switch(iy-h1) {
  case 0:  // two rows are missing
    y=gc->xs2r(iy);
    fillRowSup2(gc, imPtr, y, w, w1);
    break;
  case 1:  // one row is missing
    y=gc->xs2r(iy);
    fillRowSup1(gc, imPtr, y, w, w1);
    break;
  default: // h is a multiple of 3
    break;
  }
  p.drawImage(0, 0, im);*/
}
void SciFigs::LiveGridLayer::paletteAdjusted ( const ColorPalette &  pal) const [signal]

Referenced by LiveGridLayer(), and paintData().

void SciFigs::LiveGridLayer::properties ( PropertyWidget *  w) const [virtual]

Reimplemented from SciFigs::GridPlot.

References SciFigs::LiveGridLayerProperties::AutoAdjustPalette, autoAdjustPalette(), forceMaximumValue(), SciFigs::LiveGridLayerProperties::ForceMaxValue, forceMinimumValue(), SciFigs::LiveGridLayerProperties::ForceMinValue, QGpGuiTools::PropertyWidget::id(), SciFigs::LiveGridLayerProperties::LinearScale, SciFigs::LiveGridLayerProperties::LogScale, maximumValue(), SciFigs::LiveGridLayerProperties::MaxValue, minimumValue(), SciFigs::LiveGridLayerProperties::MinValue, scale(), QGpGuiTools::PropertyWidget::setValue(), and TRACE.

{
  TRACE;
  if(w->id()==_tab) {
    w->setValue(LiveGridLayerProperties::AutoAdjustPalette, autoAdjustPalette());
    w->setValue(LiveGridLayerProperties::LinearScale, scale()==SamplingParameters::Linear);
    w->setValue(LiveGridLayerProperties::LogScale, scale()==SamplingParameters::Log);
    w->setValue(LiveGridLayerProperties::ForceMinValue, forceMinimumValue());
    w->setValue(LiveGridLayerProperties::ForceMaxValue, forceMaximumValue());
    w->setValue(LiveGridLayerProperties::MinValue, minimumValue());
    w->setValue(LiveGridLayerProperties::MaxValue, maximumValue());
  } else {
    GridPlot::properties(w);
  }
}
void SciFigs::LiveGridLayer::removeProperties ( PropertyProxy *  pp) [virtual]

Clean property editor

Reimplemented from SciFigs::GridPlot.

References QGpGuiTools::PropertyProxy::removeTab(), and TRACE.

{
  TRACE;
  pp->removeTab(_tab, this);
}
int SciFigs::LiveGridLayer::sampling ( ) const [inline]
{return _sampling;}
SamplingParameters::Type SciFigs::LiveGridLayer::scale ( ) const [inline]

Referenced by properties().

{return _scale;}
void SciFigs::LiveGridLayer::setAutoAdjustPalette ( bool  a) [inline]

Referenced by ArrayGui::ArrayResponse::createObjects(), and setProperty().

{_autoAdjustPalette=a;}
void SciFigs::LiveGridLayer::setForceMaximumValue ( bool  f) [inline]

Referenced by DispersionGridThread::initResultsGraphs(), and setProperty().

{_forceMaximumValue=f;}
void SciFigs::LiveGridLayer::setForceMinimumValue ( bool  f) [inline]

Referenced by DispersionGridThread::initResultsGraphs(), and setProperty().

{_forceMinimumValue=f;}
void SciFigs::LiveGridLayer::setFunction ( AbstractFunction2 *  f)

References _function, and TRACE.

Referenced by Simulator::init(), ArrayGui::ArrayResponse::setArray(), HRFKTimeWindows::setComponent(), FKTimeWindows::setComponent(), FKTimeWindows::setCurrentWindow(), and FKTimeWindows::setParameters().

{
  TRACE;
  LayerLocker ll(this);
  delete _function;
  _function=f;
}
void SciFigs::LiveGridLayer::setMaximumValue ( double  m) [inline]

Referenced by DispersionGridThread::initResultsGraphs(), and setProperty().

{_maximumValue=m;}
void SciFigs::LiveGridLayer::setMinimumValue ( double  m) [inline]

Referenced by DispersionGridThread::initResultsGraphs(), and setProperty().

{_minimumValue=m;}
void SciFigs::LiveGridLayer::setProperty ( uint  wid,
int  pid,
QVariant  val
) [virtual]

Reimplemented from SciFigs::GridPlot.

References SciFigs::LiveGridLayerProperties::AutoAdjustPalette, SciFigs::LiveGridLayerProperties::ForceMaxValue, SciFigs::LiveGridLayerProperties::ForceMinValue, SciFigs::LiveGridLayerProperties::LinearScale, SciFigs::LiveGridLayerProperties::LogScale, SciFigs::LiveGridLayerProperties::MaxValue, SciFigs::LiveGridLayerProperties::MinValue, setAutoAdjustPalette(), setForceMaximumValue(), setForceMinimumValue(), setMaximumValue(), setMinimumValue(), setScale(), and TRACE.

{
  TRACE;
  if(wid==_tab) {
    switch(pid) {
    case LiveGridLayerProperties::AutoAdjustPalette:
      setAutoAdjustPalette(val.toBool());
      break;
    case LiveGridLayerProperties::LinearScale:
      setScale(val.toBool() ? SamplingParameters::Linear : SamplingParameters::Log);
      break;
    case LiveGridLayerProperties::LogScale:
      setScale(val.toBool() ? SamplingParameters::Log : SamplingParameters::Linear);
      break;
    case LiveGridLayerProperties::ForceMinValue:
      setForceMinimumValue(val.toBool());
      break;
    case LiveGridLayerProperties::ForceMaxValue:
      setForceMaximumValue(val.toBool());
      break;
    case LiveGridLayerProperties::MinValue:
      setMinimumValue(val.toDouble());
      break;
    case LiveGridLayerProperties::MaxValue:
      setMaximumValue(val.toDouble());
      break;
    }
  } else {
    GridPlot::setProperty(wid, pid, val);
  }
}
void SciFigs::LiveGridLayer::setSampling ( int  s) [inline]

Referenced by ArrayGui::ArrayResponse::createObjects(), FKTimeWindows::FKTimeWindows(), and Simulator::init().

{_sampling=s;}
void SciFigs::LiveGridLayer::setScale ( SamplingParameters::Type  s) [inline]

Referenced by setProperty().

{_scale=s;}
void SciFigs::LiveGridLayer::setSmallestDetail ( double  d) [inline]
{_smallestDetail=d;}
int SciFigs::LiveGridLayer::smallestDetail ( ) const [inline]
{return _smallestDetail;}
AbstractFunction2 * SciFigs::LiveGridLayer::takeFunction ( )

References _function, and TRACE.

Referenced by FKTimeWindows::setCurrentWindow().

{
  TRACE;
  LayerLocker ll(this);
  AbstractFunction2 * f=_function;
  _function=0;
  return f;
}
virtual const QString& SciFigs::LiveGridLayer::xml_tagName ( ) const [inline, virtual]

Reimplemented from SciFigs::GridPlot.

References SciFigs::IrregularGrid2DPlot::xmlIrregularGrid2DPlotTag.

{return IrregularGrid2DPlot::xmlIrregularGrid2DPlotTag;}
void SciFigs::LiveGridLayer::xml_writeChildren ( XML_WRITECHILDREN_ARGS  ) const [protected, virtual]

Reimplemented from SciFigs::GridPlot.

References SciFigs::XMLSciFigs::data(), SciFigs::GraphContentLayer::graphContent(), TRACE, and QGpCoreTools::XMLClass::xml_save().

{
  TRACE;
  // Calculate grid with current plot limits
  IrregularGrid2D grid=calculateGrid(graphContent()->size(), graphContent()->options());
  XMLSciFigs * scifigsContext=static_cast<XMLSciFigs *>(context);
  if(scifigsContext->data()) {
    grid.xml_save(s, context);
  }
  GridPlot::xml_writeChildren(s, context);
}

Member Data Documentation

AbstractFunction2* SciFigs::LiveGridLayer::_function [protected]

Referenced by LiveGridLayer(), paintData(), setFunction(), takeFunction(), and ~LiveGridLayer().

int SciFigs::LiveGridLayer::_sampling [protected]

Referenced by LiveGridLayer().

double SciFigs::LiveGridLayer::_smallestDetail [protected]

Referenced by LiveGridLayer().

The documentation for this class was generated from the following files:
